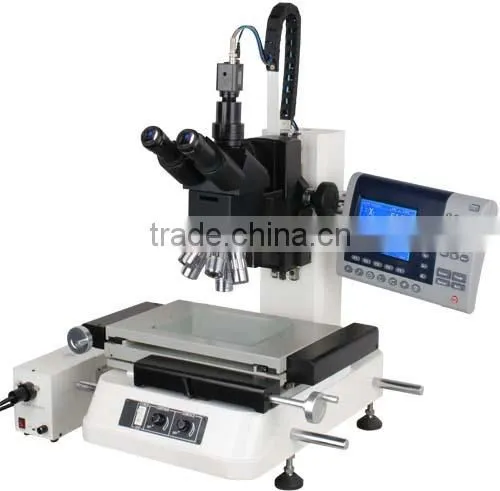

STM 2010 Measuring Microscope

Name: STM 2010 Measuring Microscope
Brand: Jaten
SKU: 106649385
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Jaten

Model Number:

STM 2010

Shanghai Houstec Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Jaten

Model Number STM 2010

Theory Video Microscope

Drawtube Binocular

Product Features:

l High-power Metallurgical Measuring System

l Non-contact Observation & Measuring

l Multi-view Rotate Stage Objectives

l Widely used for crystal,integrated circuit examination and precision measurements.

Specifications:

Model	STM2010	STM2515
Metal Stage Size(mm)	404x228	450X280
Glass Stage Size(mm)	260x160	306X196
Working Stage Size(mm)	200x100	250x150
Z-axis Travel Range(mm)	100(For Focusing)	100(For Focusing)
X,Y,Z-axis Accuracy	≤(3+L/200)μm
Resolution	0.0005mm
Net Weight	110kg	120kg
Dimensions	530x540x850 mm	530x540x850 mm
Eyepiece	High-eye-point and wide-field Eyepiece:SWF10/22
Measuring Device	Digital Readout DP300
Objectives	Plan Apo Objectives:2X/0.055
	Plan Apo Objectives:5X/0.14
	Plan Apo Objectives:10X/0.28
	Plan Apo Objectives:50X/0.42
Microscope System	Infinitive optical system 50X-500X
	Tube Lens focal length:200mm
	Trinocular microscope head,Inclined at 30°
	Interpupillary distance:55-75mm
	Long Working Diatance
	Quintuple Nosepiece
Digital Magnification System	Coaxial optical fiber light-source Sony1/2 “CCD Camera MC3 1XCCD adapter
Objective.Magnification	1x(standard), 2x(optional)
Digital Measuring System	Digital Magnification:170X-1700X
	Dell PC with 17” quadrate monitor
	Digital Readout DP300
	3D English Software Quick Measuring 3.0
