JT3020A Measuring Profile Projector

Name: JT3020A Measuring Profile Projector
Brand: Jaten
SKU: 106648845
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Jaten

Model Number:

JT3020A

Shanghai Houstec Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai /Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Jaten

Model Number JT3020A

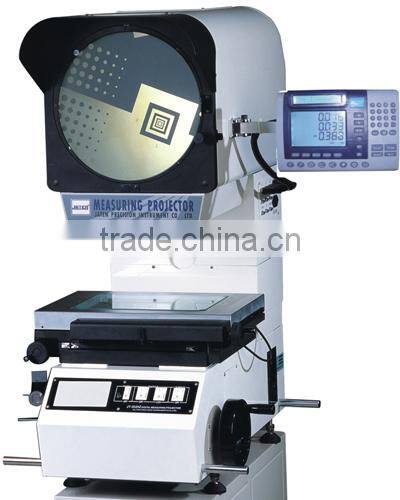

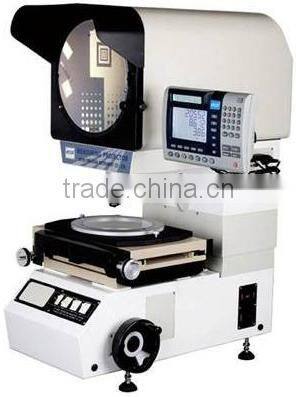

JT3020A 300mm Digital Vertical Measuring Profile Projector

Description:

300mm diameter screen with digital protractor;
Projector body lifting system to focus;
Precision movement work-stage;
Geometric multifunction data processing system upgrade to DRO DP300;
Built-in Mini-printer;
Available 10x,20x,50x,100x objective, rotary table, foot-switch, edge detector, etc.

Specifications:

Reverse Image	JT3015A	JT3020A	JT3025A
Obverse Image	JT3015AZ	JT3020AZ	JT3025AZ
Metal Stage Size	354X228mm	450 x 280mm	450X280mm
Glass Stage Size	210 x 160mm	306 x 196mm	306x196mm
Stage Travel: X and Y-axis	150 x 100mm	200 x 100mm	250X150MM
Stage Travel: Z-axis	100mm (for focusing)	100mm (for focusing)	100mm(for focusing)
Accuracy	≤3+L/200(um)
Resolution of X and Y-scale	0.0005 mm
Screen	Diameter :Ø312mm,Effective Range ≥ Ø300(with “* ” Reticle)
Screen	Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°
Digital Readout	DP 300 (Multifunctional Data Processing System
Illumination	Surface and Contour Illumination:24v/150w halogen lamp (adjustable)
Cooling System	Forced Cooling (3-axis-fans)
Power Supply	AC110V/60Hz; 220V/50Hz, 650W
Dimension (D×W×H)	760 x 530 x 1100mm	760 x 530 x 1100mm	760 x 530 x 1100mm
Packing Dimension (L×W×H)	1540 x 790 x 1500mm	1540 x 790 x 1500mm	1540 x 790 x 1500mm
Gross/Net Weight	230/210Kg	260/240Kg	290/260kg
