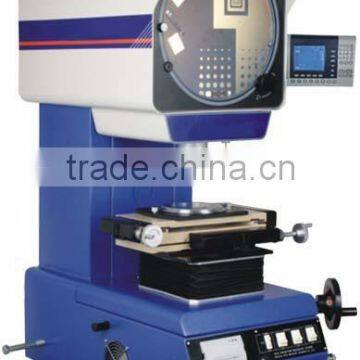

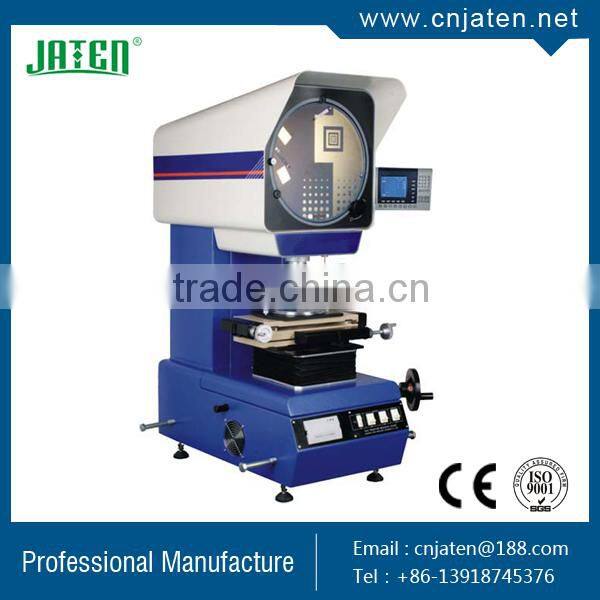

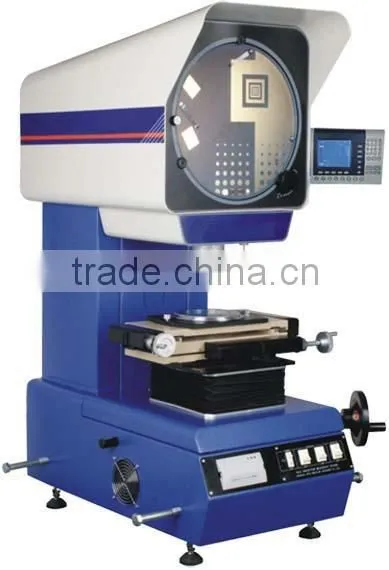

VB12-2010 300mm Digital Vertical Profile Projector

Name: VB12-2010 300mm Digital Vertical Profile Projector
Brand: Jaten
SKU: 106648671
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Jaten

Model Number:

VB12-2010

Shanghai Houstec Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Jaten

Model Number VB12-2010

VB12-2010 300mm Digital Vertical Profile Projector

VB12 Product Features :

l 300mm diameter screen with digital protractor;

l Working stage lifting system to focus;

l Precision movement work-stage;

l Halogen profile and surface illumination adjustable;

l Geometric multifunction data processing system upgrade to DRO DP300;

l Built-in Mini-printer;

l Available 10x,20x,50x,100x objective, rotary table, foot-switch, etc.

Specifications:

Reverse Image	VB12-1550	VB12-2010
Obverse Image	VB12-1550Z	VB12-2010Z
Metal Stage Size	340x152 mm	350x170 mm
Glass Stage Size	196x96 mm	246x120 mm
Stage Travel: X and Y-axis	150x50 mm	200 x 100 mm
Stage Travel: Z-axis	100mm (for focusing)
Accuracy	≤3+L/200(um)
Resolution of X and Y-scale	0.0005 mm
Screen	Diameter :Ø330mm,Effective Range ≥ Ø300(with “* ” Reticle)
	Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°
Digital Readout	DP 300Multifunctional Data Processing System/RS232
Instrument Illumination	24v/150w halogen lamp (adjustable)
Cooling System	Forced Cooling (3-axis-fans)
Power Supply	AC110V/60Hz; 220V/50Hz, 400W
Dimension (D×W×H)	785x 575 x 1136mm
Packing Dimension (L×W×H)	1540 x 790 x 1500mm
Gross/Net Weight	260/220Kg

Standard Delivery:

Optional accessories:
