wholesale positive light Luminous evenly 230v 18w led downlight
Major Specification
Following form will show you all the information of LED down light in detail.
Item |
Specification |
Item type |
Led down light |
Model |
XC-TTD-6F |
LED Qty |
5730 36pcs |
Lamp Power(w) |
18W |
Working Lifetime(Hour) |
50000H |
Work temperature(℃) |
-20~50 |
Input Voltage(V) |
85-260V 50/60Hz |
Lamp Luminous Efficiency(lm/w) |
>85LM/W |
Color Temperature(CCT) |
3000K/4500K/6500K |
CRI (Ra>) |
80 |
Surface color |
white / Black |
IP rating |
20 |
install |
Embeded |
Fixture Material |
Aluminum |
Features |
comply with safety regulations;The technology of straight to shine; Reasonable light distribution ;High light efficiency |
Application |
led down light replace the traditional downlight which can be widely used in offices, shops, restaurants, schools, hospitals, airports, commercial and household lighting etc. |
Warranty |
3 years |
Place of Origin |
GuangDong China |
Dimension(mm) |
190mm |
Cut Size |
170mm |
Certification |
CE,RoHS |
Package Dimensions(two pieces included) |
240mm*35mm*240mm |
Carton Dimensions |
390mm*250mm*490mm |
Qty/ctns(pcs) |
20 |

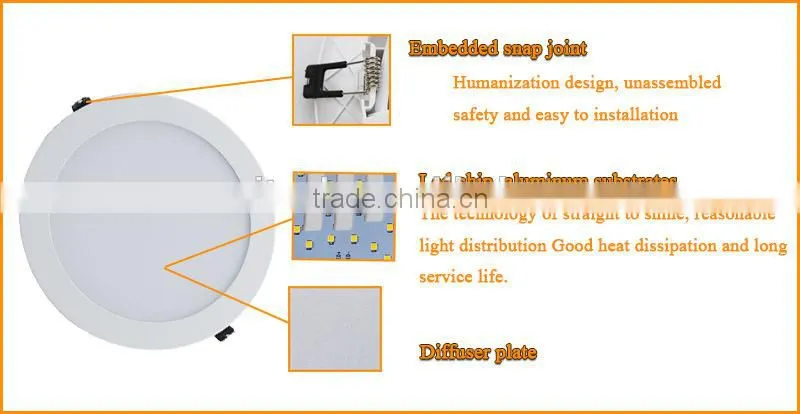

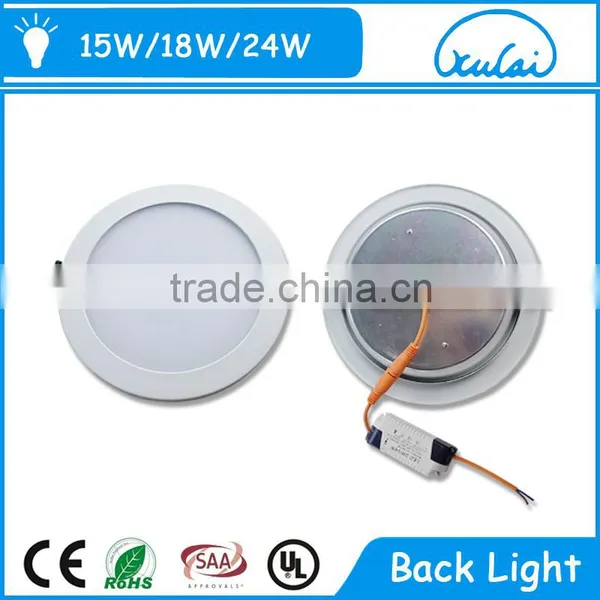

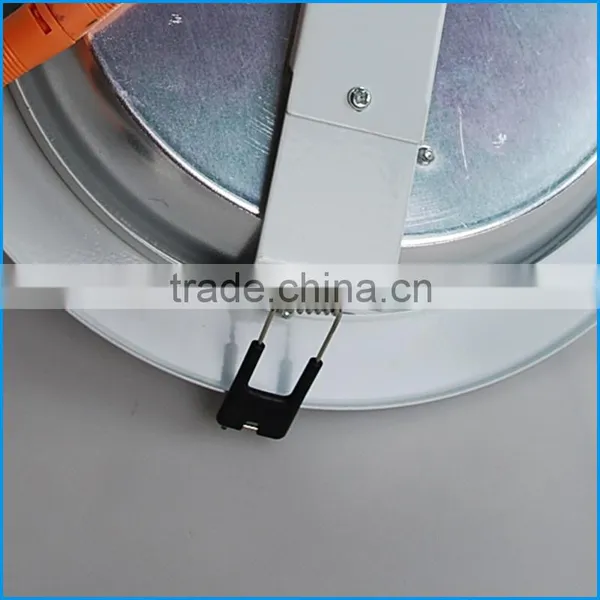

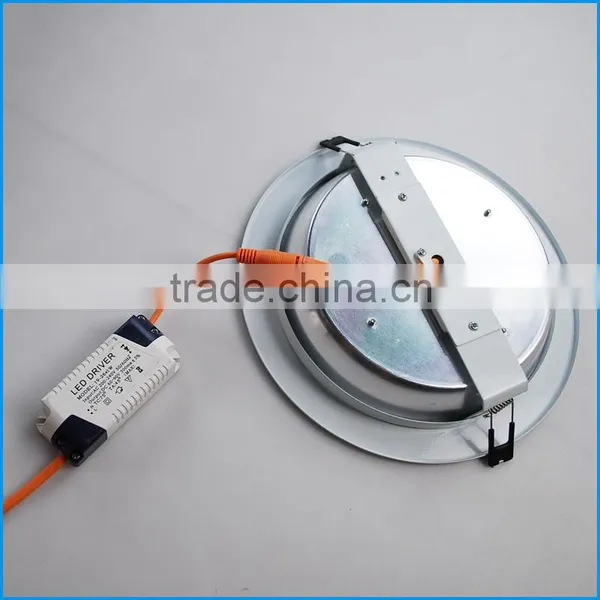

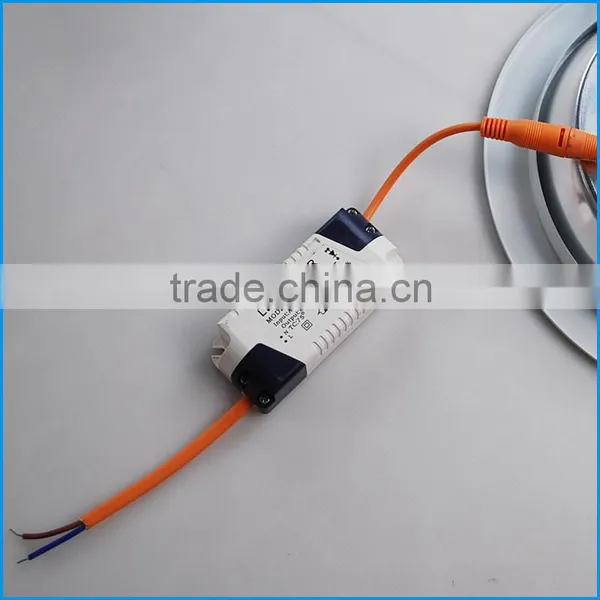

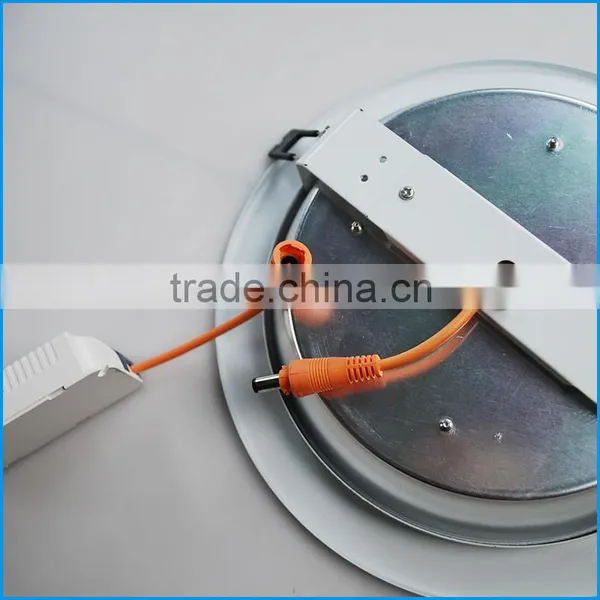

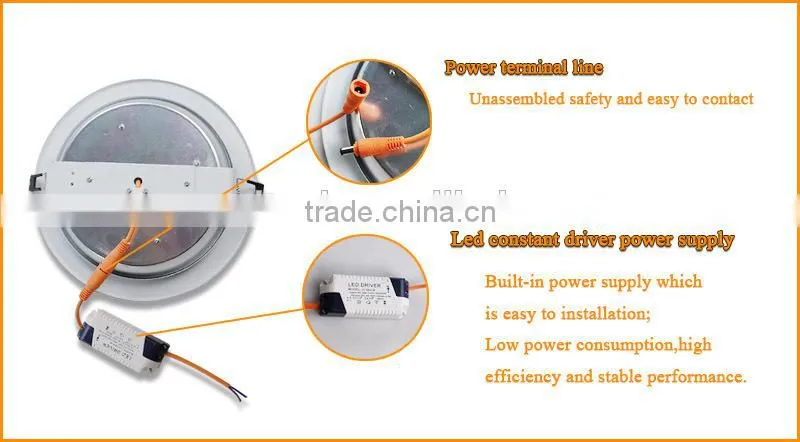

Detail Pictures for LED Down Light

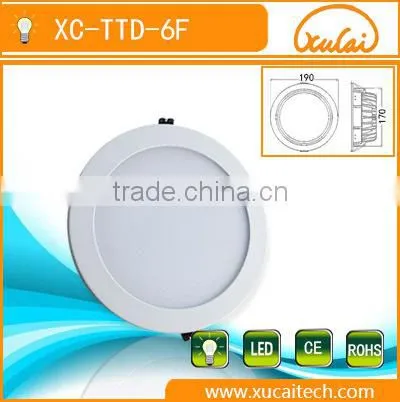

From the dimension drawing can know led down light size and appearance,
then will show you more details about other aspects.

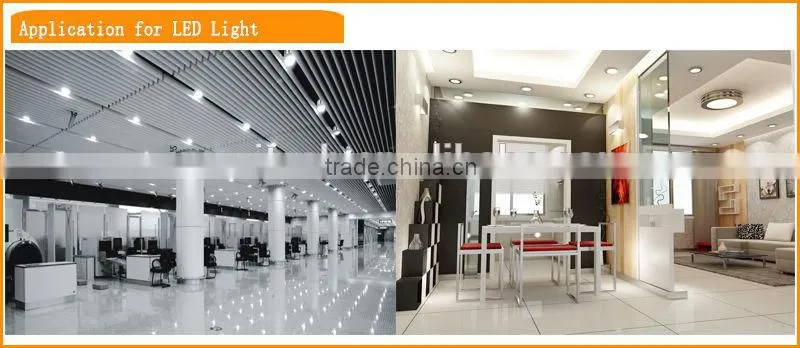

Application for LED Down Light
Led down light can use like the follow display, brightness, beauty,and comfort.

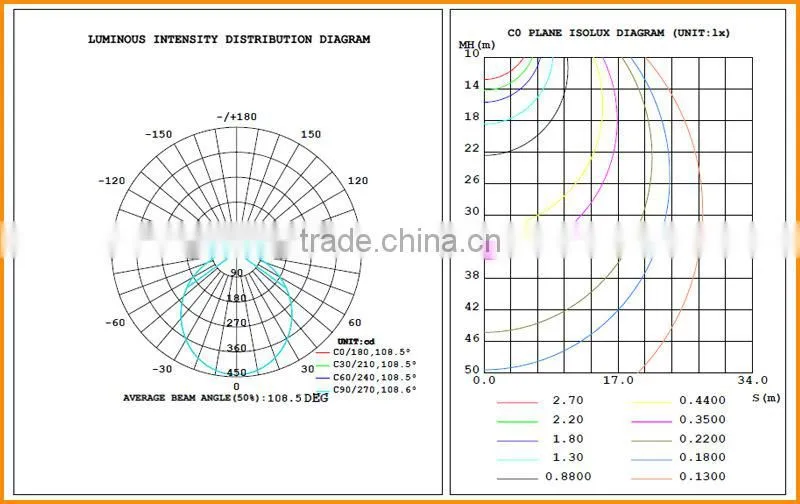

luminous intensity distribution diagram
Testing Report
Product packaging process
First, check whether the appearance of the product problems and flaws. Production sector in question returned checks.
Second, using the test tool, test products again.
Third, cleaning products.
Fourth, according to customer requirements packaging content packaging.
Fifth, inspect the shipping carton intact.
Sixth, into finished goods warehouse, waiting for shipment.
Seventh, before shipment, sampling again.
Shenzhen xucai Technology Co.,Ltd was established in 2002 which is specialized in OEM/ODM electronics technology company. It is committed to the research, development, production and sales of LED products, on the premise of high quality, provide high quality service. We are totally customers-oriented.
In the field of LED lighting, Xucai has rich experiences. The main products are LED home light and LED professional light for abroad to provide modern home, office or commercial lighting, such as led panel light, led oyster lamp, led linear pendant light, led down light, led ceiling spot light, energy-saving bulbs, bean gall light, led track light,etc.
our workshop
Certificate
Trade Assurance
1.Your inquiry related to our products or prices will be replied within 24hrs.
2. Well-trained and experienced staffs to help you locate the products in your best interest.
3. OEM & ODM production available.
4. 3 year warranty.
5. Protection of your sales area, design and all your private information, if any.
1,Is there cheap shipping cost to import to our country?
Yes, we will arrange the shipping according your order, and you could choose the most convenient and cost effective delivery for you.
2,Do you have after-sale service?
Of course. We replace with new lights or send replacement components free of charger for those broken lights under warranty time. We would pay the freight for once.
3,Are you a manufacturer or trader?
We are the manufacturer that produce ourselves goods. We have our own factory in FoShan and the own research team.
4,How can I visit your factory?
we would take you to visit the factory when you have the require.
