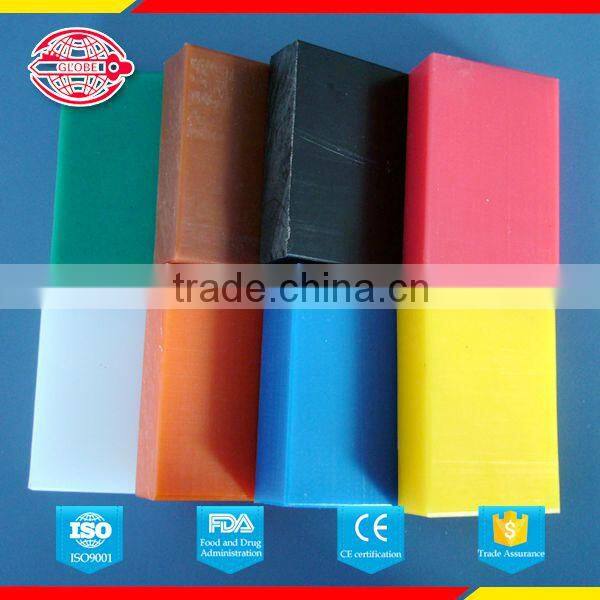

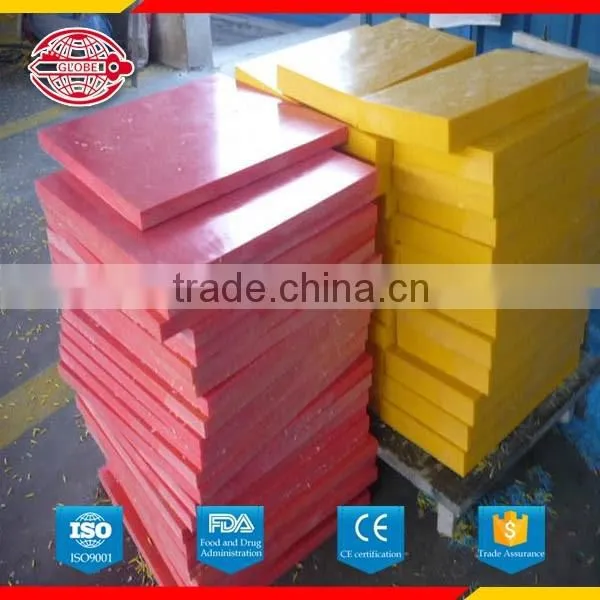

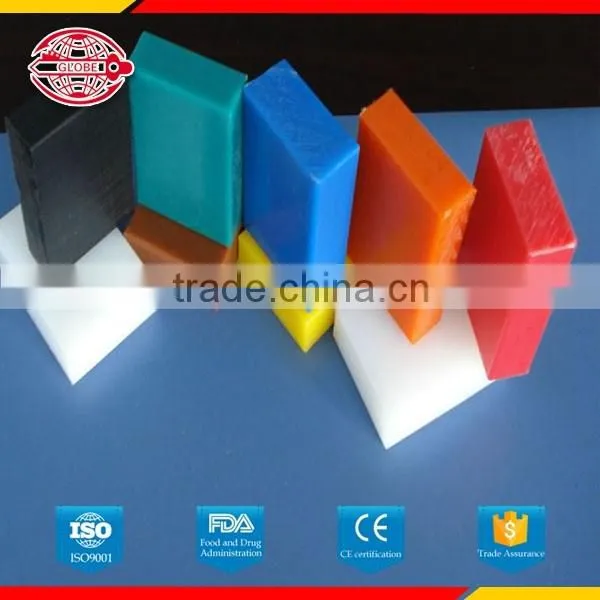

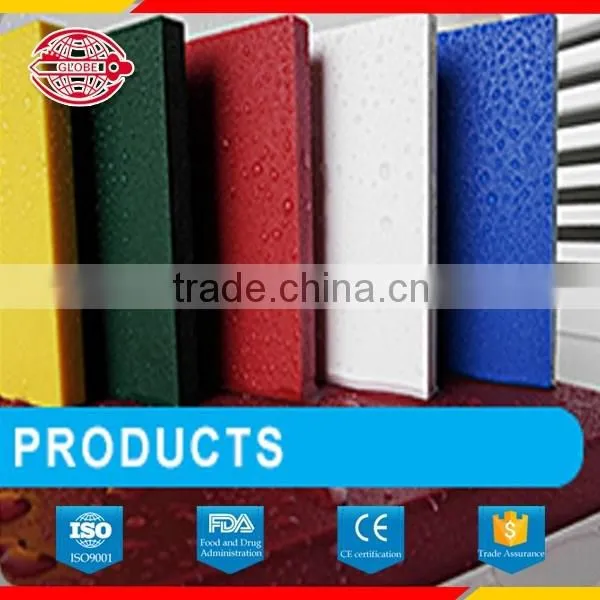

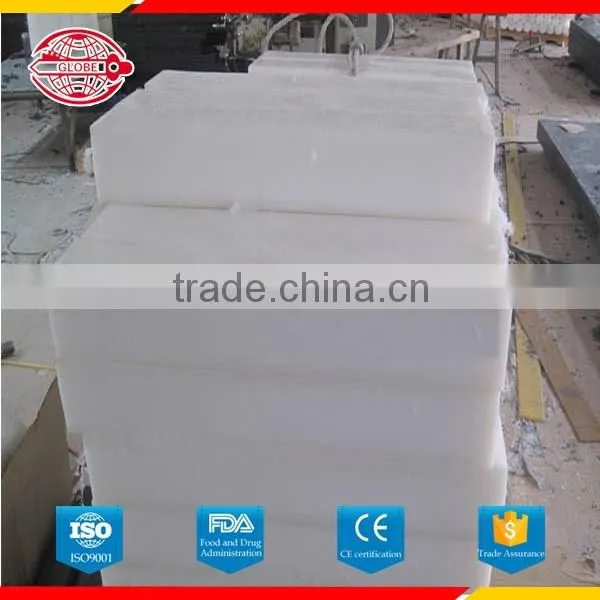

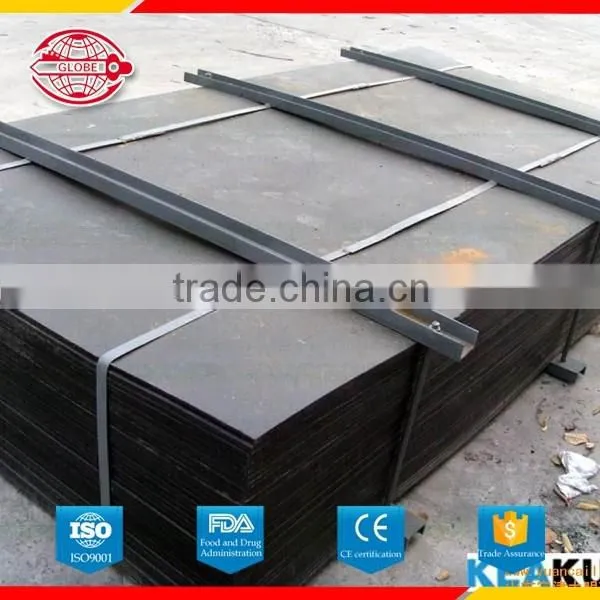

Help CenterUHMWPE Sheet With Variety Model and Color Provided by Honest Supplier
Related Products
Specification: thickness:5--200mm
Property: Excellent wear resistance,High impact strength,selflubrication ,corrosion resistance, resistance
to low temperature, and Excellent inadhesion
UHMWPE sheet adopts UHMWPE resin with 3.5 million molecular weight ,proceed by the most advanced
hot-press & cold press segregated auto control technique . UHMWPE sheet as new type of engineering
plastic with outstanding properties , and its impact strength remains first rink of other engineering plastic .
UHMWPE sheet has the following advantages: Excellent wear resistance,High impact strength, selflubrication
corrosion resistance, aging resistance to low temperature,Excellent inadhesion and high mechanical strength.
Parts made of UHMWPE sheet are stable under -269℃--100℃
UHMWPE SHEET technical parameter
| Items | Unit | Data | ASTM Test Methord |
| Molecular Weight | billion | 3~9 | D2857 |
| Specific Gravity | g/cm^3 | 0.935~1.0 | D1505 |
| Tensile Strength | MPa | 40~45 | D638 |
| Elongation at break | % | 300~400 | D638 |
| Impact Strength | kJ/m^2 | ≥140 | D250 |
| Rockwell Hardness | kJ/m^3 | 40~60 | D747 |
| Abrasion Loss | mg/1000 times | 70 | D1175 |
| Distortion Temperature | ℃ | 85 | D648 |
| Type | Feature | ||
UHMWPE-PE201 |
Made of pure uhmwpe , keeps all original properties |
||
UHMWPE-PE202 |
Outstanding wear resistance, high surface hardness and hot resistance, can be applied in temperature resistance places |
||
UHMWPE-PE203 |
Antistatic, keeps all mechanical property makes it suitable for anti-explosion and flame-proof palces |
||
UHMWPE-PE204 |
Antistatic ,high wear resistance can be applied in coal |
||
UHMWPE-PE205 |
flame-proof makes it best material under mine |
||
(1) In the industries like metallurgy,electricity, coal mine, shipbuilding ,meat plant and etc ,by the impact
resistance,wearability, inadhesion and selflubrication of UHMWPE, main products are liner plate for
coal bunker ,other bunker ,hopper & chute, and strip.
(2) In papermaking industry ,by the wearability of UHMWPE , main products are Vacuum suction box
panel, Scraper blades and etc.
(3) In textile industry,by the impact resistance and wearability of UHMWPE,main products are all sorts
of leather picker,gears,lap,pricker and etc
(4) In ceramic industry, by the wearability and inadhesion of UHMWPE ,main products are wheel and etc
(5) In beverage light industry, by the wearability , impact resistance ,selflubrication and nontoxicity of
UHMWPE , main products are all sorts of profile shapes,such as gear , cam, guide rail, conducting bar,
I-shape and etc.
(6) In machinery industry,by the wearability , impact resistance and selflubrication of UHMWPE , main
products are sliding block, wearing strip, axle sleeve,pin roll,gear,cam,impeller and etc
