Product details

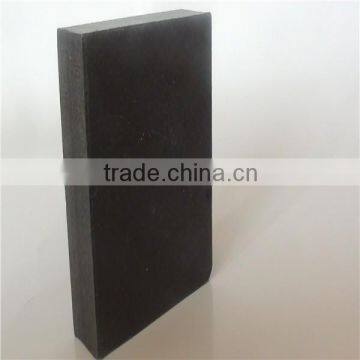

Product Name : thin flexible plastic black sheets
Material introduction: Ultra high molecular weight sheet ,also called uhmw sheet is the molecular weight of greater than 1.5 million engineering thermoplastics. Uhmw plastic having a molecular chain length is 10-20 times of high density polyethylene, a longer molecular chain (higher molecular weight) gives the major advantage of UHMWPE is toughness, abrasion resistance and stress cracking resistance, because it is a polyethylene species, UHMWPE also has lubricating properties, chemical resistance and excellent electrical properties of HDPE GM, its successful development is widely considered one of the top ten scientific and technological achievements of the 20th century.
Ingredients: UHMW-PE sheets
Product advantages
- Excellent wear resistance, good low temperature impact resistance, self-lubricating, non-toxic, water resistance, chemical resistance, heat resistance than the general PE
- Excellent wear resistance, good low temperature impact resistance, self-lubricating, non-toxic, water resistance, chemical resistance, heat resistance than the general PE.
- Mechanical performance than the usual high-density polyethylene.
- Has outstanding impact resistance, resistance to stress cracking resistance, high temperature creep resistance, low coefficient of friction, self-lubricating, excellent chemical resistance, fatigue resistance, noise damping.
- Resistance to abrasion
- Impact resistance
- Chemical resistance
- Self-lubricating
- Anti-static
- Anti-wear resistance
- Low loss coefficient is small
- Light weight
- Energy-absorbing
- Anti- aging
- Fire-retardant
thin flexible plastic black sheets main technical parameters
Performance |
Unit |
UHMW |
Density |
g/cm³ |
≥0.98 |
Water absorption |
% |
≤0.01 |
Impact strength |
KJ/m² |
≥140 |
Compressive strength |
Mpa |
≥45 |
Wearable Index |
g/cm² |
≤0.062 |
Ball indentation hardness |
N/mm² |
≥45 |
|
Deflection Temperature
|
℃
|
90℃ — -260℃
|
thin flexible plastic black sheets can replace carbon steel, stainless steel, bronze and other materials used in the textile, paper, food machinery, transportation, medical, mining, chemical and other sectors. Such as the textile industry on technical shuttle, a playing shuttle rods, gears, couplings, sweeping flower stem, buffer block, eccentric block, rod bushings, swing consequences of impact-resistant wear parts. Do cover plate on the paper industry, wiper blade, compaction components, connectors, mechanical drive shaft seal, deflector wheel, scrapers, filters, etc.; do powdery material on the transport of industrial hoppers, silos, chutes lining.
The thin flexible plastic black sheets products co ltd can do all kinds of mechanical parts, including food machinery gears, worm, worm, bearings. To do chemical pumps, valves, baffles, filter plate. Medical care, but also for heart valves, short orthopedic parts, artificial joints and birth control implants. Do sports skating floor, rolling earth Road, skis, snowmobile parts. UHMWPE can do high modulus fibers, manufacture of body armor, aircraft seats, shipping, fishing rope and so on.
Applications and polyamide, polytetrafluoroethylene similar wear than steel, making gears, bearings, bearings, star wheels, valves, pumps, rails, packing, equipment lining, sliding plate change, artificial joints, fiber make bullet-proof vests, ropes.
Packaging Detail: Bundle packing/Standard/fumigated wooden box/As customer's requirements
Delivery Detail: 25-30 days after receiving payment
Henan JINHANG specializes in producing plastic products, the main products are thin flexible plastic black sheets, HDPE sheet/rod, coal bin liner, nylon plate/rod, plastic parts. Our company has strong technical force, and scientific research, development, production,and sales in one. There are more than ten years of production experience. It is one of the largest,manufacturers of producing high-performance engineering plastic products.
