Home > Products > UHMWPE SYNTHETIC ICE SHEET > Self- lubricating uhmwpe synthetic ice, synthetic ice skating, synthetic ice arena

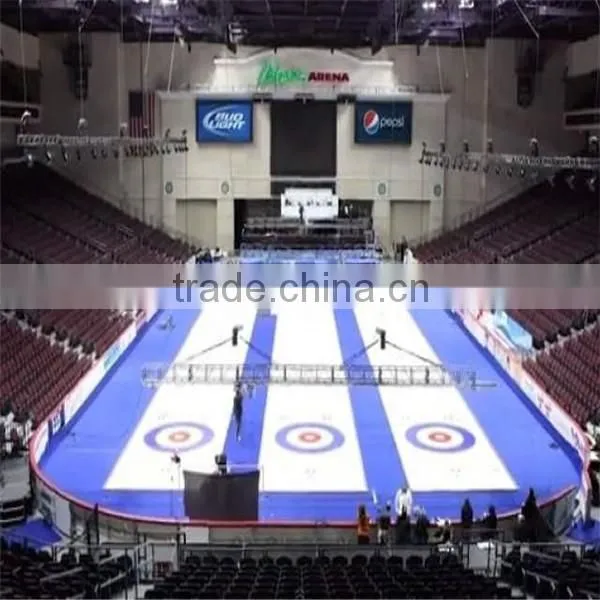

Self- lubricating uhmwpe synthetic ice, synthetic ice skating, synthetic ice arena
- 100 Ton / Tons per Month
- Tianjin
- T/T L/C Credit Card
Product Details
Place of Origin: | Henan, China | Brand Name: | YUSU | Model Number: | HQ-UI(J0014) |
Material: | PE | Thickness: | 5mm~120mm | Size: | Max. 4000mm*1500mm |
Product Description
UHMPWE spill plate/plastic spill plate
Brief Introduction of uhmwpe synthetic ice, synthetic ice skating, synthetic ice arena
UHMWPE defined is Ultra High Molecular Weight Polyethylene. UHMWPE is a polyethylene with a molecular weight of 1.5 – 9 million. It is this high molecular weight that gives UHMWPE its unsurpassed combination of slickness, toughness and chemical resistance. We uses 100 % virgin UHMWPE powder in every UHMWPE product we manufactured.
The Properties of uhmwpe synthetic ice, synthetic ice skating, synthetic ice arena
- Excellent impact resistance
- High mechanical strength
- Resistant to many solvents
- Excellent chemical and corrosion resistance
- Very high damping properties
- Temperature resistance from -200C to +80C
- Minimum water absorption (0.01%)
- Extremely low co-efficient of friction
- Extremely low co-efficient of friction
- Self lubricating
- 7 times lighter than steel
- 3 times lighter than aluminum
Size Range of uhmwpe synthetic ice, synthetic ice skating, synthetic ice arena
Rods |
Max. Φ120mm Max. Length 4000mm |
| Size can be customized |
Color Range of uhmwpe synthetic ice, synthetic ice skating, synthetic ice arena
of UHMWPE rods/PE rods/plastic rods
The UHMWPE sheet/UHMWPE plate/UHMWPE board can be
White,Black,Yellow,Blue,Green,Purple.
Any color can be customized.
Techincal Data of uhmwpe synthetic ice, synthetic ice skating, synthetic ice arena
Properties | Unit | Result |
Specifica Gravity | g/cm³ | 0.95 |
Max Continuous Operating Temp | ℃ | 80 |
Max Short Term Operating Temp(3~4hours) | ℃ | 130 |
Tensile Strength at Yield | Mpa | 23.3 |
Tensile Strain at Yield | % | 21 |
Tensile Strength | MPa | 35.2 |
Elongation at Break | % | 350 |
Hardness Rockwell | - | M61 |
Dielectric Strength | KV/mm | 40 |
Surface Resistivity | Ohms | >1014 |
Impact Resistance Charpy Unnotched | KJ/m2 | No Break |
Impact Resistance Charpy Notched | KJ/m2 | >100 |
UHMPWE spill plate/plastic spill plate
- Trade Assurance on Alibaba
- Free sample
- Guide for Installation
- OEM Service
- Provide Product Catalogue with MOQ
UHMPWE spill plate/plastic spill plate
TANGYIN HUANQIU ENGINEERING PLASTIC CO., LTD. is the cooperation of manufacturers of UHMW-PE technology,, Tsinghua University teaching experiment of the teaching and research office of gao polymer base. My company is a professional research and development production enterprise, high polymer material in August 2012, led by Dr Li TingXian company founded the polymer physics and chemistry lab, the existing professional Dr 2 people, 3 people, students who major in polymer materials research with Tsinghua University, Sichuan University has close academic exchanges system is established. In 2013 successfully developed the radiation resistance of ultra high molecular material and has been successfully applied in our country's national defense, nuclear power and other special places, broke the abroad in the field of our country's technical monopoly.
