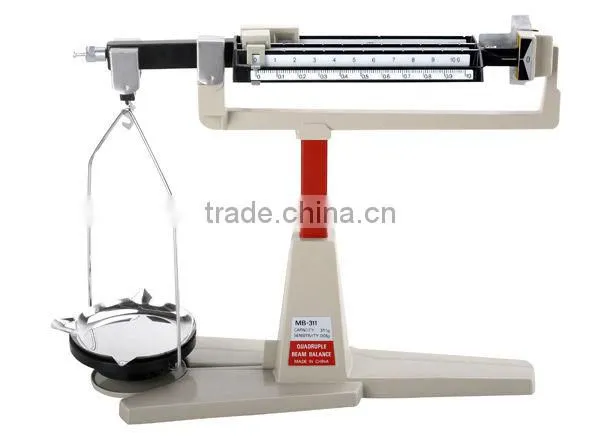

MB-311 quadruple beam balance / balance beam scale

Specifications

Beam Balance / Physicas Balance / Mechanical Balance
-Capacity: 311g
-Sensitivity: 0.01 g
-Magnetic damping system

Laboratory Mechanical Quadruple Beam Balance / Physical Balance / Mechanical Balance



Application:
1. The MB311 Single-pan balance is of unequal arm type with 4 beams.
2. The maximum capacity is 311 grams and the readability is 0.01g.
3. It is made of a high quality aluminium alloy, the knife is made of a high quality alloy and the bearing plane is of agate, with a stainless steel weighting pan and includes a buit in platform to aid density determination by weighting samples in air and in water.
4. It is widely used for schools and educational establishments, etc.
5. Adoption of agate knife edge bearing and specially-treated steel knife effectively improve the sensitivity of the balance.
6. Damping device reduces the oscillation frequency during working of the balance, tarring device facilitates weighing of bulk goods, with 210g/610g/310g riders, it facilitates users' small amount weighing.



Main technical date:
1.Capacity: 311g
2.Sensitivity(g):0.01g
3.Beam Calibrations
4.Front beam :1 x 0.01g
  2nd beam: 10 x 1g
  3rd beam: 100 x 10g
  4th beam: 200 x 100g
5.Damping system: magnetic
6.Stainless Steel Weighing Pan: 100mm (4")diameter
7.Density platform: 75mm (3")diameter, adjustable height.
8."2.92 x 3.15" (7.42 x 8.01cm) heavy aluminum-look adhesive label on balance
9.Overall size (W x H x D): 370 x 300 x 137mm (14.5" x 11.8" x 5.4").
