Geomembrane Wedge Welder / Plastic Welding Machine

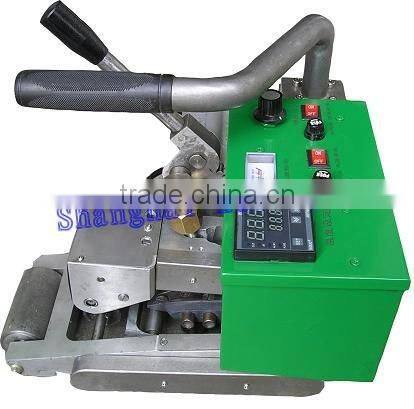

Geomembrane Wedge Welder / Plastic Welding Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
LH
Model Number:
LHPW-900
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name LH
Model Number LHPW-900
Voltage 220V
Power 1800W
Frequency 50HZ
Weight 13kg

Geomembrane Wedge Welder

LHPW-900 Geo-membrane Wedge Welder (Climbing Welder)


Function:

The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor, with great output torque and the operating is stable. It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.

Jointer series geomembrane welding machine is our new developed products, which can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and the like.
This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on



Technical parameters

Input voltage:220V    Frequency:50Hz
Power:1800W
Welding speed:0.5-5m/min
Heating temperature: 0-450°C
Welding material thickness: 1-4mm (single membrane)
Weld with: 15mm×2   Middle cavity12mm
Weld strength: ≥85% Base plate (Tensile shear direction)
Joint width: 120mm
Insulation class: Class II
Net Weight(about ): 13Kg





Geomembrane Wedge Welder / Plastic Welding Machine







Geomembrane Wedge Welder / Plastic Welding Machine








Geomembrane Wedge Welder / Plastic Welding Machine
