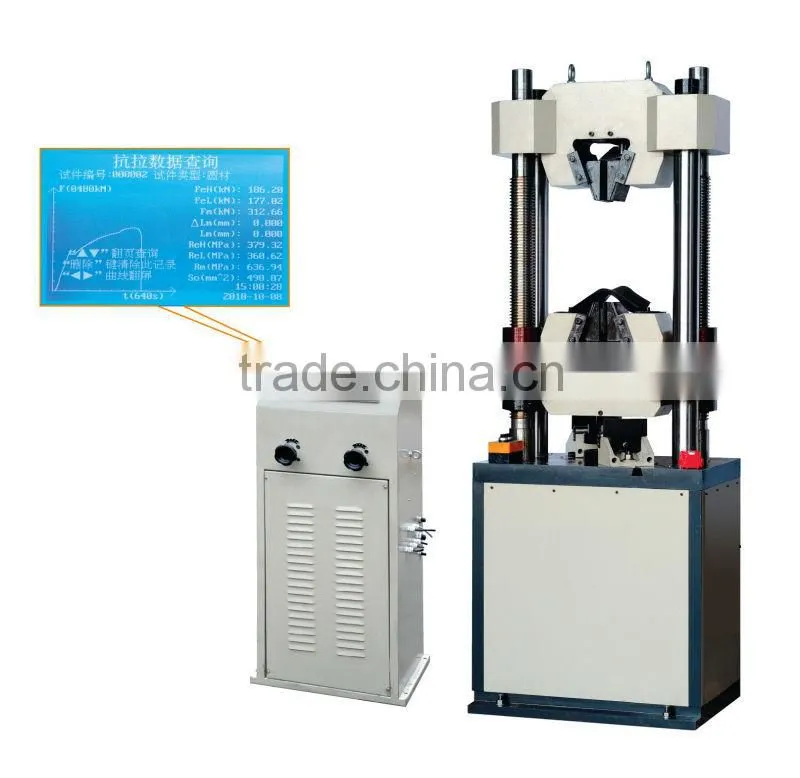

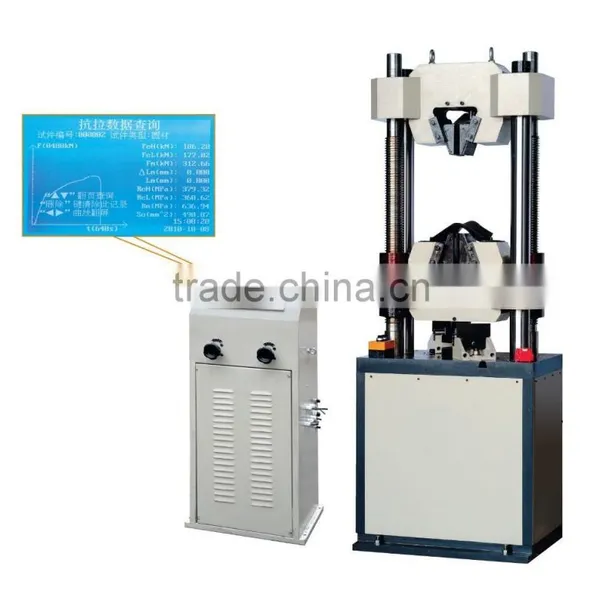

600KN LCD Display Hydraulic Universal Testing Machine
WE-600B LCD display hydraulic universal testing machine is mainly designed for perform tension, compression, bending and shearing test of metal material specimens. It can also be used for compression test of nonmetal material such as plastic, concrete and others. This machine can test various components of belt chain, wire rope, welding, and tile by adding some simple attachments. The oil cylinder is at the bottom of it. This machine is specially used in the construction sector.
Features:
1. LCD display ensure direct data reading;
2. Test value can be printed.
Technical parameters:
1. Model: WE-600B
2. Max. Force: 600KN
3. Testing precision: ±1%
4. Accuracy of capacity measurement: 0.01KN
5. Stretching space: 650mm
6. Compression space: 380mm
7. Round specimen clamping diameter: 13-40mm
8. Width of specimen clamping: 75mm
9. Thickness of specimen clamping: 0-15mm
10. Size of top and lower pressboard: φ160(or 204x204)mm
11. Max. tensile space : 450mm
12. Max .compression space: 450mm
13. Piston speed: 50mm/min
14. Power of oil pump motor: 1.1kw
15. Clamping mode : Manual or Automatic
16. Dimension: 720×580×2100mm
17. Weight : 2100kg
1. Outside packeg: standard export wooden case
2. Inside package: strength film
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
