Specifications

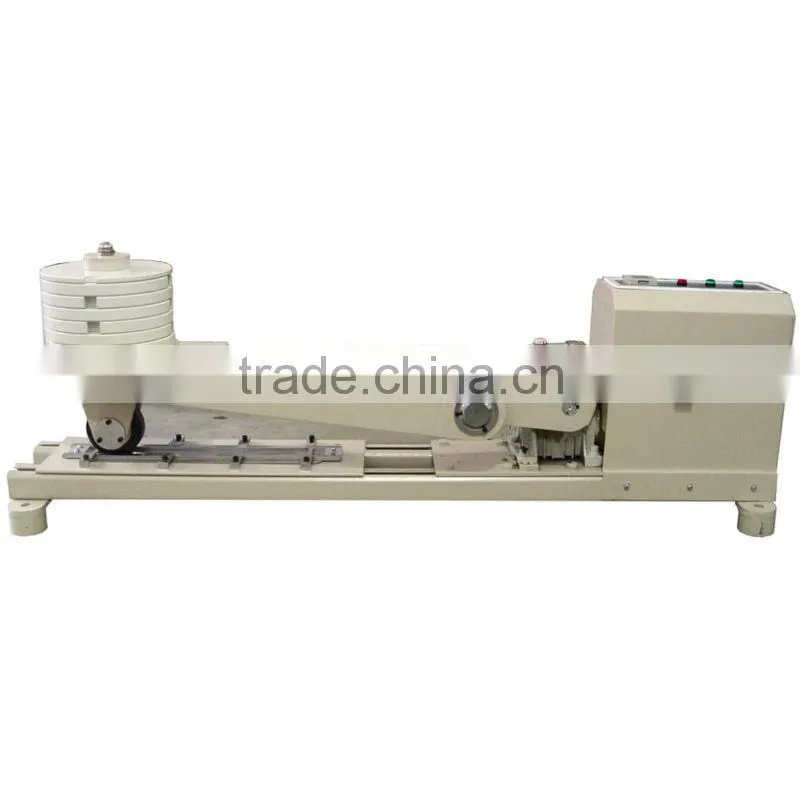

It is suitable to determine asphalt quantity in the emulsified asphalt slurry seal mixtureLoad Wheel Rolling Tester Model SLH-0755
Description:
It is suitable to determine asphalt quantity in the emulsified asphalt slurry seal mixture to ascertain whether there is too much asphalt, so that to set upper limit for asphalt used. The instrument is used to decide the preferred asphalt quantity in the emulsified asphalt slurry seal mixture together with wet wheel abrasion tester.
The main technical parameters:
1,the motor speed: 1400 r/PM;
2,rolling frequency: 44 times/points;
3,the crank radius: 150 mm;
4,load weight: the small car flat for total weight 56.7 Kg;
5,the small car travel: 300 mm;
6,rubber roller's hardness: 70;
7,sample plate: 77 mm x 407 mm stainless steel trays;
8,try mode: there are 3 mm, 5 mm, 6 mm, 8 mm, 10 mm thick several, according to need to choose, internal size 50 mm x 380 mm;
9,work power: the three-phase 380 V/frequency 50 Hz, motor power 550 W
8,weight: 80 KG
9, appearance size: 1000 x400x500mm
10, power: 700 W
11, environmental temperature: more than 35 °C.
12, relative humidity: more than 85%
Load Wheel Rolling Tester
