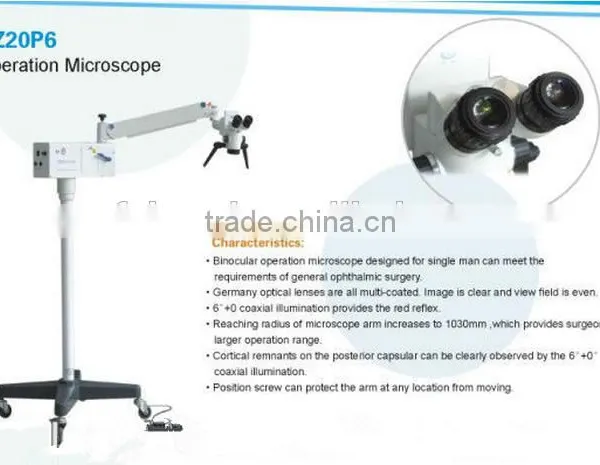

Simple coaxial illumination Operational Ophtalmic microscope for one man
The product is a simple coaxial illumination operation microscope for one man.It is
portable,compact and applied in mobile hospital.
Key Features
• All the lens adopting anti-fungus technology
• Bottom control focusing and three steps magnifying
• Apochromatism technology offering more clear and sharp images
• CE and FDA certified
Specification
Eyepiece Magnification |
12.5X |
Objective Focus |
f=200mm |
Working Distance |
190mm |
Magnification for Main Microscope |
10X |
Diameter of Field |
Φ37mm, Φ25mm, Φ16.7mm |
Diopter Adjustment |
±7D |
Pupil Distance |
50mm~80mm |
Maximal Resolution |
100 LP/mm |
Illumination Source |
12V/100W, medical cold reflection halogen lamp |
Illumination Type |
6°+ 0°coaxial cold light source illumination |
Coaxial Illumination |
≥30000lux |
Reaching Radius of Arm |
870mm |
Adjustable Vertical Range |
700-1100mm |
Fine Focusing Range |
≥30mm |
Fine focus speed |
≤2.5mm/s |
Input Voltage |
AC220V±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz |
Safebond is focus on DENTAL and MEDICAL equipment, we know the market, we know the customers need, just send us your demand we will try our best to make the best offer.
