Home > Products > Moulded case circuit breaker series > yueqing china supplier mccb breaker, mccb 100amp ,mccb 200amp

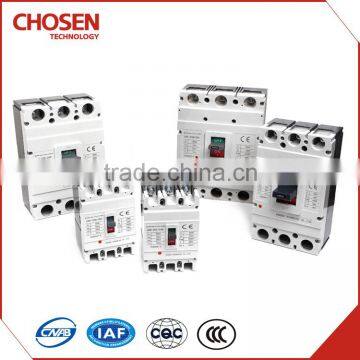

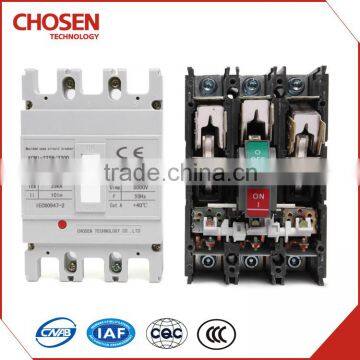

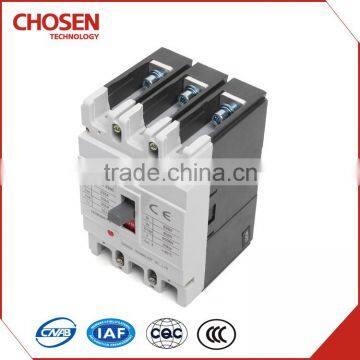

yueqing china supplier mccb breaker, mccb 100amp ,mccb 200amp
- 1500 Piece / Pieces per Month
- Ningbo port
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | chosen | Model Number: | CM1/kcm1 |
Type: | Moulded Case | Poles Number: | 3 |
Product Description
Our advantage
1.20years- Company since its establishment has been already more than 20 years.
2.90%-More than 90% of the parts manufactured by the company. So the product price is much cheaper.
3.USD12000000- We have annual sales of more than $12 million.
fessional team- We have our own product research and development team.
5.cetification- We have cetificate with CCC, CNAB, CE, ISO9001…
6.services-We 24 hours online and solve any of your questions in first time.
1.KCM1-225M(3P) outline and installation dimension
2.Rang of application
KCM1 moulded case circuit breaker series is one of products developed and manufactured by adopting international advanced technology. It's supplied with rated insulation voltage 800V(KCM1-63 is 500V)and rated operating voltage is 690V (or below,KCM1-63 is 400V),rated operating current up to 1250A for inf requent changing over and starting of the motors. The KCM1 series is suited to vertical installation and horizontal installation. The temperature is not higher than 40 ℃ and not less than -5℃.
3.KCM1 series specification
Type | Rated Current (A) | Pole number | Rated Insulating Voltage(V)
| Rated operating voltage(V) | Ultimate short circuit breaking capacity(KA)
| Servies short circuit breaking capacity(KA)
| Utilization category |
KCM1-63L | (6),10 16,20 25 ,32 40,50 63 |
3
4 |
AC 500V |
400V |
25 |
18 | A |
KCM1-63M |
50 |
35 | |||||
KCM1-100L | (10),16 20,25 32,40 50,63 80,100 |
AC 690V |
35 |
22 | |||
KCM1-100M |
50 | 35 | |||||
KCM1-100H |
85 | 50 | |||||
KCM1-225L | 100, 125 160, 180 200, 225 |
35 | 25 | ||||
KCM1-225M |
50 | 35 | |||||
KCM1-225H |
85 | 50 | |||||
KCM1-400L | 225, 250 315, 350 400 |
50 |
35 | ||||
KCM1-400M |
65 |
42 | |||||
KCM1-630L |
400, 500 630 |
50 |
35 | ||||
KCM1-630M |
65 |
42 | |||||
KCM1-630H |
100 |
65 | |||||
KCM1-800M | 630, 700 800 |
3 |
70 |
50 | |||
KCM1-800H |
100 |
65 | |||||
KCM1-1250 | 800 1000 1250 |
65 |
32.5 |
4. Dimension
Q1:How to buy our product?
A:Send your inquiry through our alibaba website,we will reply you at the soonest time,or you can call us by skype.
Q2:Tell me the standard of package?
A: Our circuit breaker will export with standard carton box.
Q3:How about our after-sales seivice?
A: If there is any problem of our products ,you can contact us at any time,and we will immediately help you solve the problem.
Q4:Do you accept OEM business?
A:We accept OEM and we have 20 experience in OEM.
If you have any other questions you can contact us
website: http://zixinmccb.en.china.cn
Skype:zxcn-kathy
Phone:+86-18267727579
whatsapp: +86-18267727579
