Help Center40.5CBM Lpg Tank Trailer,lpg Trailer
Related Products
-
2 Axles Lpg Tank Trailer,lpg Trailer for SaleUS$ 10,000 - 50,000MOQ: 1 Set -
49600L Lpg Semi-trailer, Famous Lpg Tank CapacityUS$ 10,000 - 50,000MOQ: 1 Set
-
23Tons Lpg Tank Semi-trailer,lpg Gas Tank TrailerUS$ 45,000 - 50,000MOQ: 1 Set
-
24.55Tons Propane Gas Tank Trailer for Sale, 3 Axles Lpg TrailerUS$ 45,000 - 50,000MOQ: 1 Set
-
60CBM Liquid Gas Tank Trailer for Sale, 3 Axles Lpg TrailerUS$ 10,000 - 50,000MOQ: 1 Set
Used truck lpg tank semi-trailer,used lpg trailers for sale,propane trailers for sale,propane tank trailer,3 axles lpgtrailer for sale,heavy propane trailer tank.

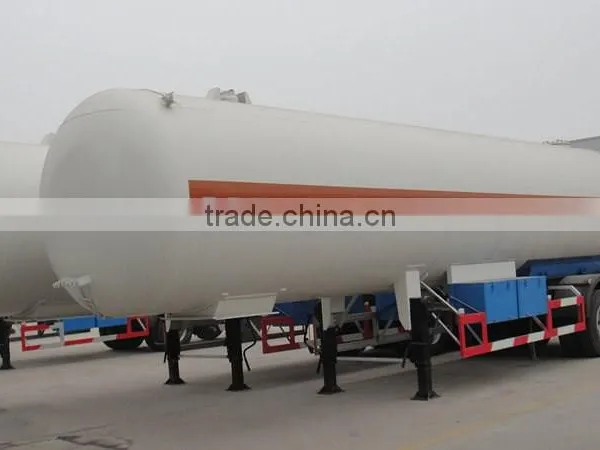

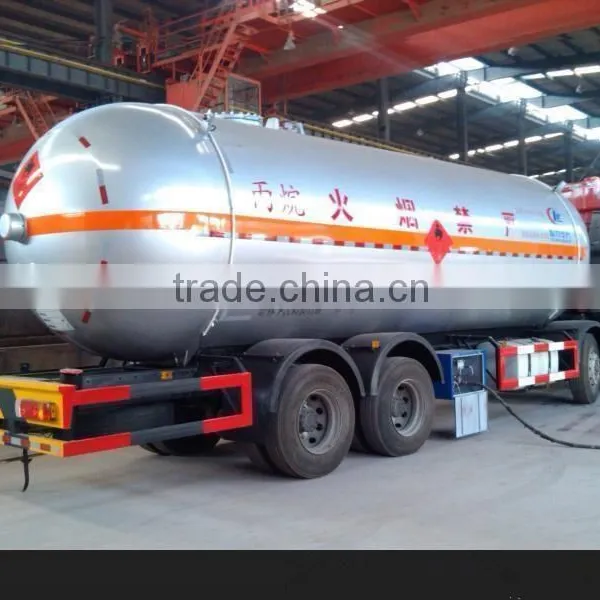

40.5CBM Lpg tank trailer
Item |
unit |
Parameter |
||||
Products name |
|
LPG (propane) tank trailer |
||||
Volume |
m3 |
40.5 |
||||
G.W |
Kg |
30425 |
||||
Net weight |
17010 |
|||||
Rated loading |
13990 |
|||||
Overall dimension |
mm |
11324*2500*3730 |
||||
Tank dimension |
mm |
DN2200*12*11044 |
||||
Number of axles |
|
2 |
||||
Wheel base |
mm
|
6720+1320 |
||||
tread |
Front wheel |
- |
||||
Back wheel |
1840/1840 |
|||||
Front overhang/rear overhang |
-/1500 |
|||||
|
Number of plate spring (front/back) |
|
-7/7 |
||||
Semi-trailer saddle maximum permissible load mass |
Kg |
13045 |
||||
Specification of tire |
11.00R20 12PR |
|||||
|
material |
Q345R |
||||
Standard configurations |

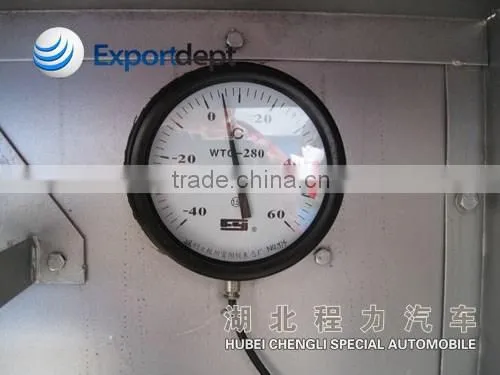

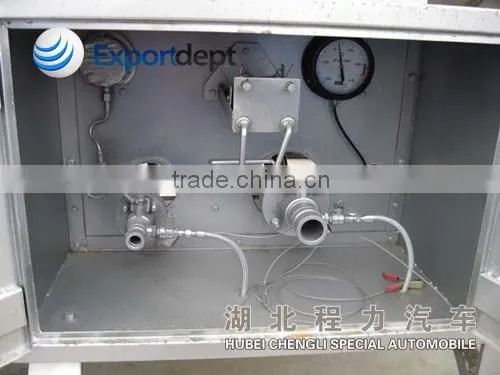

12 tons BPW axles,Safety valve cover, single-fluid two-valve boxes, legs, traction pins, liquid level gauge, pressure gauge, thermometer, emergency cut off valves, fire extinguishers, fire star cover, anti-static grounding tape, fence, tire fenders |
|||||
others |
Filling medium: liquefied petroleum gas (propane); design pressure 1.61Mpa, design temperature 50℃,Filling factor: 0.42t/m3, corrosion margin: 1mm |
|||||
standard |
1.JB4732-1995 <Steel pressure vesse-Analysis and Design Standard>(confirmed in 2005) 2.GB/T19905-2005< liquefied gas tanker truck> |
|||||
Production cycle |
Warranty |
30 days |
12months from the supplying day |
|||
FOB SHANGHAI |
42950USD/SET |
|||||
About products
1.Our main products : water tank series ,oil tank truck series ,dump trucks ,refrigerator trucks ,tractors ,trailers ,LPG,fire fighting trucks ,road sweeper trucks ,platform truck ,aerial platform truck ,crane truck ,concrete mixer ,sewage suction truck ,wreckers ,etc .
2.Our key products :environmental protection vehicles :water truck ,road sweeper truck ,garbage trucks ,asphalt truck .etc.
3.Our special and leading products:LPG tanker ,LPG truck ,LPG truck trailer
About trucks
1.We are professional manufacturers to do the special vehicles . We are supply all brands of special
truck , Faw , Foton , Shaanxi ,Sinotruck , Jac , Jmc,Dongfeng all available .
2.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
3.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles
1. We have solid technology, flawless inspection, advanced equipments, reliant quality and flexible modes of operation.
2. Guaranteed high quality and competitive price.
3. Having warranty services for one year and enjoy maintenance for a life.
4. We always keeping high efficiency and products are based on your requirement.
5. After service can be dealt with in 48 hours.
More information,Pls contact me as follow ,we are ready to give you our best service .
...
