Home > Electrical & Electronics > Battery, Storage Battery & Charger > Storage Battery > Lifepo4 Battery 3.2v 60Ah

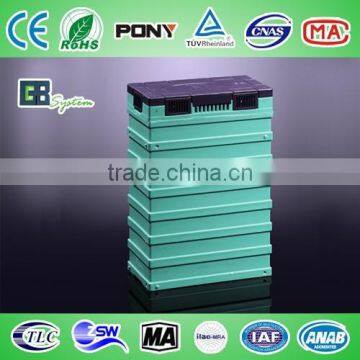

Lifepo4 Battery 3.2v 60Ah

Name: Lifepo4 Battery 3.2v 60Ah
Brand: GBSystem
SKU: 106600611
Availability: InStock

Negotiable MOQ: 4 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GBSystem

Model Number:

GBS-LFP60Ah

Contact Supplier Request Quote Chat Now

Zhejiang GBS Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

All ports in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GBSystem

Model Number GBS-LFP60Ah

Type Li-Ion

Nominal Voltage Other, 3.2V

Size Other, 126*65*180mm

Nominal Capacity 60Ah

Item			Specification	Remark
Rated capacity			60Ah	0.2C rate discharge capacity
Minimum capacity			60Ah
Internal impedance			≤1.2mΩ
Nominal voltage			3.2V
Cell weight			2.0±0.1KG
Standard discharge conditions	Constant current		30A
	End-of-discharge voltage		2.8V
Standard charge method	Constant current		15A
	Charge voltage		3.55V
Fast charge method	Constant current		60A
	Charge voltage		3.55V
Max continuous discharge current			180A
Cycle life			≥2000 cycles	80% DOD
Operating temperature		Charging ambient temperature	0~45°C
		Discharging ambient temperature	-25~65°C
		Storage temperature	0~45°C
Appearance			Without break, distortion, contamination, leakage.

Basic Performance

(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.

(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.

(7) Low cost.

(8) No pollution during manufacture and usage.

Matters needing attention

(1) Please check if spare parts are completed when open the package and read the operation manual carefully.

(2) Do not make the battery Short Circuit,do not over charge and discharge.

(3) Please charge the new battery to full capacity before discharge for the first use.

(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.

(5) Checking the voltage of battery, normally it is 3.2V-3.3V.

(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.

(7) Rivet or screw is used for battery connector.

(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.

(9) The charger used should be approved by our company in order to match with our lithium batteries.

(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.

Requirement for safety assurance

For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.

Service line: +86-400-884-7799
