Specifications
3d wheel alignment CE&ISO12 months warranty period
3d technology,more stable,more accurate measurement,
easy to operat

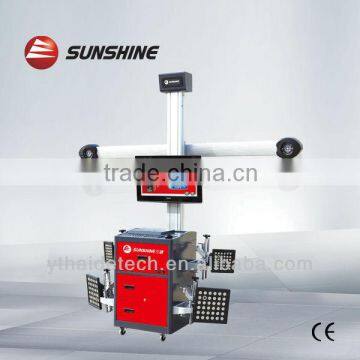

Moedel:SX-G6T
First-class Sunshine brand 3d wheel alignment for car
1. Characteristics of 3D Wheel Alignment
(1)3D cameras alignment—Based on the car and not influenced by the platform
(2)Measurement system—equipped with double digital cameras and four target disk, supplying revolutionary measurement mode
(3)Target disk—There is no electronic components, so the wheel alignment will not has a component failure problem.
(4)Equipment Calibration - once calibration before delivery, workable immediately after installation, no need for periodic calibration
(5)Measurement progress—no need to compensate for steel ring , the precise eccentric compensation will be just once pulling or pushing the car back and forth
(6)Software system——Easy to operate, complete conventional basic parameters within two minutes ,significantly faster than conventional aligners
(7)Daily Maintenance—Easily maintenance , download and upgrade freely for the model data(Auto data)
2.
Measurement project | Accuracy | Measurement range | |
Display accuracy | 1´/1mm | ||
Camber | ±2´ | ±10° | |
Caster | ±6´ | ±20° | |
Kingpin Inclination | ±6´ | ±20° | |
Toe-in & Toe-out | ±2´ | ±20° | |
Set back | ±2´ | ±5° | |
Thrust angle | ±2´ | ±5° | |
Wheel Deviation | ±2mm | ||
Axis Deviation | ±2mm | ||
Standard Configuration Compact integrated cabinets, DELL branded computers (26 inches Liquid Crystal Display), Canon printers, Target plates, Pylon, Brake Pedal Lock Depressor, steering wheel holder, wedge pads, turntable, turntable transition block,
Software Features Basic Functions: parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle Extension Functions: 1.Axis deviation measurement 2.Wheel deviation measurement, 3.Single wheel measurement. 4.The vehicle lift function 5.Steering wheel align function, 6.Inspection of height level function 7.Engine bracket adjustment function., 8.Toe-in Lockup measurement 9.Toe-in curvature measurement
|
