Model :SX-G6

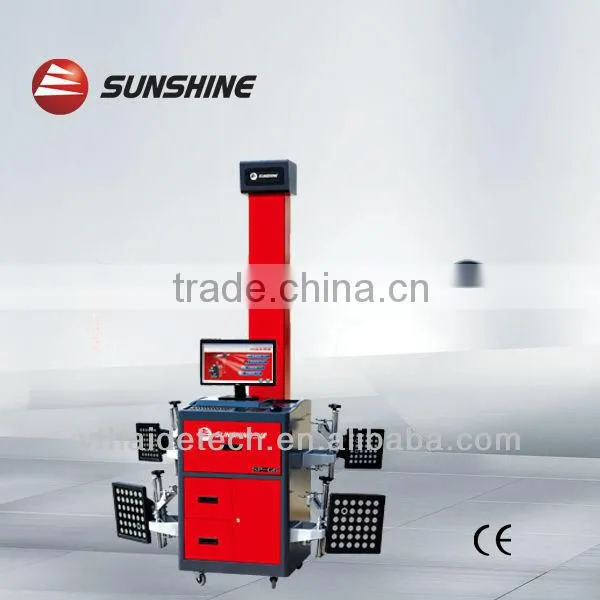

First-class Sunshine brand 3d wheel alignment for car alignment
1. Characteristics of 3D Wheel Alignment
(1)3D cameras alignment—Based on the car and not influenced by the platform
(2)Measurement system—equipped with double digital cameras and four target disk, supplying revolutionary measurement mode
(3)Target disk—There is no electronic components, so the wheel alignment will not has a component failure problem.
(4)Equipment Calibration - once calibration before delivery, workable immediately after installation, no need for periodic calibration
(5)Measurement progress—no need to compensate for steel ring , the precise eccentric compensation will be just once pulling or pushing the car back and forth
(6)Software system——Easy to operate, complete conventional basic parameters within two minutes ,significantly faster than conventional aligners
(7)Daily Maintenance—Easily maintenance , download and upgrade freely for the model data(Auto data)
2.
Measurement project |
Accuracy |
Measurement range |
|
Display accuracy |
1´/1mm |
||
Camber |
±2´ |
±10° |
|
Caster |
±6´ |
±20° |
|
Kingpin Inclination |
±6´ |
±20° |
|
Toe-in & Toe-out |
±2´ |
±20° |
|
Set back |
±2´ |
±5° |
|
Thrust angle |
±2´ |
±5° |
|
Wheel Deviation |
±2mm |
||
Axis Deviation |
±2mm |
||
Standard Configuration:
small compact cabinets,camera cupboard standard installation, DELL branded computers (Liquid Crystal Display),Canon printers, Target plates, Pylon, Brake Pedal Lock Depressor, steering wheel holder, wedge pads, turntable, turntable transition block
Software Features
Basic Functions:
parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle
Extension Functions:
1.Axis deviation measurement
2.Wheel deviation measurement,
3.Wheel distance measurement
4.Axis distance measurement
5. Single-wheel measurement.
6.Vehicle lift measurement function
7.Steering wheel aligning function,
8.Alignment platform levelness testing function
We are manufacture in China , specialized in produce 3D wheel alignment , car lift ,wheel balcancer and tire changer since 1998 , products have export to more than 50 countries in the world .right now , we have 2 factories , and more than 400 employees ,
WELCOME TO VISIT OUR FACTORIES ,WITH US EXPAND YOUR BUSINESS !

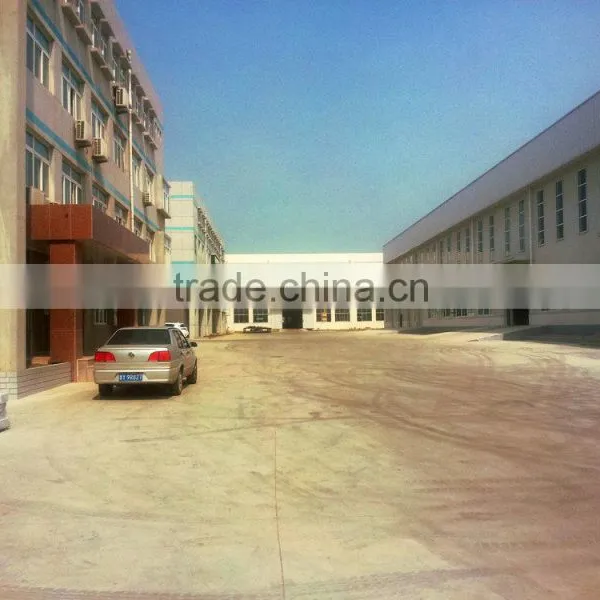

Car lift factory

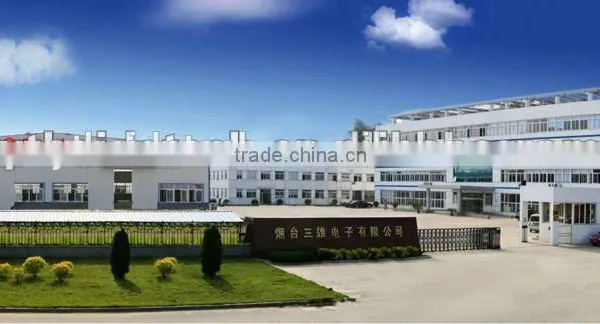

wheel alignment / tire changer / wheel balancer factory
