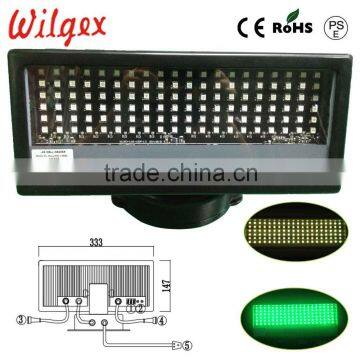

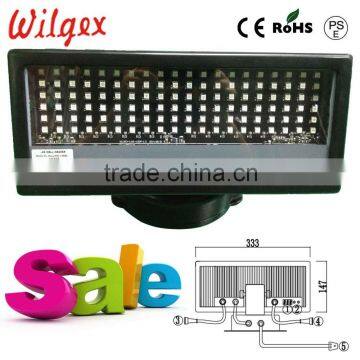

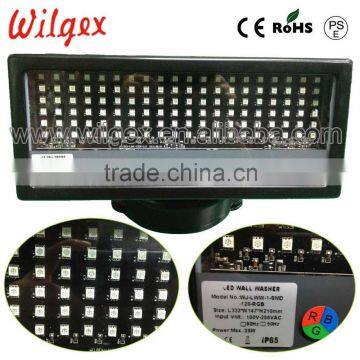

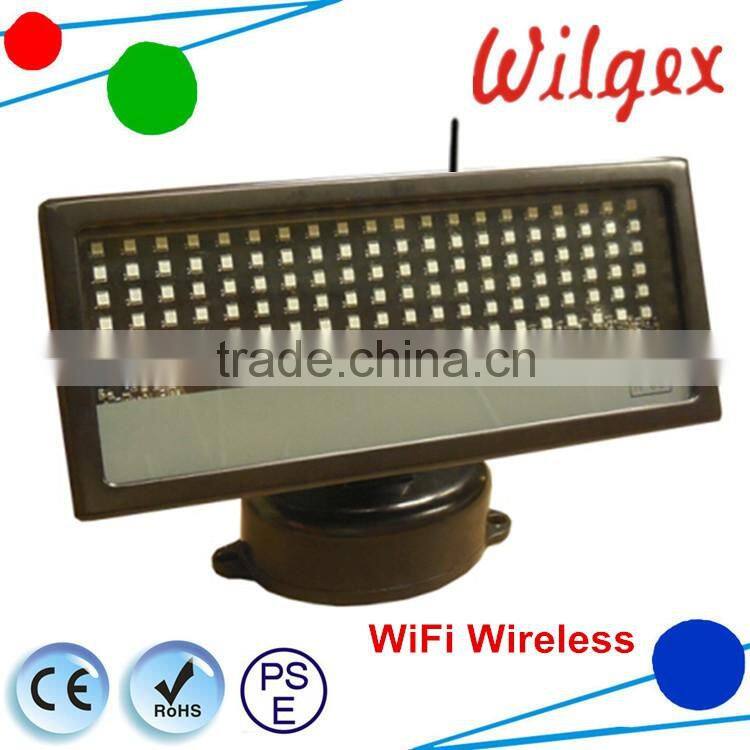

25W IP65 Square SMD wireless led wall washer
Product Features:of SMD5050 120P RGB 25W Waterproof IP65 rgb wall washer high power
• High brightness LEDs creates a bright wash of light,projecting up to 65 feet
• Link up to 30 DMX LED Wall Washer in a single run
• Link multiple controllers together to create large scale synchronized lighting effects
• Suitable for heavy duty use(more than 12 hours per day)
• Can meet the most specific lighting-effect requirements with 16,777,216 possible available colors
• Mounting gears and simple rotating mechanisms included to aid easy installation and removal.
• Adjustable angle design and easy installation maximized on site flexibility
• RGB color-changing modes operating through our DMX controller can handle sophisticated tasks
• IP65 rated-perfect for both indoor and outdoor applications
• High quality LEDs used,ensuring DMX LED Wall Washer a long life span of over 50,000 hours
Other Features of led bar light:
• Color range: Different brightness of red, green and blue LED combined to produce 16, 000, 000 colors
• LED quantity: 120pcs SMD LEDs/0.21W Power consumption:25W, Shell material: Aluminum alloy (L333*W147*H210mm,L13.11xW5.79xH8.27inches)
• Light projecting distance: 12m, Waterproof: IP65
• Weight: 4.3kg per unit.
• Working mode:
A: Independent mode: We can adjust the internal functions of lighting by button on the back of lighting
B: DMX mode
C: Master/Slave function under independent mode (Auto online function)
D: 3 functions (flash changing, fade changing, chasing changing) or 10 functions(including seven static single color) for your choice freely.
Application& Uses:
LED bar light Series are mainly used for decorating and highlighting building frame, garden, restaurant and even stage etc, by offering colorful and magic environment.
• Indoor/Outdoor social events:parties,weddings
• Corporate engagements & trade shows
• Restaurant & dance clubs
• Garden & outdoor accents
• Exterior & architectural lighting
• Indirect & accent lighting
• Billboard & outdoor signage
Specifications
Physical Specifications |
|
Dimension | L333 X W147 X H210m (L13.11*W5.79*H8.27inches) |
Housing | Aluminum alloy(Silver/Black color) ;tempered glass |
Net weight | 4.3KG |
Rotary Angle | 150° |
IP Rating | IP65(suitable for dry,wet,and damp environments) |
Electrical Specifications |
|
Lighting Source | 120 SMD LED/0.21W |
LED Quantity | 120 LEDs |
Operation Temperature | -20°C~60°C(-4°F~140°F) |
Input Voltage | 100-256V AC |
Power Consumption | 25W |
Control System | Independent,DMX,Master/Slave mode |
Optical Specification |
|
Chip type | Epistar |
Beam Angle | 10 ° 15 ° ,25 ° ,30°,45°,60°,90°,30 °*60 ° |
Color | RGB |
Lighting Distance | 12 meters |
Three Different Shapes for LED Wall Washers
Quick Links to other categories of Wilgex's product
Linear Type LED Wall Washers,
Round Type LED Wall Washers.
LED Underwater Lights,
LED Neon Flex
LED Inground Lights
LED Garden Lamp

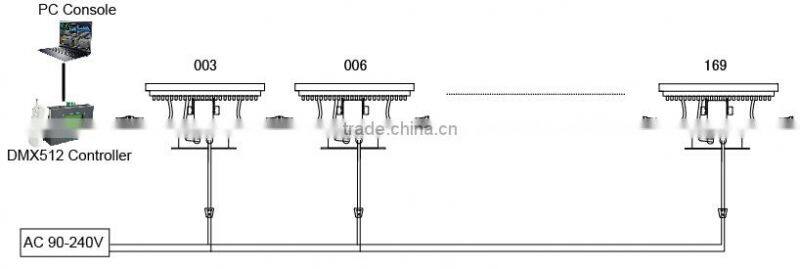

Connecting to DMX directly diagram
Our firm brings a team of successful lighting manufactures and sales experts in the field of LED lighting production. We have over 12 years of professional experience in this field.Through the complete and rich information, you will easily find satisfactory services to meet your market demands.
We have a 2,000 square-meter factory and 124 experienced workers to produce different product. We strongly believe both the quality of our products and the productivity of our factory will fulfill any of your market needs.
Our raw material (LED) comes from Cree,Taiwan Epistar and Edison. And our all products (Nichia patented) can be available for Osram, sold in Europe and Japan. Our major business partners spread over the United States, Canada, Europe and the Middle East.
Our products show extremely long life span and stability in the function. We guarantee the lifespan is over 50,000 hours.
We can deliver samples to you within 3 days, and deliver your ordered products within 7 to 15 days.
IP65 Raining Test for LED Wall Washers
Workmanship for LED Wall Washers
CE,ROHS,IP65,IP68 Certificates

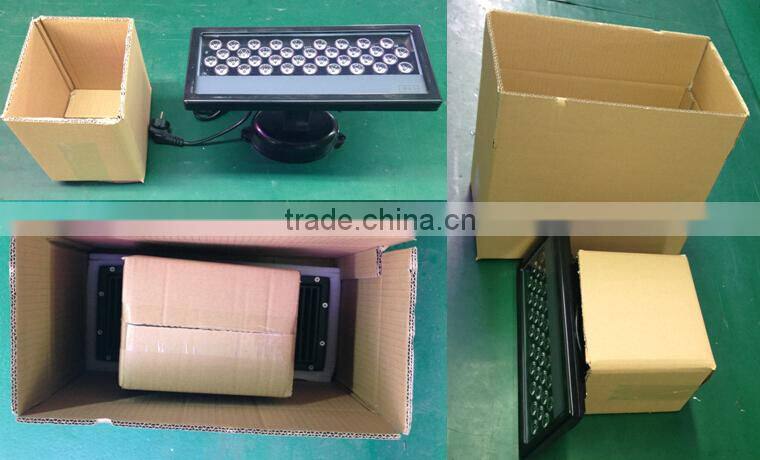

Packaging Picture for DMX LED Wall Washer
Photo Gallery for Exhibitions
Some project abroad
Please feel free to contact us anytime!
