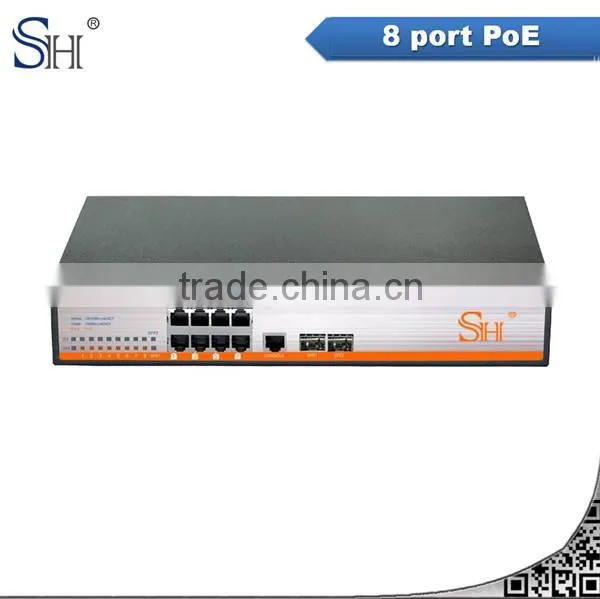

2015 new Full gigabit 8 port switch board poe
The SH-308 series enterprise switches are 10/100/1000M unmanaged PoE Switches. The SH-308 utilizes cutting-edge hardware and SH LINK Operating System Platform (TOS) software to provide high-performance access to an enterprise campus network. The SH-308 series switches integrates many advanced technologies in terms of reliability, security, and energy saving. It employs simple and convenient means of installation and maintenance to reduce customers' OAM cost and help enterprise customers build a next-generation IT network.
- 8*10/100/1000Base-T and PoE
- Comply with IEEE802.3af/at PoE/PoE plus, up to 15.4W/30W
- Auto 10/100/1000Base-T
- Auto MDI/MDI-X
- Auto full/half duplex
- Store and forward switching
- 1.6G backplane bandwidth
- Class 2 Lightning protection on uplink port
- Support IEEE802.3x flow control
- Low consumption, good heat dissipation
Item |
Specifications |
Data Rate |
10/100/1000 Mbps |
Standard |
IEEE802.3 10Base-T, IEEE802.3u100Base-TX, IEEE802.3x Flow Control, IEEE802.3af, IEEE802.3at |
Transmission distance |
100m via Cat 5/5e/6 |
Input Voltage |
AC:110~240V/50~60Hz |
PoE Connector |
8*RJ45 |
Conversion means |
Store and forward |
Backplane Bandwidth |
1.8 G |
LED indicator |
POWER, POE, TP1~5 LLINK/ACT |
PoE |
End-span 1/2(+),3/6 (-) ; or optional Mid-span 4/5 (+), 7/8 (-) IEEE802.3af: voltage output 48~57VDC, 15.4W per Port; Total Power: 78W IEEE802.3at: voltage output 48~57VDC,30W per Port; Total Power: 150W |
Operating temperature |
0~55℃ |
Operating humidity |
90% max, non-condensing |
Storage temperature |
-20~70℃ |
Packet Forwarding Capacity |
10M:14880pps/port 100M:148809pps/port 1000M:1488095pps/port |
Bank T/T, CASH, ,
Delivery time: 1-3 days for samples; 5-10 days for bulk orders.
Logistics mode chosen according to customers.
1. What's your lead time?
1-3 days for samples; 5-7 days for bulk order.
2. Do you prodvide OEM or ODM?
Yes, OEM and ODM accessible.
3. Do you have MOQ?
Our MOQ is 1 piece.
4. Certifications from you?
CE FCC ROHS.
5. What's your price and quality?
SH LINK delicated to this field for 7 years, always do better to assist customers to expand more market and gain more profit. Here, competitive price and advantage quality are offered. We are looking forward to building up business relationship with you!
