Product Details
Place of Origin: | Guangdong, China | Brand Name: | SH | Model Number: | SH-308 |
Product Description

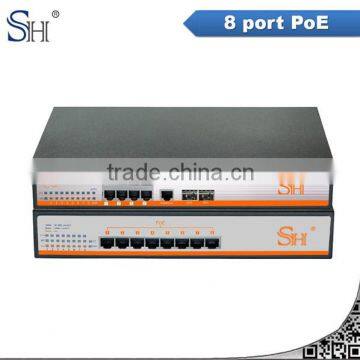

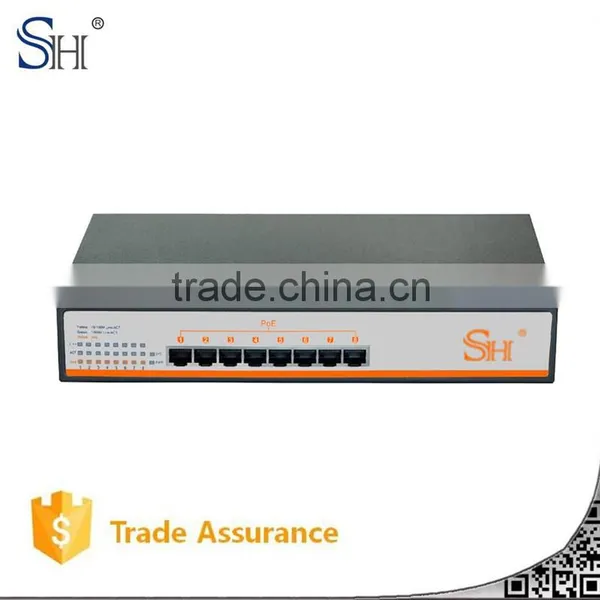

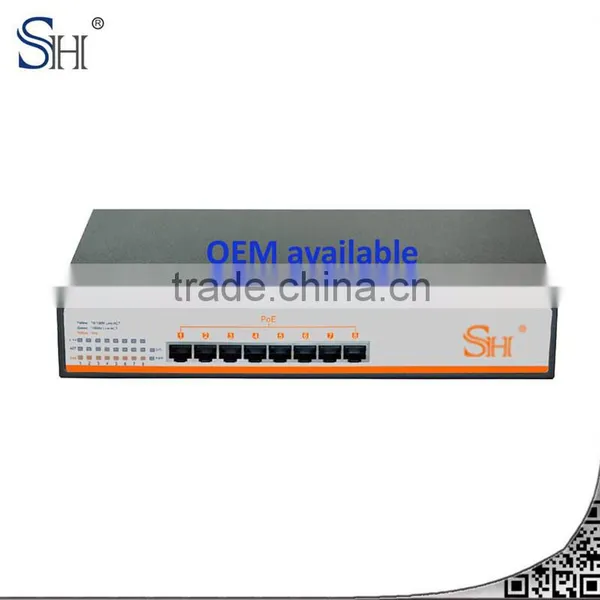

8 Port 10/100/1000M IEEE802.3af security CCTV PoE switch
The SH-308 series enterprise switches are 10/100/1000M unmanaged PoE Switches. The SH-308 utilizes cutting-edge hardware and SH LINK Operating System Platform (TOS) software to provide high-performance access to an enterprise campus network. The SH-308 series switches integrates many advanced technologies in terms of reliability, security, and energy saving. It employs simple and convenient means of installation and maintenance to reduce customers' OAM cost and help enterprise customers build a next-generation IT network.
- 8*10/100/1000Base-T and PoE
- Comply with IEEE802.3af/at PoE/PoE plus, up to 15.4W/30W
- Auto 10/100/1000Base-T
- Auto MDI/MDI-X
- Auto full/half duplex
- Store and forward switching
- 1.6G backplane bandwidth
- Class 2 Lightning protection on uplink port
- Support IEEE802.3x flow control
- Low consumption, good heat dissipation
Item | Specifications |
Data Rate | 10/100/1000 Mbps |
Standard | IEEE802.3 10Base-T, IEEE802.3u100Base-TX, IEEE802.3x Flow Control, IEEE802.3af, IEEE802.3at |
Transmission distance | 100m via Cat 5/5e/6 |
Input Voltage | AC:110~240V/50~60Hz |
PoE Connector | 8*RJ45 |
Conversion means | Store and forward |
Backplane Bandwidth | 1.8 G |
LED indicator | POWER, POE, TP1~5 LLINK/ACT |

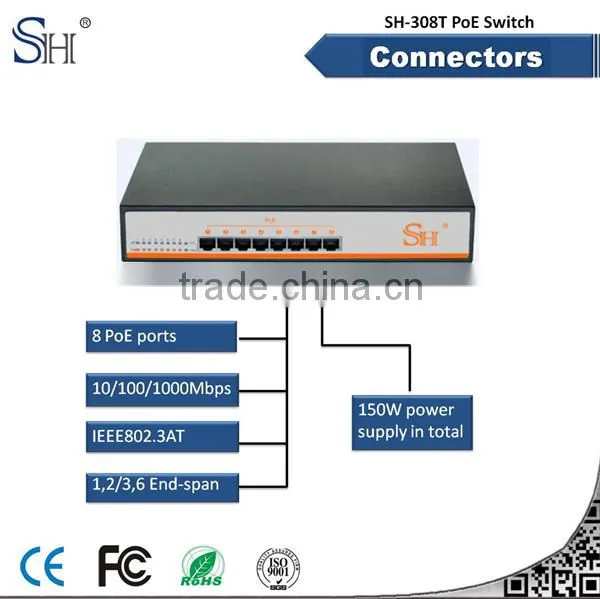

PoE | End-span 1/2(+),3/6 (-) ; or optional Mid-span 4/5 (+), 7/8 (-) IEEE802.3af: voltage output 48~57VDC, 15.4W per Port; Total Power: 78W IEEE802.3at: voltage output 48~57VDC,30W per Port; Total Power: 150W |
Operating temperature | 0~55℃ |
Operating humidity | 90% max, non-condensing |
Storage temperature | -20~70℃ |
Packet Forwarding Capacity | 10M:14880pps/port 100M:148809pps/port 1000M:1488095pps/port |
Usual payment T/T Paypal etc, are availble . Cash also ok! In addition, Trade Assurance on Alibaba is also available.
Delivery time: 1-3 days for samples; 4-10 days for bulk orders.
Logistics mode chosen according to customers.
1. Can you offer samples?
Yes, sample is available.
2. What's your lead time?
1-3 days for samples; 5-7 days for bulk order.
3. Certifications from you?
CE FCC RHOS etc.
4. Do you have MOQ?
There is no requirement for MOQ in SH LINK.
5. What's your price and quality?
SH LINK still do best to serve customers. Cost-effective products are supported! Let's talk more for details!
