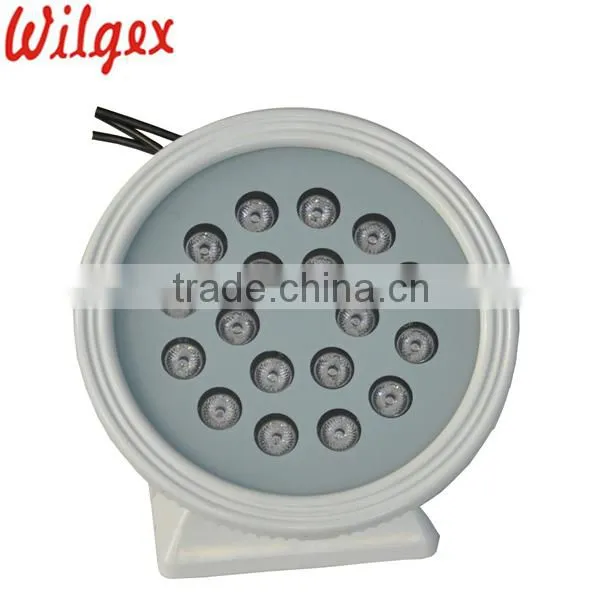

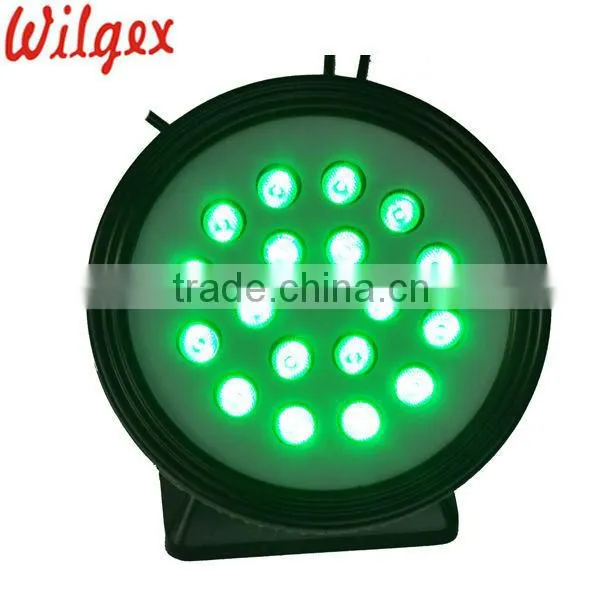

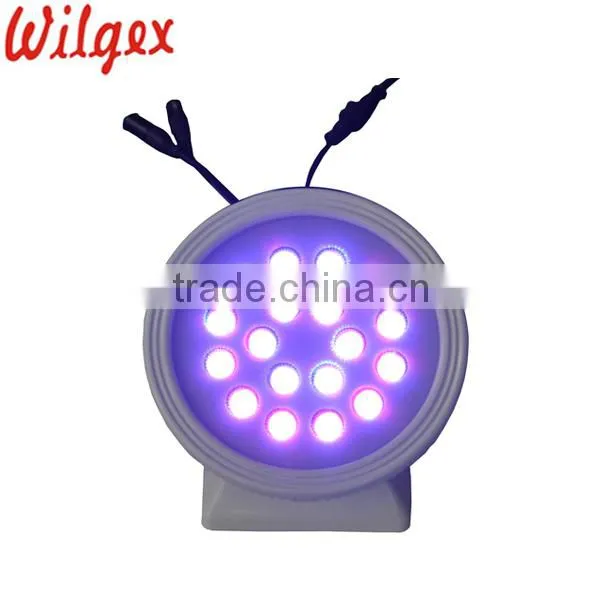

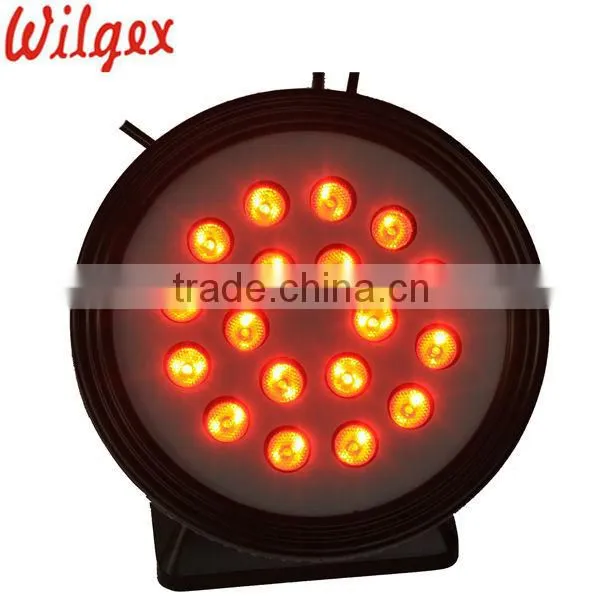

DMX512 outdoor light 18Px3w RGB 3IN1 led wall washer stage light
Product Features:
• High brightness LEDs creates a bright wash of light,projecting up to 65 feet
• Link up to 30 DMX LED Wall Washer in a single run
• Link multiple controllers together to create large scale synchronized lighting effects
• Suitable for heavy duty use(more than 12 hours per day)
• Can meet the most specific lighting-effect requirements with 16,777,216 possible
available colors
• Mounting gears and simple rotating mechanisms included to aid easy installation and removal.
• Adjustable angle design and easy installation maximized on site flexibility
• RGB color-changing modes operating through our DMX controller can handle
sophisticated tasks
• IP65 rated-perfect for both indoor and outdoor applications
• High quality LEDs used,ensuring DMX LED Wall Washer a long life span of over 50,000 hours
Other Features of led bar light:
• Color range: Different brightness of red, green and blue LED combined to produce 16, 000, 000 colors
• LED quantity: 18pcs power LEDs/3W RGB 3IN1 Power consumption: 18W, Shell material: Aluminum alloy (D230*H181mm, D9.06XH7.13inches)
• Light projecting distance: 30m, Waterproof: IP65
• Weight: 4.4kg per unit.
• Working mode:
A: Independent mode: We can adjust the internal functions of lighting by button on the back of lighting
B: DMX mode
C: Master/Slave function under independent mode (Auto online function)
D: 3 functions (flash changing, fade changing, chasing changing) or 10 functions(including seven static single color) for your choice freely.
Application& Uses:

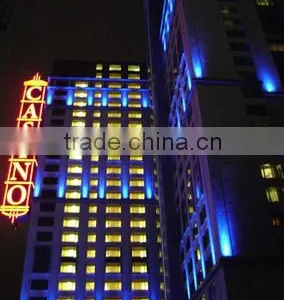

LED bar light Series are mainly used for decorating and highlighting building frame, garden, restaurant and even stage etc, by offering colorful and magic environment.
• Indoor/Outdoor social events:parties,weddings
• Corporate engagements & trade shows
• Restaurant & dance clubs
• Garden & outdoor accents
• Exterior & architectural lighting
• Indirect & accent lighting
• Billboard & outdoor signage
Certificates:
CE,RoHS
Specifications
Physical Specifications |
|
Dimension | D230mmxH181mm(D9.06xH7.13inches) |
Housing | Aluminum alloy(Silver/Black color) ;tempered glass |
Net weight | 4.4KG |
Rotary Angle | 150° |
IP Rating | IP65(suitable for dry,wet,and damp environments) |
Electrical Specifications |
|
Lighting Source | 18 Power LED/3W RGB 3IN1 |
LED Quantity | 18 LEDs |
Operation Temperature | -20°C~40°C(-4°F~104°F) |
Input Voltage | 100-256V AC |
Power Consumption | 54W |
Control System | Independent,DMX,Master/Slave mode |
Optical Specification |
|
Chip type | Edison |
Beam Angle | 10 ° 15 ° ,25 ° ,30°,45°,60°,90°,30 °*60 ° |
Color | RGB 3in1 |
Lighting Distance | 30 meters |
Three Different Shapes for LED Wall Washers
Quick Links to other categories of Wilgex's product
Linear Type LED Wall Washers,
Round Type LED Wall Washers.
LED Underwater Lights,
LED Neon Flex
LED Inground Lights
LED Garden Lamp
Illustration of structures
Connecting to DMX directly diagram
Our firm brings a team of successful lighting manufactures and sales experts in the field of LED lighting production. We have over 12 years of professional experience in this field.Through the complete and rich information, you will easily find satisfactory services to meet your market demands.
We have a 2,000 square-meter factory and 124 experienced workers to produce different product. We strongly believe both the quality of our products and the productivity of our factory will fulfill any of your market needs.
Our raw material (LED) comes from Cree,Taiwan Epistar and Edison. And our all products (Nichia patented) can be available for Osram, sold in Europe and Japan. Our major business partners spread over the United States, Canada, Europe and the Middle East.
Our products show extremely long life span and stability in the function. We guarantee the lifespan is over 50,000 hours.
We can deliver samples to you within 3 days, and deliver your ordered products within 7 to 15 days.
IP65 Raining Test for LED Wall Washers

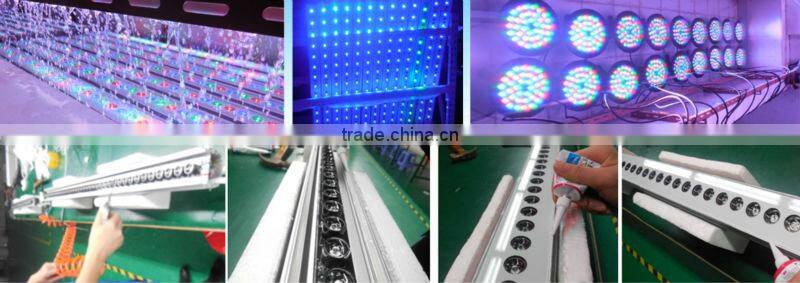

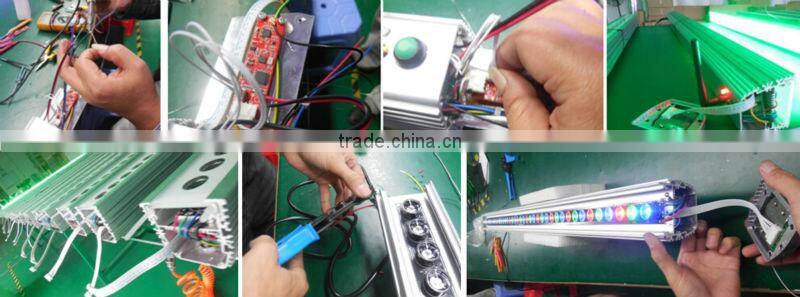

Workmanship for LED Wall Washers
CE,ROHS,IP65,IP68 Certificates

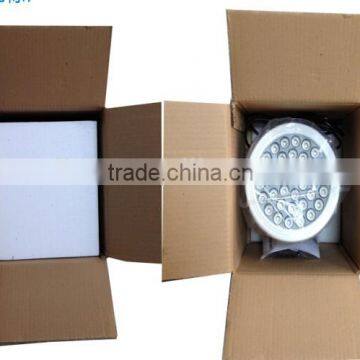

Packaging Picture for DMX LED Wall Washer

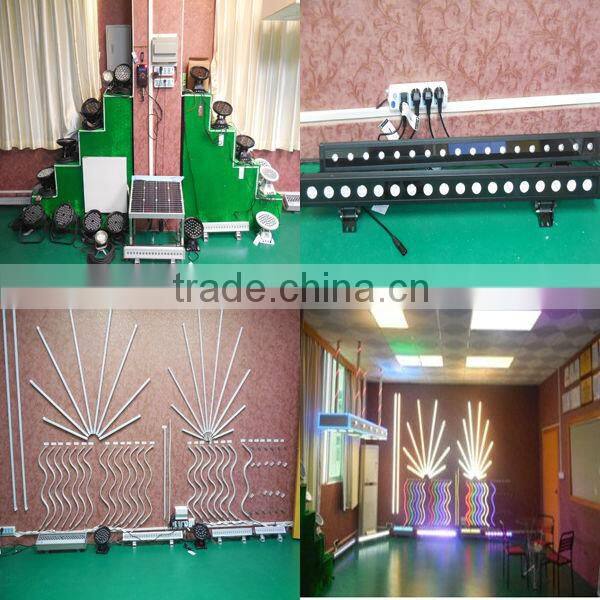

Photo Gallery for Exhibitions

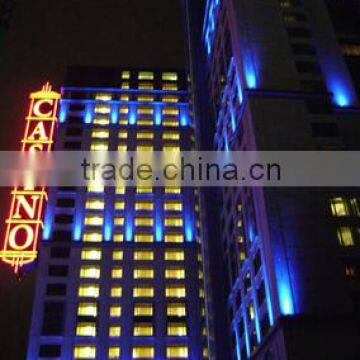

Some project abroad
Our Guarantee
1. We will arrange delivery of the goods on time.
2. Within the warranty period, we will bear all the quality problem of our products.
3. Without the warranty period, we will despatch the replacement parts to help fix the lamps, but the parts will be charged.
4. Without any problem, we will gain the feedbacks of our products to help improve better products.
5. When the goods are damaged, you should take some photos, we will send you the extra lamp as soon as possible so that it won't effect your daily sales. We bear the product cost and the freight cost. And then, we will try to find the reason and solve it, to make sure that this kind of problem won't happen again.
-------------------------------------------------------------A Letter to Clients------------------------------------------------------------
My dear customers,
Thanks for choosing our products for inquiry, congratulations that you’ve made a wise choice for what you are going to purchase!
Our products are positioned in middle and top grade market with excellent quality. We will not bring any low quality products into the market.
Technology ♦ Art ♦ Lights ♦ Innovation ♦ Quality ♦ Service
To purchase any of WILGEX’s products, you can enjoy the services directly as follows:
♥ Your special design are warmly welcomed(OEM, ODM services), we have 8 years rich experience in different projects
♥ 100% of WILGEX’S products are for exported.
♥ We promise to offer the best price with high quality products to all the buyers. At the beginning of the negotiation, you purchase with us, you are enjoying our perfect services and the assurance of high quality.
♥ We could offer you best services when the quality problems appear, our target is to solve your problem without any of your costs. We will send you the extra accessories to help you fix the lamp, and we take the costs for international express. If accessories couldn’t solve the problem, we will send you the replacement lamp directly by express (for free) . What you have to do is to return the failed lamp to us via our express account.
♥ Customers are partner, Customers are friends, we are in one boat for benefits!
Our Pursuit High efficiency work! High quality products! High quality life!
Out style No excuse! Do right thing! Done right thing!
Our Slogan Action create results. Only utmost can get good results.
Our Principle Satisfy and exceed customer’s expectation by highest quality and promptest delivery!
We are a group of ordinary people, but we can do extraordinary work! Jiawen is growing to be bigger and stronger!!!
Please feel free to contact us anytime!
