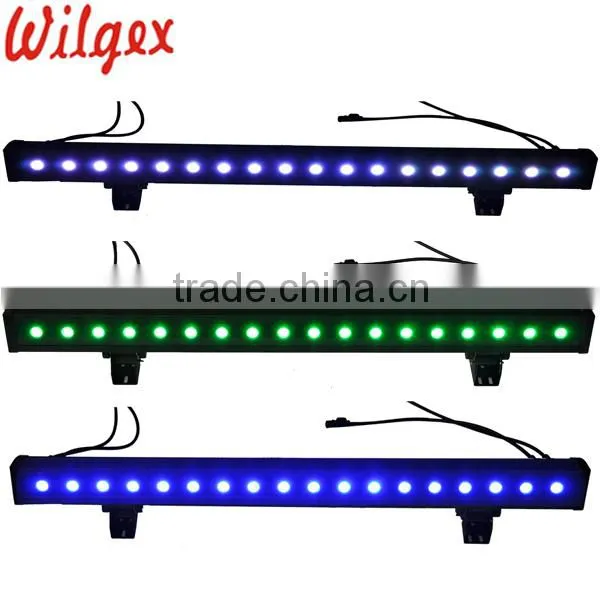

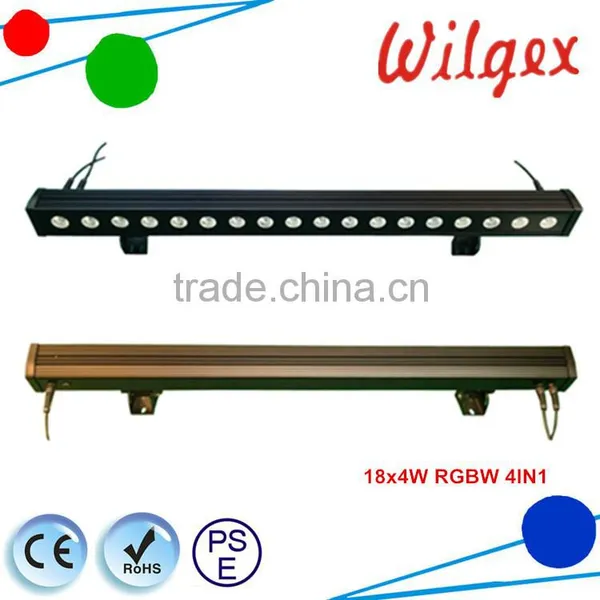

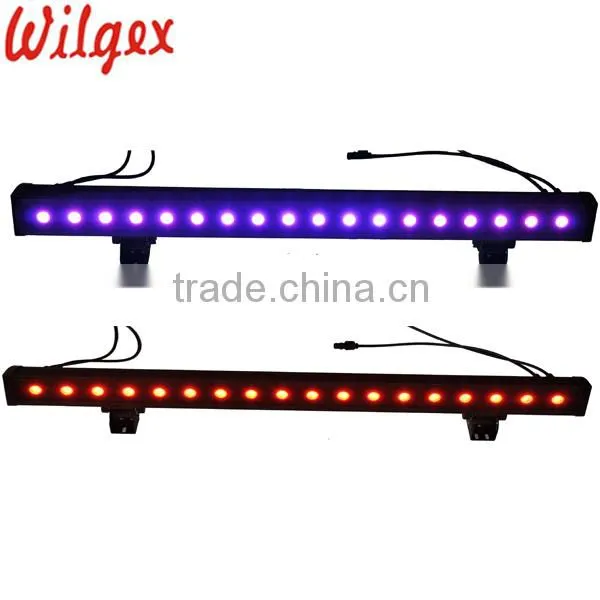

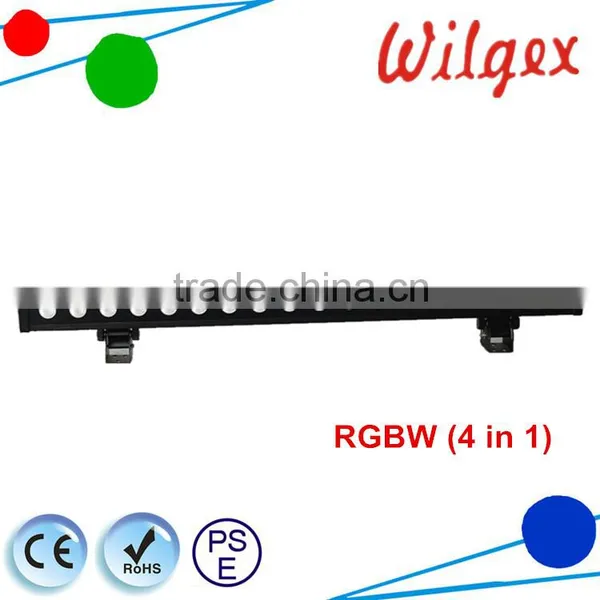

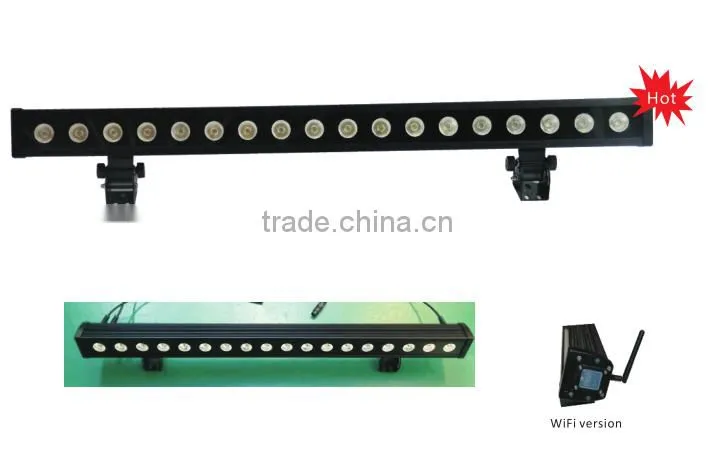

Dongguan IP65 outdoor wireless dmx512 rgbw led wall washer
Specification
| WJ-LWW-5-18x4W-RGBW ( 4 in 1 )-L1000mm | |
|
| Power consumption | 72 Watts | |
| Input voltage | 100V-256V AC | |
| Light source | 18 Power LED/4W | |
| Color | RGBW(4in1) | |
| Rotary angle | 150° | |
| Size | L1000mm*W130mm*H82mm | |
| Weight | 5.9KG | |
| Working mode | Independent, DMX, Master-Slave mode | |
| Housing material | Aluminum alloy | |
| Beam Anglel | 15°,30°,45°,60°,90°,30°*90° | |
| Working temperature | -20°-60° | |
| IP Ratingnt | IP65 | |
Features & Benefits
- High brightness, engergy saving, enviornment protection & Safery
- Adopt imported high brightness and High power LEDs, build-in constant current waterproof driver to ensure the led wall washer stable performance
- Good quality Die-casting aluminum housing, anodic oxidation treatment, and makes elegant appearance
- Use toughened glass with silicone rubber sealant and Internal with the epoxy resin sealant to ensure explosionproof, waterproof and dustproof
- Refined diecast alu. housing & rational air circulation to enable the led wall washer with excellent heat dissipation
- Three working mode: independent, DMX, Master/Slave mode
- Upgraded built-in controller makes easy operation without separate extra connection.
- WiFi (Wireless) control rgb led wall washer
- Rotatable base to fit up different angles
- IP65 protection grade, suitable for heavy duty, both indoor & outdoor applications
- High brightness, projecting up to 65 feet
- Long life of over 50,000 hours

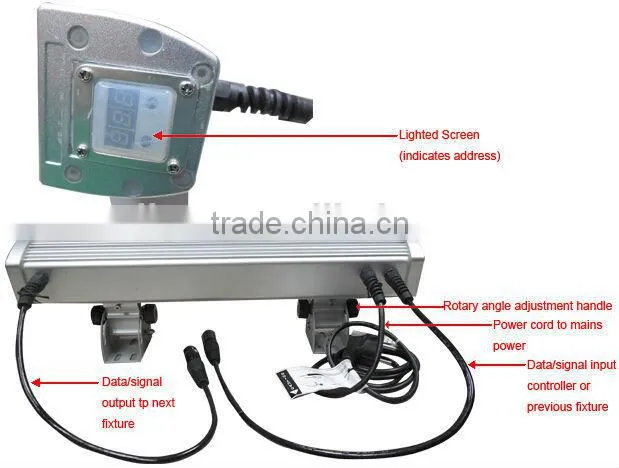

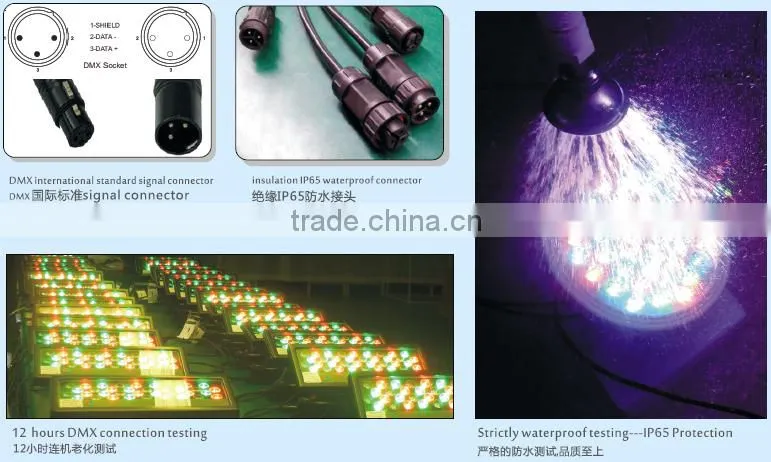

Illustration of structure

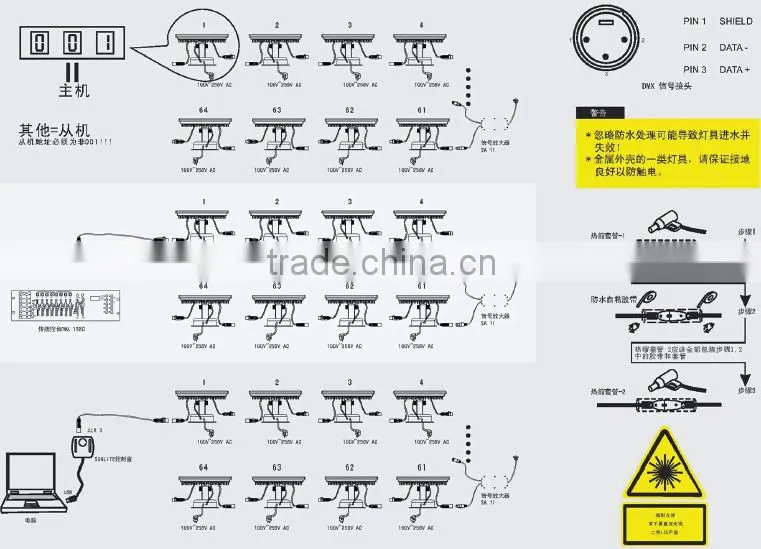

Connection
1. Independent mode
1) Build-in 12 programs optional
2) 1-9 class gray degree dimmer
2. DMX mode
1) Support the international standard DMX 512 signal
2) (R, G, B) 3 channels are available
3) DMX 256 class gray degree dimmer.
4) DMX programmable
3. Master-Slave mode
Set any led wall washer ’s DMX address of master as 001, others are set as slave
(address can be anyone except 001), change function on 001, all the lights will work synchronously.

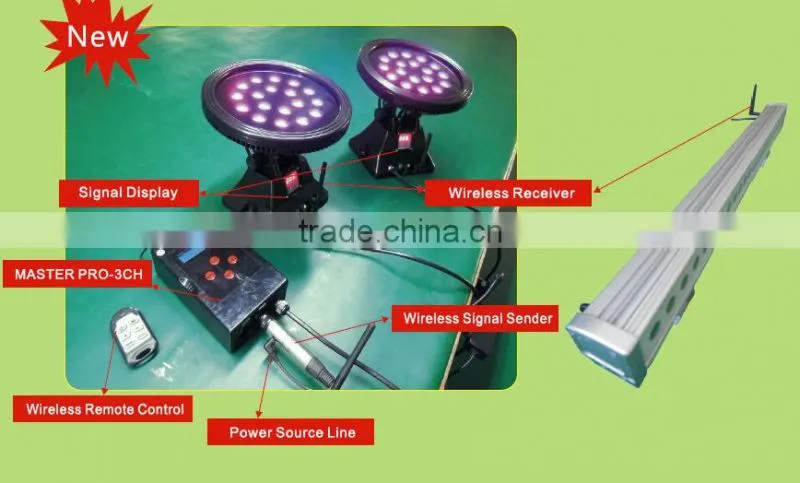

WiFi / Wireless control

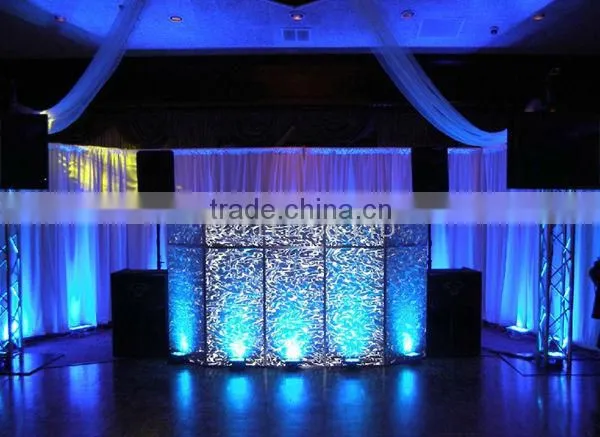

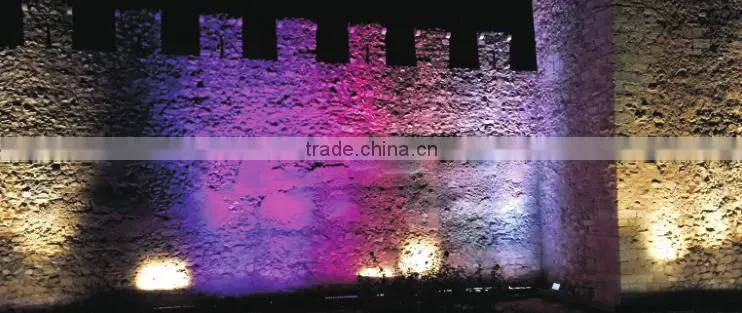

Application
The led wall washer is mainly used for decorating and highlighting in building frame, garden, ect, which can generate various of color changing effects, such as flashing, fading, steady, seven color jumping synchronously ect.

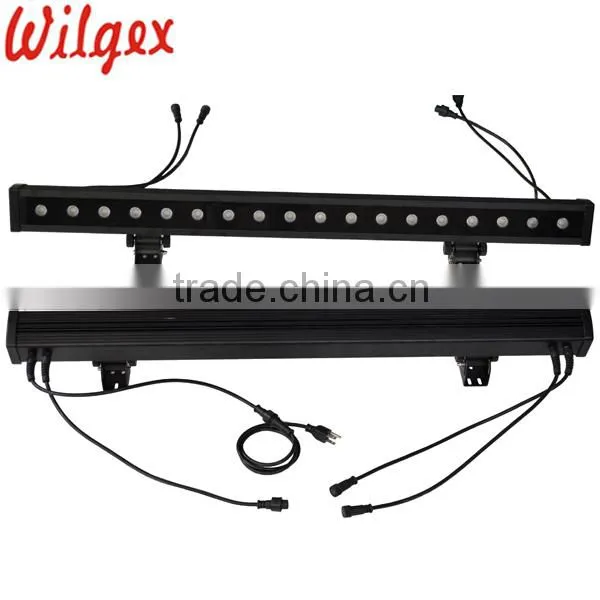

Package

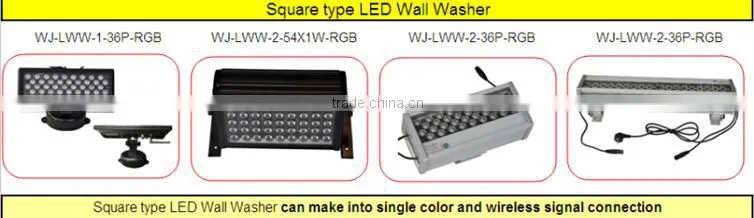

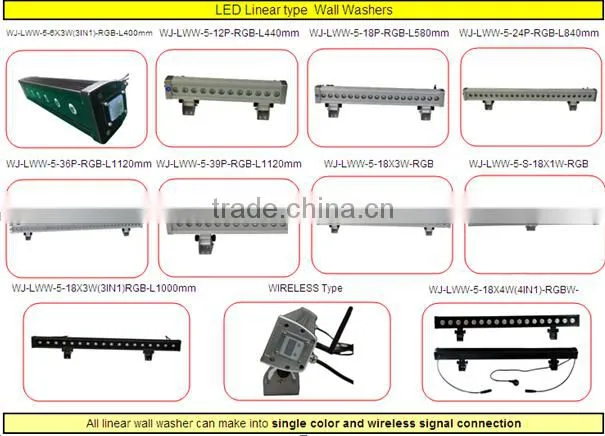

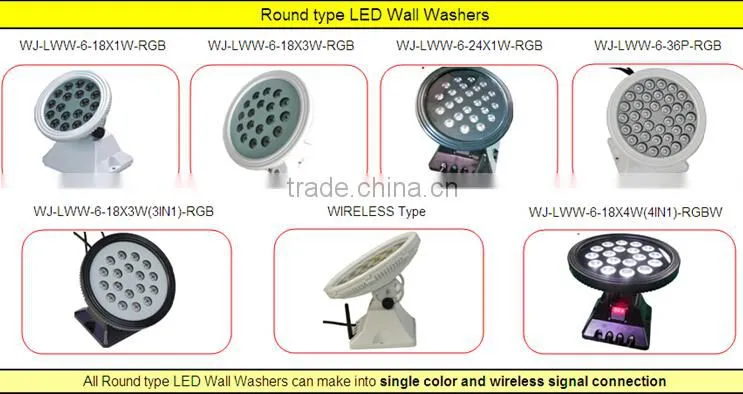

Different shape for your option
Dongguan Wilgex Lighting Co., Ltd was specialized in developing, designing and manufacturing LED decorating and lighting proodcuts for more than 12 years.
Our products assortment includes LED neon flex, LED wall washer, LED underwater / fountain / pool light, and LED undergroud light, etc.
All of our rgbw led wall washer are manufactured to the highest industry standards and some of the best quality components available such as San'an, Edison and CREE LEDs, and MeanWell Power Supplies and are backed by a conservative 2 Year Warranty. All of our led wall washer are CE and RoHS certified and can reach to IP65 waterproof grade.
