Power over Ethernet space-saving hot sale series mini poe switch

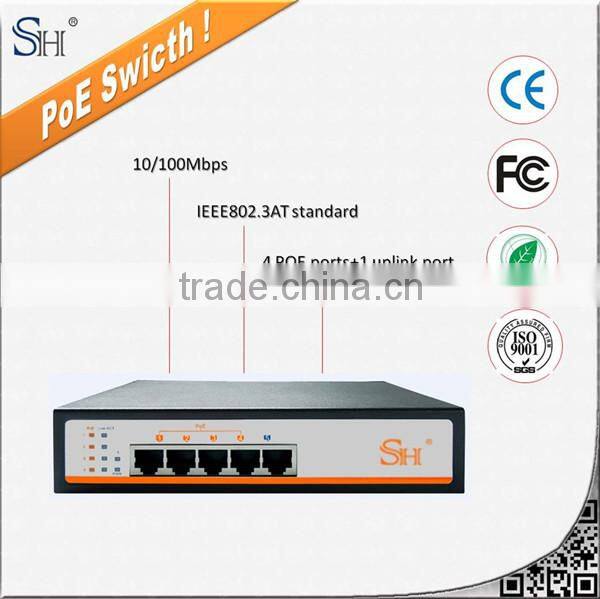

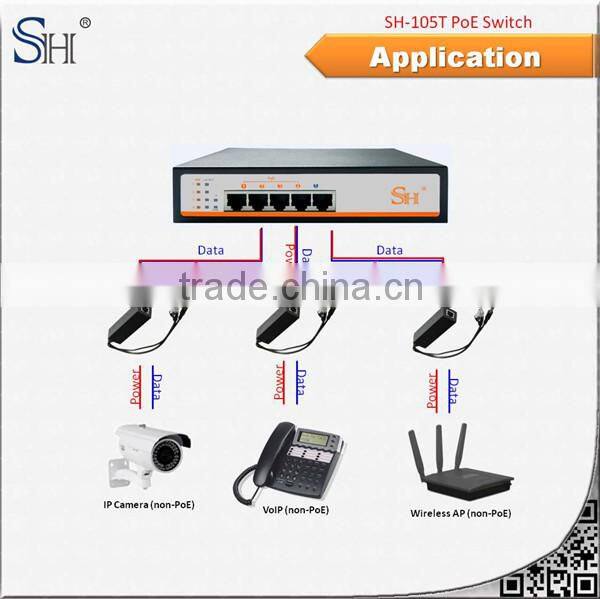

SH-105 Fast Ethernet PoE Switch provides 4*10/100Base-T while providing power over Ethernet (PoE) to those powered device compliant with IEEE802.3af/IEEE802.3at such wireless AP, VoIP, IP camera, etc. as well as 1*10/100Base-T uplink port. It breaks through the limitation of power lines, especially for those occasions hard to deploy the power wires. It is widely used in the home and enterprise network, HD IP security system…

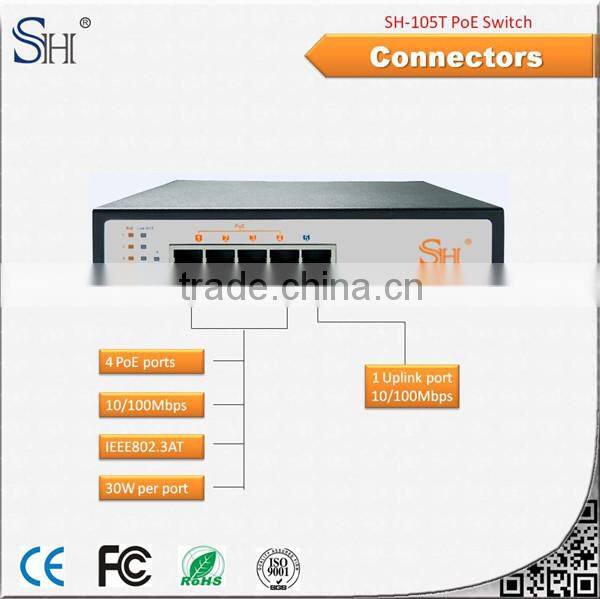

- 4*10/100Base-T and PoE, 1*10/100Base-T uplink
- Comply with IEEE802.3af/at PoE/PoE plus, up to 15.4W/30W
- Auto 10/100Base-T
- Auto MDI/MDI-X
- Auto full/half duplex
- Store and forward switching
- 1G backplane bandwidth
- Class 2 Lightning protection on uplink port
- Support IEEE802.3x flow control
- Low consumption, good heat dissipation
Item |
Specifications |
Data Rate |
10/100Mbps |
Standard |
IEEE802.3 10Base-T, IEEE802.3u100Base-TX, IEEE802.3x Flow Control, IEEE802.3af, IEEE802.3at |
Transmission distance |
100m via Cat 5/5e/6 |
Electrical Connector |
5*RJ45 |
PoE Connector |
4*RJ45 |
Conversion means |
Store and forward |
Backplane Bandwidth |
1G |
LED indicator |
POWER, POE, TP1~5 LLINK/ACT |
PoE |

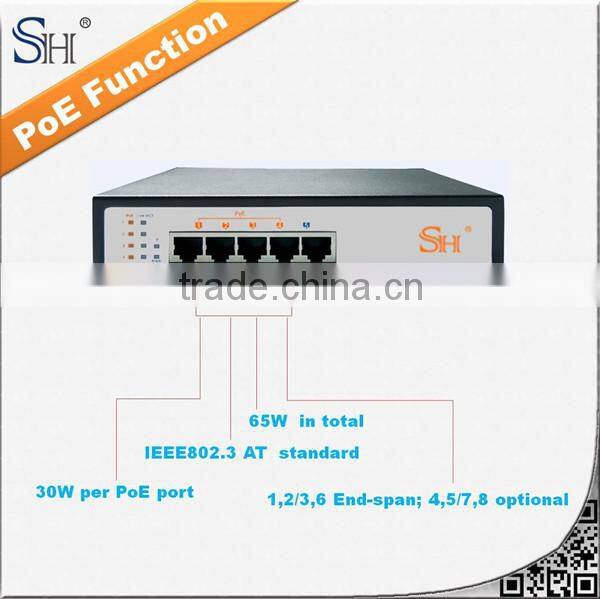

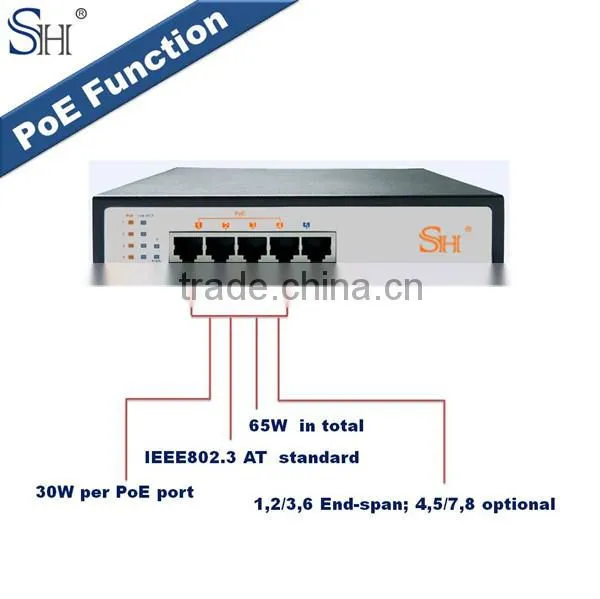

End-span 1/2(+),3/6 (-) ; or optional Mid-span 4/5 (+), 7/8 (-) IEEE802.3af: voltage output 48~57VDC, 15.4W per Port; Total Power: 78W IEEE802.3at: voltage output 48~57VDC,30W per Port; Total Power: 130W |
Operating temperature |
-0~55℃ |
Operating humidity |
90% max, non-condensing |
Storage temperature |
-20~70℃ |
|
Part Number |
Description |
SH-105F |
5-port 10/100M Fast Ethernet PoE Switch, 15.4W per port, end-span |
SH-105T |
5-port 10/100M Fast Ethernet PoE Switch, 30W per port, end-span |
SH-105Fm |
5-port 10/100M Fast Ethernet PoE Switch, 15.4W per port, mid-span |
SH-105Tm |
5-port 10/100M Fast Ethernet PoE Switch, 30W per port, mid-span |
Bank T/T, CASH, ,
Delivery time: 1-3 days for samples; 5-10 days for bulk orders.
Logistics mode chosen according to customers.
Product Show
1. Can you offer samples?
Yes, sample is available.
2. What's your lead time?
1-3 days for samples; 5-7 days for bulk order.
3. Certifications from you?
CE FCC RHOS etc.
4. Do you have MOQ?
There is no requirement for MOQ in SH LINK.
5. What's your price and quality?
SH LINK still do best to serve customers. Cost-effective products are supported! Let's talk more for details!
