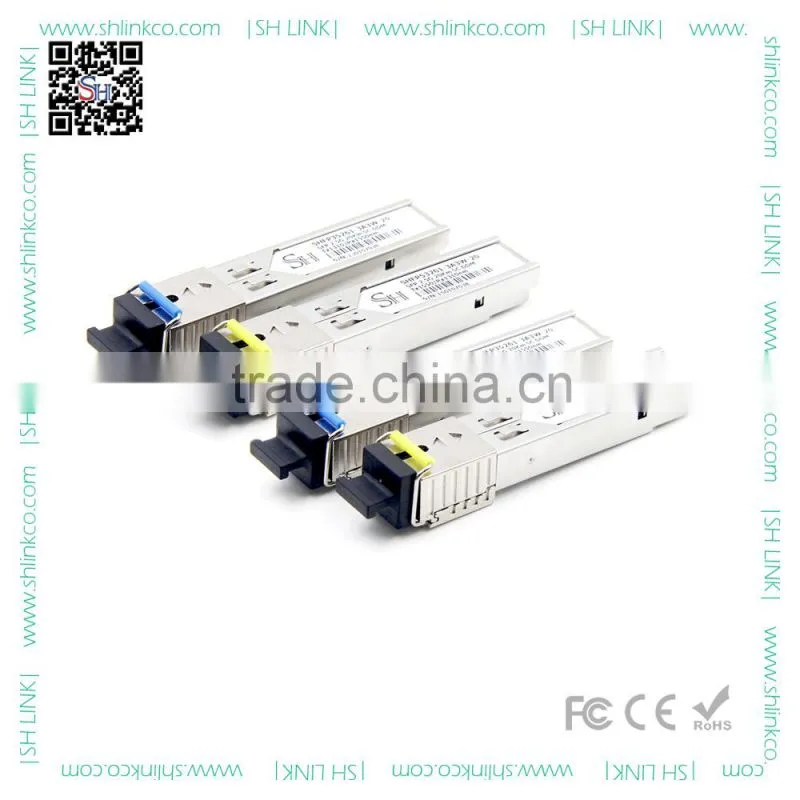

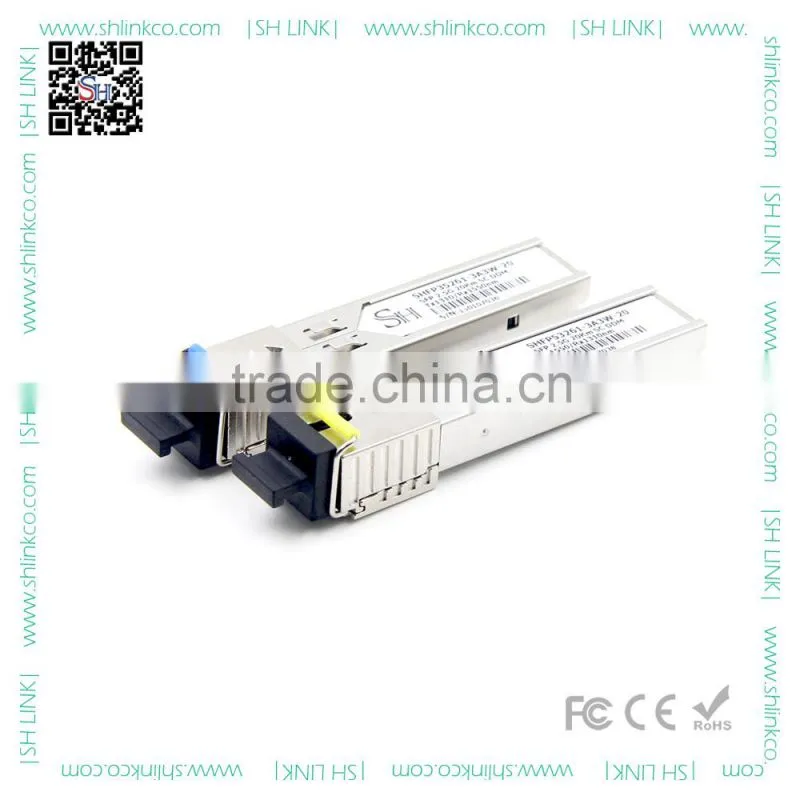

WDM simplex lc sc connector optional 2.5G Bidirectional optical module
SHFP-2G-B20 high performance, cost-effective single mode single fiber 20km 2.5G BiDi SFP transceiver complies with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It adopts high-performance DFB transmitter and high-sensitivity PIN receiver, provides up to 13dB link budge for SONET OC-48 / SDH STM -16 applications up to 20km on a single core single mode fiber.
- Up to 2.67Gb/s Data Links
- Hot-Pluggable
- Simplex LC connector; SC optional
- 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
- Power Supply :+3.3V
- Power consumption<1W
- Temperature Range: 0~ 70°C, -40°C to 85°C/-5°C to 85°C available
- RoHS compliant
- SONET OC-48 / SDH STM -16
- SONET OC-12 / SDH STM -4
- SONET OC-3 / SDH STM -1
- Gigabit Ethernet
- 1x/2xFibre Channel
- Compatible with many branded switches, such as:
Part Number |
Data Rate |
Distance |
Wavelength |
Laser |
Fiber |
DDM |
Connector |
SHFP-2G-B20-35 |
2.5Gb/s |
20km |
TX1310nm/RX1550nm |
DFB/PIN |
SM |
Yes |
Simplex LC |
SHFP-2G-B20-53 |
2.5Gb/s |
20km |
TX1550nm/RX1310nm |
DFB/PIN |
SM |
Yes |
Simplex LC |
SHFP-2G-B20-35-SC |
2.5Gb/s |
20km |
TX1310nm/RX1550nm |
DFB/PIN |
SM |
Yes |
Simplex SC |
SHFP-2G-B20-53-SC |
2.5Gb/s |
20km |
TX1550nm/RX1310nm |
DFB/PIN |
SM |
Yes |
Simplex SC |
SHFP-2G-B20-34 |
2.5Gb/s |
20km |
TX1310nm/RX1490nm |
DFB/PIN |
SM |
Yes |
Simplex LC |
SHFP-2G-B20-43 |
2.5Gb/s |
20km |
TX1490nm/RX1310nm |
DFB/PIN |
SM |
Yes |
Simplex LC |
SHFP-2G-B20-34-SC |
2.5Gb/s |
20km |
TX1310nm/RX1490nm |
DFB/PIN |
SM |
Yes |
Simplex SC |
SHFP-2G-B20-43-SC |
2.5Gb/s |
20km |
TX1490nm/RX1310nm |
DFB/PIN |
SM |
Yes |
Simplex SC |
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
||
Transmitter Section: | ||||||||
Center Wavelength |
SHFP-2G-B20-35 |
λc |
1290 |
1310 |
1330 |
nm |
|
|
SHFP-2G-B20-34 |
1290 |
1310 |
1330 |
|
||||
SHFP-2G-B20-53 |
1530 |
1550 |
1570 |
|
||||
SHFP-2G-B20-43 |
1470 |
1490 |
1510 |
|
||||
Spectral Width |
σ |
|
|
1 |
nm |
|
||
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
||
Optical Output Power |
Pout |
-5 |
|
0 |
dBm |
1 |
||
Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
||
Optical Rise/Fall Time |
tr / tf |
|
|
260 |
ps |
2 |
||
Relative Intensity Noise |
RIN |
|
|
-120 |
dB/Hz |
|
||
Total Generated Transmitter Jitter (peak to peak) |
JTXp-p |
|
|
0.07 |
UI |
|
||
Total Generated Transmitter Jitter (rms) |
JTXrms |
|
|
0.007 |
UI |
|
||
Eye Mask for Optical Output |
Compliant with eye mask Telcordia GR-253-GORE |
|
||||||
Receiver Section: |
|
|||||||
Optical Input Wavelength |
SHFP-2G-B20-35 |
λc |
1530 |
1550 |
1570 |
nm |
|
|
SHFP-2G-B20-34 |
1470 |
1490 |
1510 |
|
||||
SHFP-2G-B20-53 |
1290 |
1310 |
1330 |
|
||||
SHFP-2G-B20-43 |
1290 |
1310 |
1330 |
|
||||
Receiver Overload |
Pol |
0 |
|
|
dBm |
3 |
||
RX Sensitivity |
Sen |
|
|
-18 |
dBm |
3 |
||
RX_LOS Assert |
LOS A |
-35 |
|
|
dBm |
|
||
RX_LOS De-assert |
LOS D |
|
|
-19 |
dBm |
|
||
RX_LOS Hysteresis |
LOS H |
0.5 |
|
|
dB |
|
||
General Specifications: | ||||||||
Data Rate |
BR |
155 |
|
2667 |
Mb/s |
|
||
Bit Error Rate |
BER |
|
|
10-12 |
|
|
||
Max. Supported Link Length on 9/125μm SMF2.5Gb/s |
LMAX |
|
20 |
|
km |
|
||
Total System Budget |
LB |
13 |
|
|
dB |
|
||
