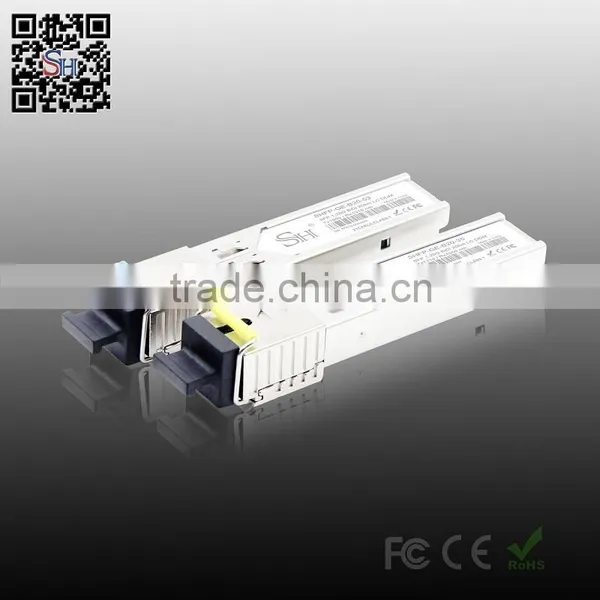

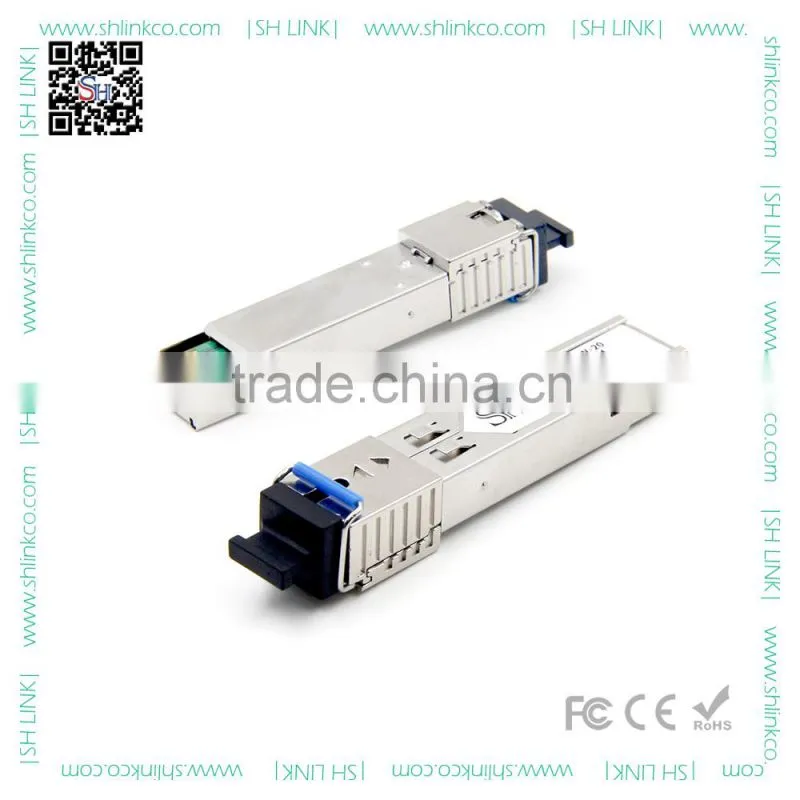

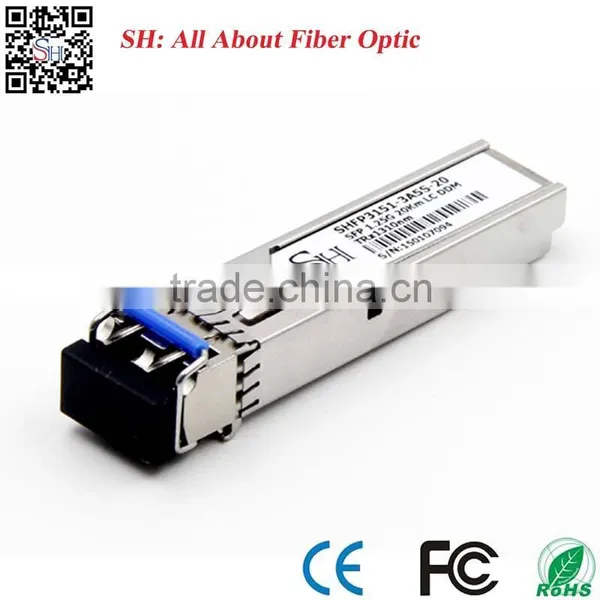

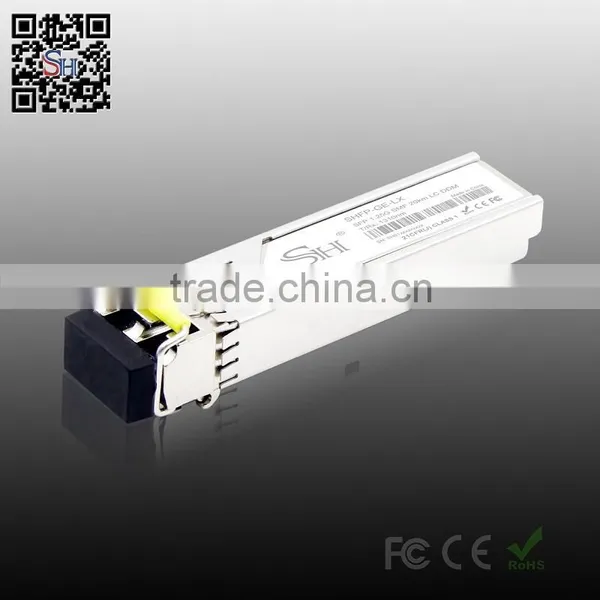

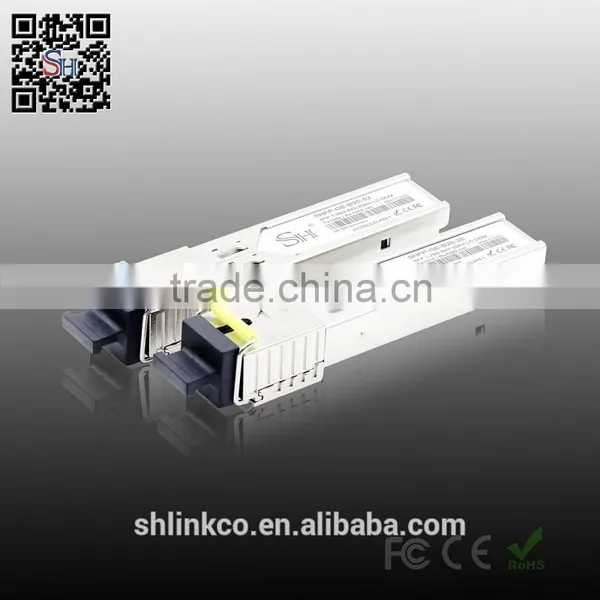

Hot Sale Optical Transceiver DDM simplex LC 1.25G BiDi SFP Module
SHFP-GE-B20 high performance, cost-effective 1.25G BiDi SFP transceiver complies with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It adopts high-performance FP transmitter and high-sensitivity PIN receiver, provides up to 14dB link budge for Gigabit Ethernet applications up to 20km on a single core single mode fiber.
- Up to 1.25Gb/s Data Links
- Hot-Pluggable
- Simplex LC connector
- 1310nm FP transmitter, PIN photo-detector
- 20km on a single core SMF
- 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
- Power Supply :+3.3V
- Power consumption<1W
- Temperature Range: 0~ 70°C, -40°C to 85°C/-5°C to 85°C available
- RoHS compliant
- 1000Base-LX Ethernet
- Metro/Access Networks
- 1G Fibre Channel
- Other Optical Links
- compatible with many switches,such as:
Part Number |
Data Rate |
Distance |
Wavelength |
Laser |
Fiber |
DDM |
Connector |
SHFP-GE-B20-35 |
1.25Gb/s |
20km |
TX1310nm/RX1550nm |
FP/PIN |
SM |
Yes |
Simplex LC |
SHFP-GE-B20-53 |
1.25Gb/s |
20km |
TX1550nm/RX1310nm |
DFB/PIN |
SM |
Yes |
Simplex LC |
SHFP-GE-B20-35-SC |
1.25Gb/s |
20km |
TX1310nm/RX1550nm |
FP/PIN |
SM |
Yes |
Simplex SC |
SHFP-GE-B20-53-SC |
1.25Gb/s |
20km |
TX1550nm/RX1310nm |
DFB/PIN |
SM |
Yes |
Simplex SC |
SHFP-GE-B20-34 |
1.25Gb/s |
20km |
TX1310nm/RX1490nm |
FP/PIN |
SM |
Yes |
Simplex LC |
SHFP-GE-B20-43 |
1.25Gb/s |
20km |
TX1490nm/RX1310nm |
DFB/PIN |
SM |
Yes |
Simplex LC |
SHFP-GE-B20-34-SC |
1.25Gb/s |
20km |
TX1310nm/RX1490nm |
FP/PIN |
SM |
Yes |
Simplex SC |
SHFP-GE-B20-43-SC |
1.25Gb/s |
20km |
TX1490nm/RX1310nm |
DFB/PIN |
SM |
Yes |
Simplex SC |
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section: | |||||||
Center Wavelength |
SHFP-GE-B20-35 |
λc |
1290 |
1310 |
1330 |
nm |
|
SHFP-GE-B20-34 |
1290 |
1310 |
1330 |
|
|||
SHFP-GE-B20-53 |
1530 |
1550 |
1570 |
|
|||
SHFP-GE-B20-43 |
1470 |
1490 |
1510 |
|
|||
Spectral Width(RMS) |
σRMS |
|
|
4 |
nm |
|
|
Optical Output Power |
Pout |
-9 |
|
-3 |
dBm |
1 |
|
Extinction Ratio |
ER |
9 |
|
|
dB |
|
|
Optical Rise/Fall Time |
tr / tf |
|
|
260 |
ps |
2 |
|
Relative Intensity Noise |
RIN |
|
|
-120 |
dB/Hz |
|
|
Total Jitter Contribution |
TX Δ TJ |
|
|
0.284 |
UI |
3 |
|
Eye Mask for Optical Output |
Compliant with IEEE802.3 z (class 1 laser safety) |
|
|||||
Receiver Section: |
|
||||||
Optical Input Wavelength |
SHFP-GE-B20-35 |
λc |
1530 |
1550 |
1570 |
nm |
|
SHFP-GE-B20-34 |
1470 |
1490 |
1510 |
|
|||
SHFP-GE-B20-53 |
1290 |
1310 |
1330 |
|
|||
SHFP-GE-B20-43 |
1290 |
1310 |
1330 |
|
|||
Receiver Overload |
Pol |
-3 |
|
|
dBm |
4 |
|
RX Sensitivity |
Sen |
|
|
-24 |
dBm |
4 |
|
RX_LOS Assert |
LOS A |
-40 |
|
|
dBm |
|
|
RX_LOS De-assert |
LOS D |
|
|
-25 |
dBm |
|
|
RX_LOS Hysteresis |
LOS H |
0.5 |
|
|
dB |
|
|
General Specifications: | |||||||
Data Rate |
BR |
|
1.25 |
|
Gb/s |
|
|
Bit Error Rate |
BER |
|
|
10-12 |
|
|
|
Max. Supported Link Length on 9/125μm SMF 1.25Gb/s |
LMAX |
|
20 |
|
km |
|
|
Total System Budget |
LB |
14 |
|
|
dB |
|
|
Other Optical Transceiver:

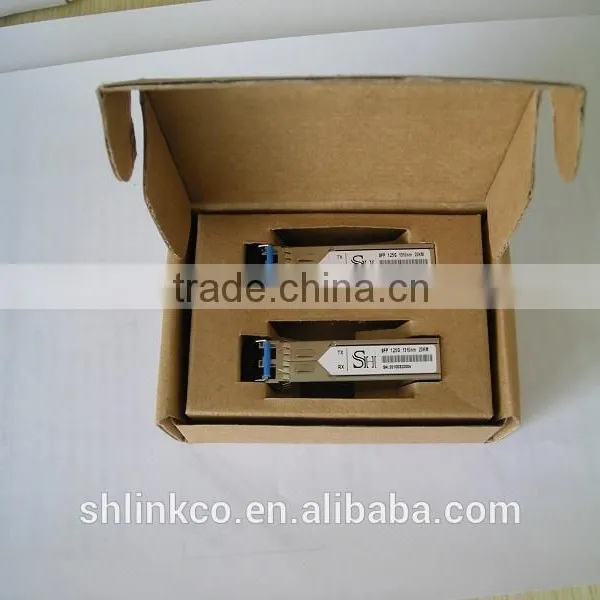

Various types of transportation are available, and we will arrange one according to your request.
FAQ
1. How about your products?
Our products have adopted certifications of CE, FCC and RoHS, which are highly-efficient and at reasonable prices.
2. How about your lead time?
It's 1~3 days for samples and 5~7 days for bulk orders after payments received.
3. How can I pay?
We accept Bank T/T, CASH, Paypal, Western Union...
4. How about your service?
We provide OEM, ODM and excellent after-sale services. If you have any questions, contact us! We provide support 24/7.
