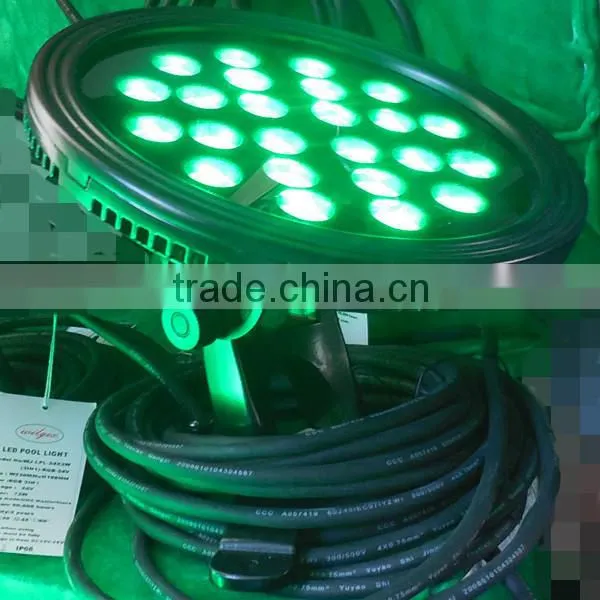

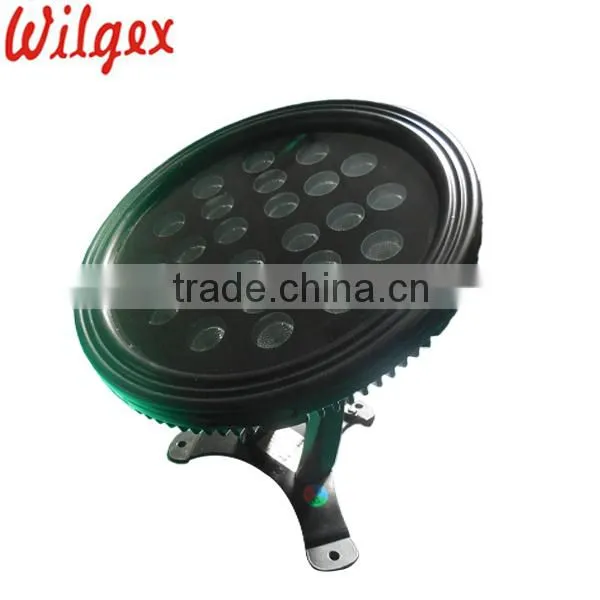

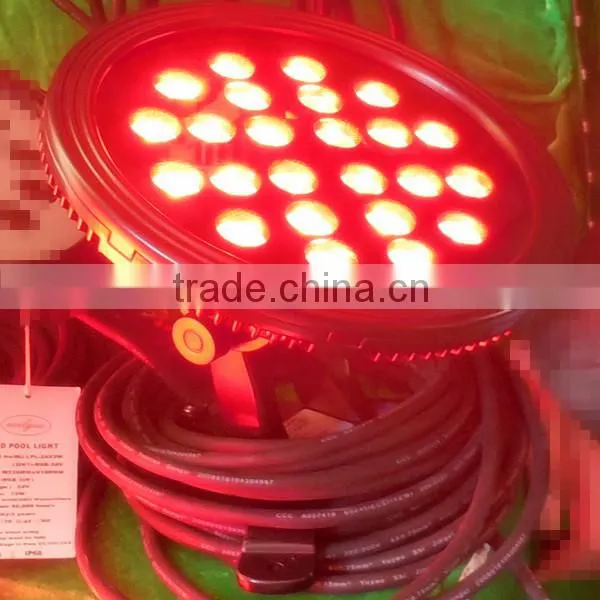

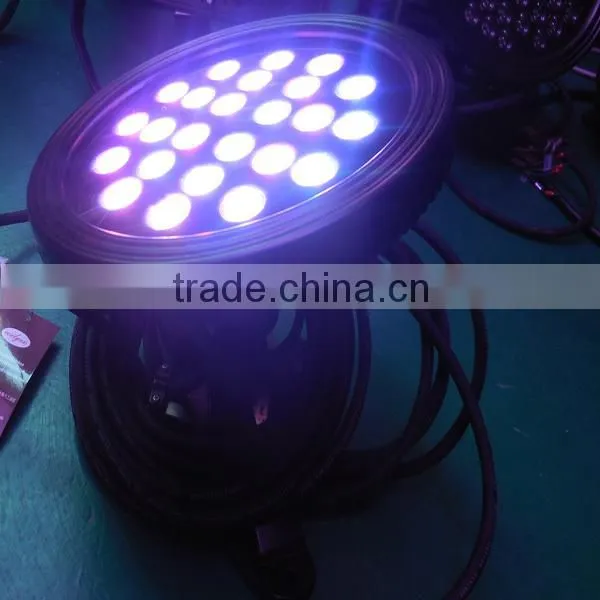

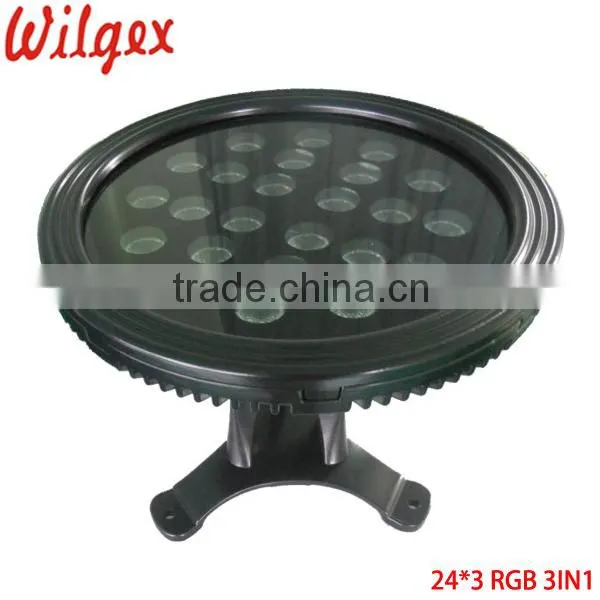

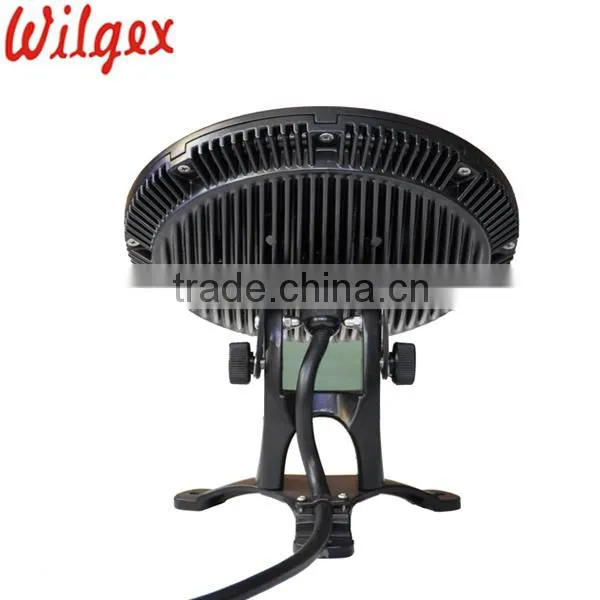

24X3W (RGB 3IN1) remote control LED light underwater

Specifications

remote control LED light underwater
DC24V,72W
Color:Tri 3in1
Dimension:D230XH190mm
DMX 512 control, master/slave mode

Detailed information for our Newest LED Underwater Light / remote control led light underwater



Features & Benefits

•Top grand waterproof rank:IP68 •Waterproof seal:silicone gasket • Beautiful appearance design for our remote control led light underwater • Long lifespan >50000 hours • Low voltage,safe for human • Green light,environment friendly • Low power consumption,high efficiency • Various single color and RGB color available • Good weather ability and pressure resistance • Projection angle could be adjusted willingly with base stand

Applications

• The remote control Led light underwater for Fountains is widely used in Swimming Pool, Fountain, Rearing Pond, Waterland, Artificial Waterfall.

Certificates

• CE,ROHS,PSE

Specifications

Physical Specifications
Dimension	D230*H190mm
Housing	Die-casting aluminum casing;tempered glass
Net weight	4.4KG
Rotary Angle	150°
IP Rating	IP68,underwater use or spot application
Electrical Specifications
Lighting Source	3W power LED
LED Quantity	24 LEDs
Operation Temperature	-20°C~40°C(-4°F~104°F)
Input Voltage	24V DC
Power Consumption	72W
Control System	DMX512/4 wire 3 loop,Master/Slave mode
Optical Specification
Chip type	Edison
Beam Angle	15°,30°,45°
Color	Single color or RGB(R-6,G-6,B-6) or RGB 3 in 1 Tri LEDs
Lighting Distance	40 meters



Different sizes,wattage,LEDs number is available for our remote control LED light Underwater



Quick Link to other categories of Wilgex's products

Linear Type LED Wall Washers,

Round Type LED Wall Washers.

LED Underwater Lights,

LED Neon Flex

LED Inground Lights

LED Garden Lamp



Two control methods for remote control LED light Underwater



I: Connection Diagram for CTR-RGB-BOX controller



II: Directly Connecting to DMX Console,with internal DMX decoder



Different Size of remote control LED light underwater

Different Angles of remote control LED light underwater







IP68 In Water Test



CE,ROHS,IP65,IP68 Certificates

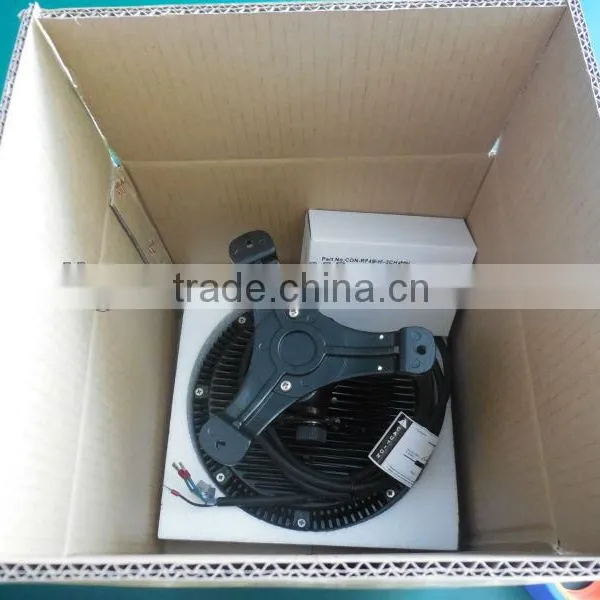

Packaging for remote control led light underwater

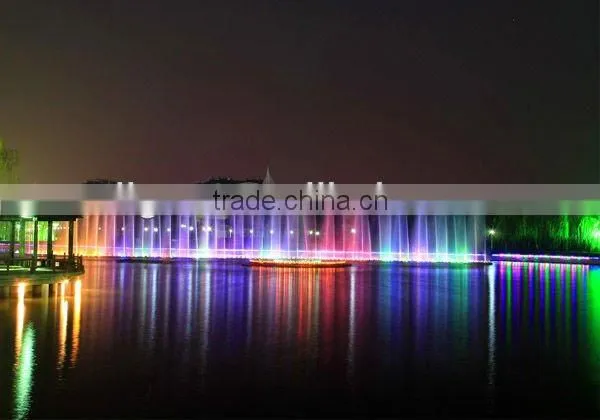

 Lighting Effects  for remote control led light underwater



Photo Gallery for Exhibitions
