Dustless blaster machine sand pot
- 150 Set / Sets per Month
- Qingdao China
- T/T
- Supports multi-hook customization of Pumingwei hook-type shot blasting machine surface metal rust removal equipment
- tumble rubber belt shot blasting machine for foundry plant crawler shot blaster
- smaller casting parts surface treatment crawler shot blasting machine
- Q326 Q324 Q3210 tumble belt shot blasting machine crawler belt shot blasting machine
- Tumble belt shot blasting machine for nuts and bolts surface treatment
- Tumbler belt shot blasting abrator machine wheel crawler shot blaster
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Kaitech |
Model Number: | KP-1-JX | Feature: | Critical Cleaning / Residue Free | Fuel: | Electric |
Certification: | CE | Use: | Burnishing, Container / Bottle Cleaning, Deflashing, Degreasing, Descaling / Stripping, Sterilizing / Disinfecting | Cleaning Process: | Other, abrasives |
Cleaning Type: | High Pressure Cleaner | Industry Used: | Electronic Industry | Material: | Metal / Coil |
Power(W): | Cusomized | Dimension(L*W*H): | Customized | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

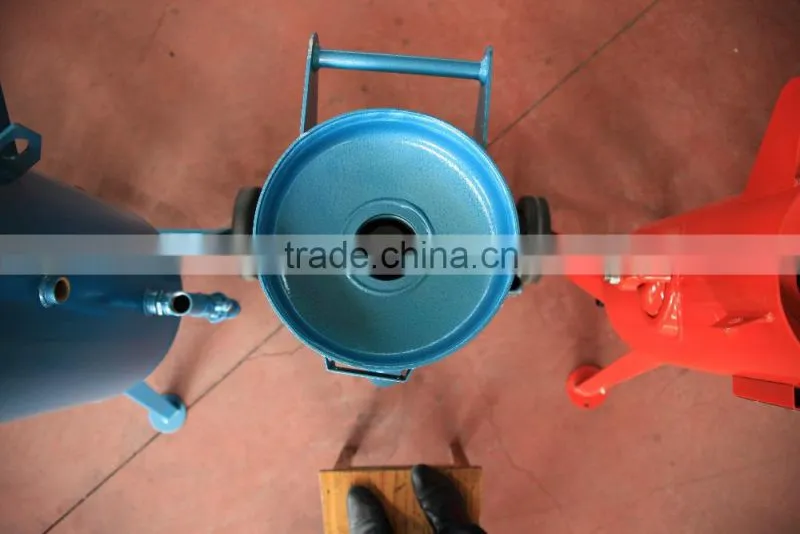

Dustless blaster machine sand pot
Sand Blasting cylinder Specification Parameter Table:
Model of tank | Dimensions (mm) | The volume (m³) | Air Source Equipment (m³/min) | Air pressure (mpa) | Amount of shot peening (sand)(kg/h) | Length of Sandblasting pipe(m) | remarks column |
KP-0.1-JX | 720x800 x1250 | 0.1 | 6 | 0.5~0.6 | 1800~2100 | 10 | Single gun and intermittent |
KP-0.2-JX | 800x940 x1460 | 0.2 | 6 | 0.5~0.6 | 1800~2100 | 10 | Single gun and intermittent |
KP-0.3-JX | 620x940 x1900 | 0.3 | 6 | 0.5~0.6 | 1800~2100 | 10 | Single gun and intermittent |
KP-0.5-JX | 720x1060 x1900 | 0.5 | 6 | 0.5~0.6 | 1800~2100 | 10 | Single gun and intermittent |
KP-0.5-JX-Ⅱ | 720x1060 x1900 | 0.5 | 12 | 0.5~0.6 | 3600~4200 | 10x2 | Double gun and intermittent |
KP-0.7-JX | 820x1200 x1900 | 0.7 | 6 | 0.5~0.6 | 1800~2100 | 10 | Single gun and intermittent |
KP-0.7-LX | 820x1200 x2200 | 0.7 | 6 | 0.5~0.6 | 1800~2100 | 10 | Single gun and continuous |
KP-0.7-JX-Ⅱ | 820x1200 x1930 | 0.7 | 12 | 0.5~0.6 | 3600~4200 | 10x2 | Double gun and intermittent |
KP-0.7-LX-Ⅱ | 820x1200 x2200 | 0.7 | 12 | 0.5~0.6 | 3600~4200 | 10x2 | Double gun and continuous |
KP-0.7-JX-Ⅲ | 1170x1280 x1780 | 0.7 | 18 | 0.5~0.6 | 5400~6300 | 10x3 | 3 guns and intermittent |
KP-1-JX |
| 1 | 6 | 0.5~0.6 | 1800~2100 | 10 | Single gun and intermittent |
KP-1-JX-Ⅱ |
| 1 | 12 | 0.5~0.6 | 3600~4200 | 10x2 | Double gun and intermittent |
KP-1-JX-Ⅲ |
| 1 | 18 | 0.5~0.6 | 5400~6300 | 10x3 | 3 guns and intermittent |
Function:
Sand blasting tank is the core part of sand blasting system. Its performance directly affects whether the sand blasting system is normal, efficient. The working principle of the sand blasting tank is pressure type: The tank can work with multiple abrasive control valve at the same time, while high speed spray gun work.It has a high degree of automation and high working efficiency.
Using Process:

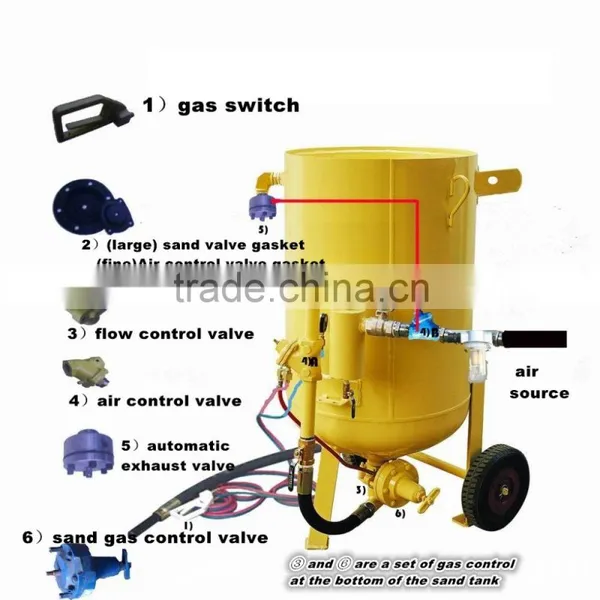

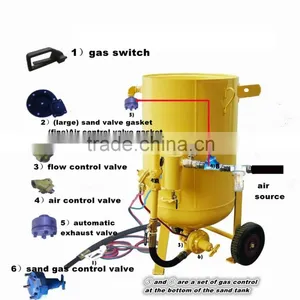

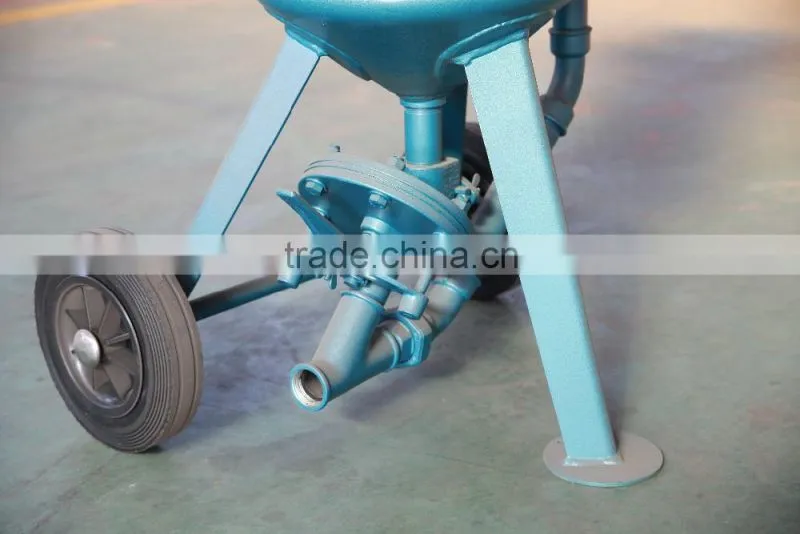

After the gas switch let it go, 4 a (air control valve) automatically shut down the air into the sand tank, while the red line is inflatable to the bottom;The piston in 3 (flow control valve) will open. When shut down the sand valve, the sand will stop.
4 a (air control valve) closed valve inlet, so the air of air compressor will be to 5(automatic exhaust value) through red line on the 4 b. 5 will automatically discharge air in cylinder and ensure safety.

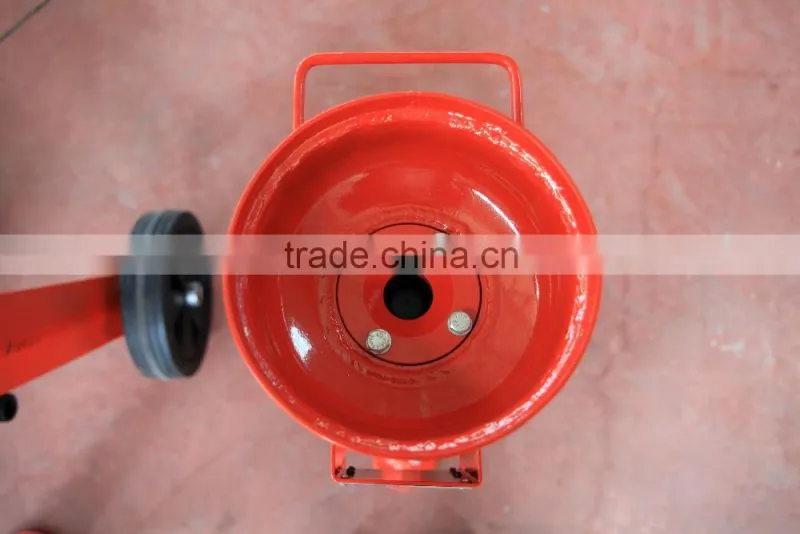

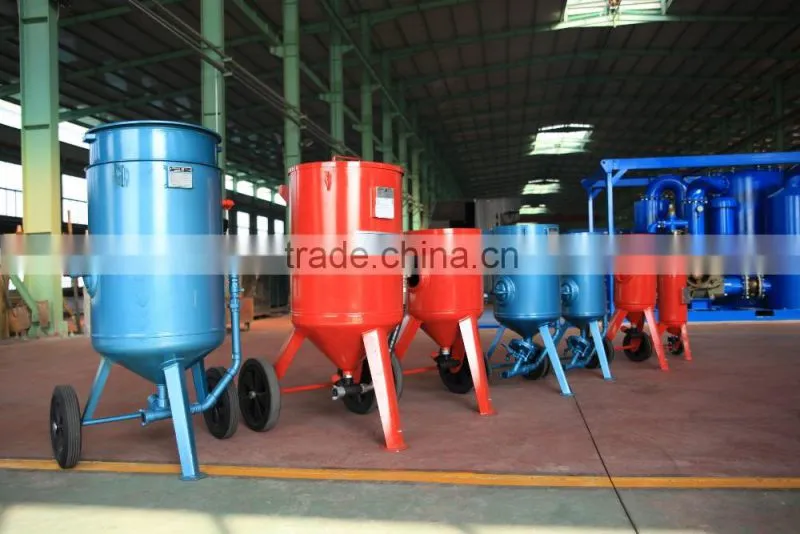

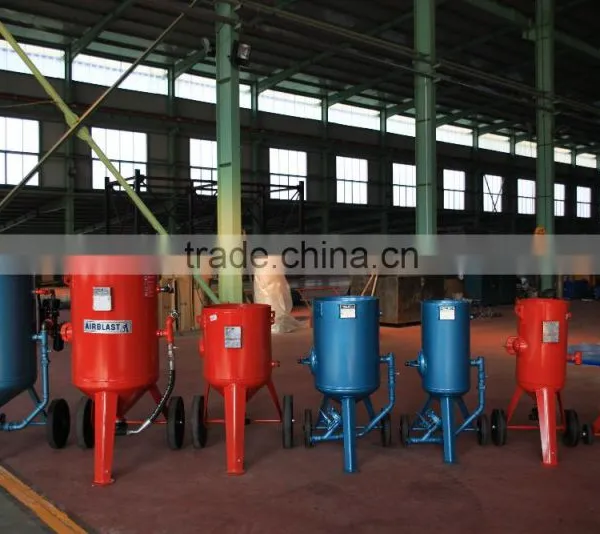

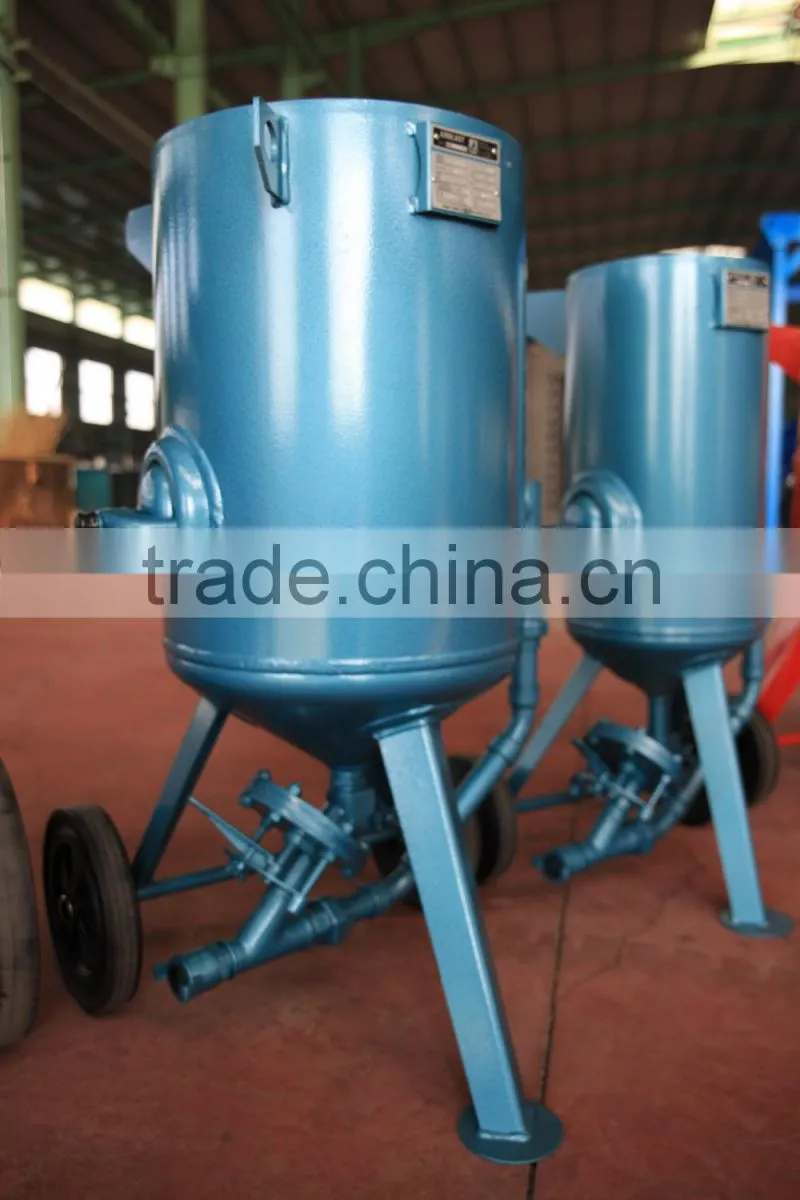

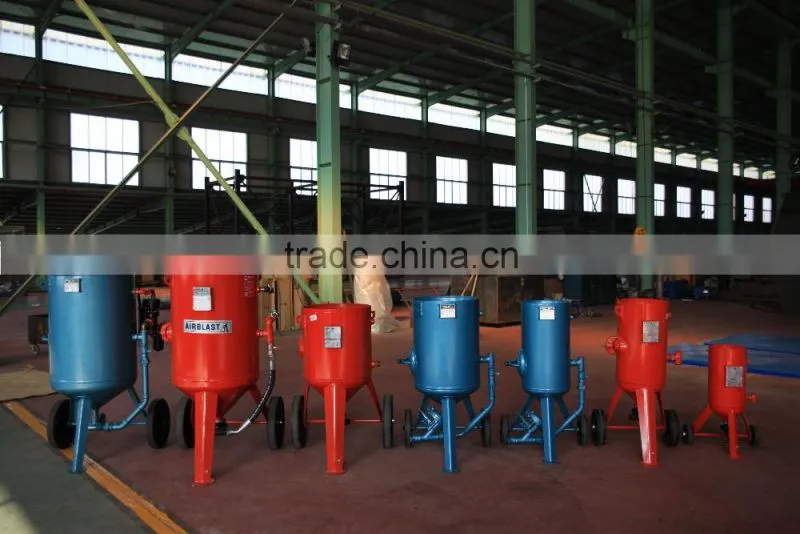

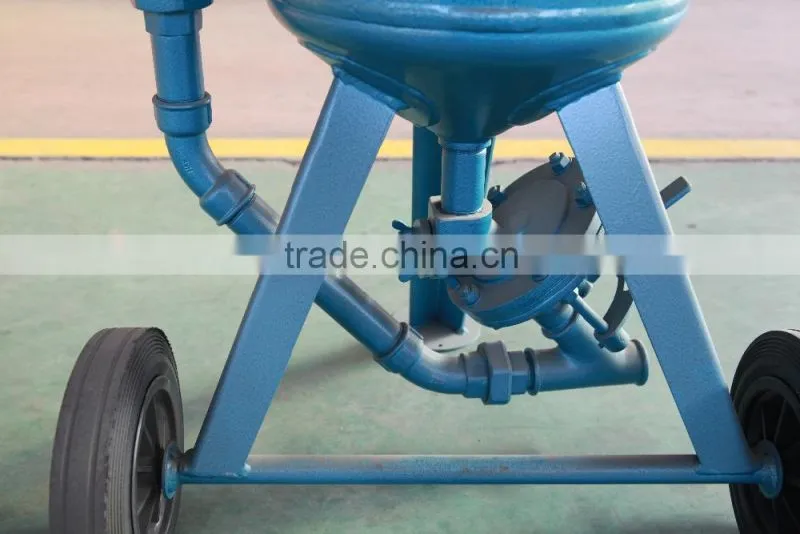

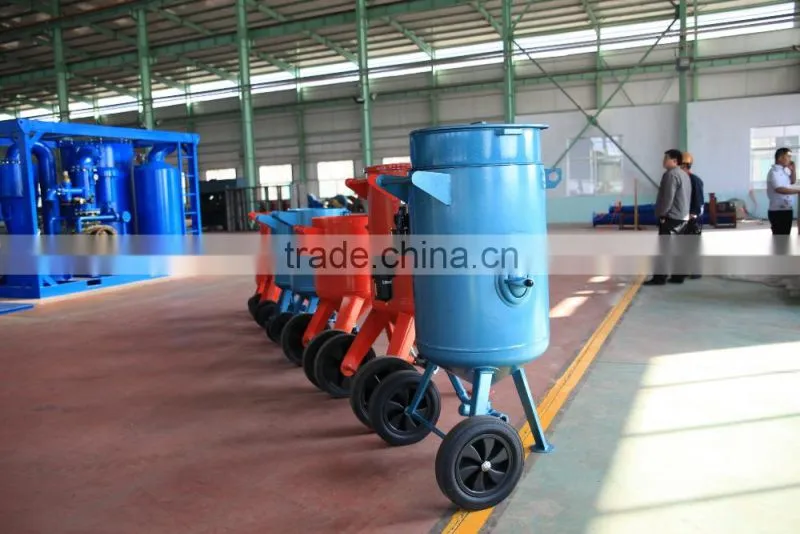

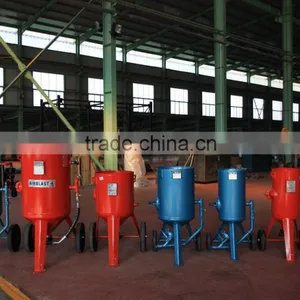

Some Pics
Company information
Shandong Kaitai Group is the biggest manufacturer of metal abrasive in Asia which
integrates with technical research, development and production. Cooperating with Material Science & Engineering College of Shandong University and guided by experts and professors of metal abrasive field.
The company has developed 8 series including cast steel shot, cast steel grit, steel cut wire shot, stainless steel shot, stainless steel cut wire shot, aluminium shot, zinc shot, copper shot, 80 kinds of abrasive products. The company could produces 250,000 tons metal abrasive.
The company is Advanced & New Technology Enterprise of Shandong Province and National Blasting & Peening Standardization Technology Committee Unit. With strong technical force, advanced equipment like intermediate frequency induction furnace, centrifugal blasting machine and so on. The company could produces high strength, strong durability cast steel shot, cast steel grit through double quenching, tempering, screening and so on.
The company has perfect quality control system. The company has introduced two Ervin Test Machine from USA. Ervin Test Machine is mainly used for testing fatigue life of metal abrasive. In additional, the company also has introduced SPECTRO spectral analyzer from Germany to test ingredient of metal abrasive. The quality of products has met SAE & ISO international standards and the company has passed international standard ISO9001.
The products have exported to more than 20 countries and regions and have got good comments from domestic and abroad users of foundry plant, forging plant, heat treatment shop, steel structure plant, container manufacturer, shipyard, auto and locomotive manufacturer and stone industries.
Pic for Factory
FAQ
1.How to visit your factory?
Our company is not far away from Jinan city Shandong province,we can pick you up here.
PS: Any further questions, you can add our Skype: live:1550574239 to get information online, or send us emails: export11(at )
2. What is the time of delivery?
In general within 7 days after confirming the order.
3. What standards are you carrying out for your products?
A: Our products reach SAE,CE,PED standard. We produce according to the ISO9001 and ISO14001 rules.
4.What’s your year productivity?
We have several production line synchronous production ,yearly productivity 1000 sets per month.Delivery fast.
PS: Any further questions, you can add our Msn :1550574239(at)qq.com to get information online, or send us emails: export11(at)
