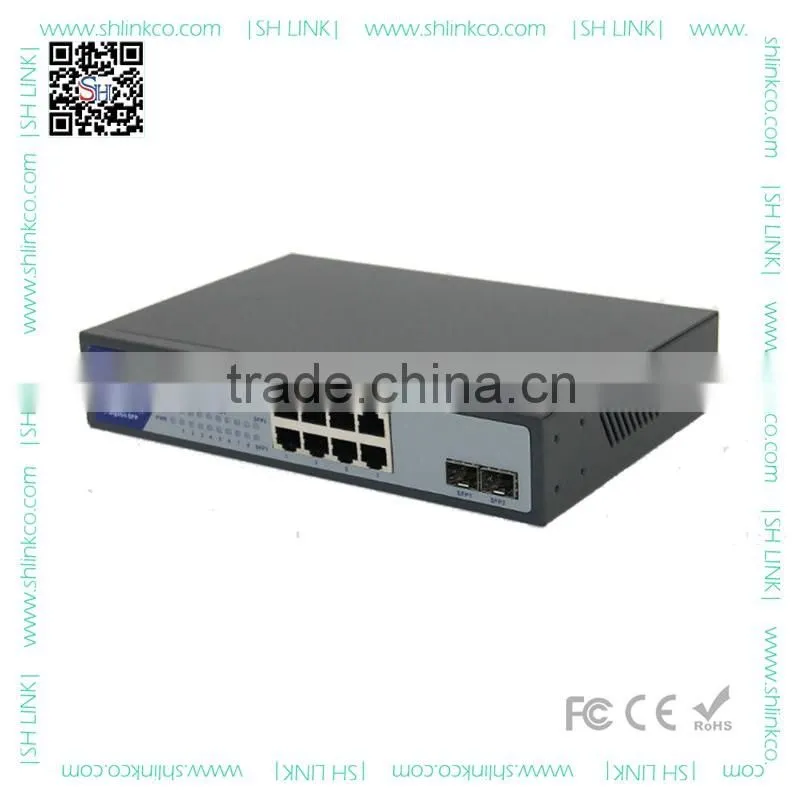

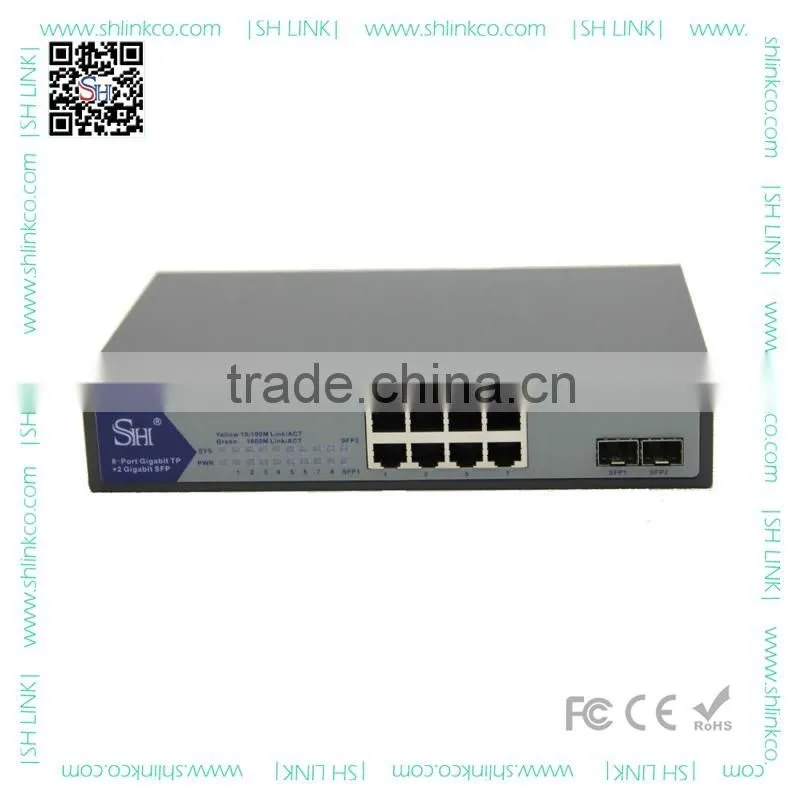

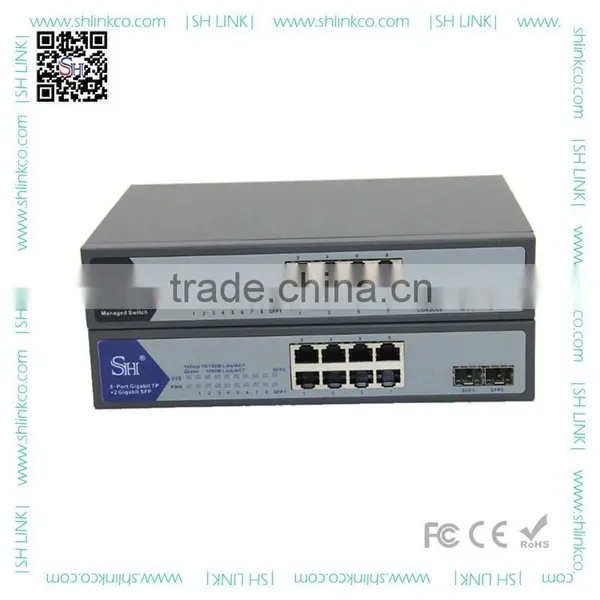

CCTV manufacture unmanaged 2 port SFP to 8 port RJ45 10/100/1000M ethernet fiber optic switch
SH-328 series 8+2 port 10/100/1000M gigabit Ethernet optical switch converts 10/100/1000Base-T electrical signals with 1000Base-FX optical signals. The 8 Ethernet ports support 1536 byte long packet, and auto full/half duplex. The 12G backplane bandwidth lets it meet the various applications of LAN. It features flow control which can directly connect with router and server, as well as store-and-forward mode and auto learning of MAC address, which ensures the high reliability and low time delay. It provides options in multi mode/single mode fiber media, single fiber (WDM) or dual fiber, 220m~80km transmission distance, SC/FC/ST connector, SFP moduel…
- Auto 10/100/1000Mbps, facilitating the network upgrading
- 12Gbps backplane bandwidth
- 8 ports 10/100/1000Base-Tx
- 2 ports 1000Base-Fx SFP slot
- Auto-sensed half duplex or full duplex
- Auto-sensed MDI or MDI-X
- Support the transmission of the long packet up to 9k
- Support IEEE802.3x fiow control
- Options in single/multi mode, single/dual fiber, transmission distances and connectors
Part Number |
Description |
SH-328M-500 |
8*10/100/1000Base-T to 2*1000Base-F Gigabit Ethernet Optical Switch |
SH-328S-xx |
8*10/100/1000Base-T to 2*1000Base-F Gigabit Ethernet Optical Switch xx: 20/40 (km) |
SH-328S-xx |
8*10/100/1000Base-T to 2*1000Base-F Gigabit Ethernet Optical Switch xx: 60/80 (km) |
SH-S328-xx |
8*10/100/1000Base-T to 2*1000Base-F Gigabit Ethernet Optical Switch xx: 20/40/60/80 (km) |
SH-328-SFP |
8*10/100/1000Base-T to 2*1000Base-F Gigabit Ethernet Optical Switch SFP slot, depends on SFP module |
Item |
Specifications |
Data Rate |
Copper: 10/100/1000Mbps; Fiber: 1000Mbps |
Standard |
IEEE802.3 10Base-T, IEEE802.3u,100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX, IEEE802.3x Flow Control |
Wavelength |
850nm/1310nm/1550nm |
Transmission distance |
MMF: 220/550m; SMF: 20~80km; Cat5: 100m |
MAC address |
1k |
Buffer |
512k |
Backplane bandwidth |
12G |
Electrical Connector |
8*RJ45 |
Fiber Connector |
2*Duplex/simplex SC (ST or FC optional), LC (SFP Module) optional |
LED indicator |
PWR (power supply), FX 1/2 (Fiber link), TP1~8 1000M (Ethernet rate 1000M), TP1~8 L/A (TP cable link/act) |
Power supply |
DC 5V 2A |
Power consumption |
<6W |
Operating temperature |
-10~55℃ |
Operating humidity |
90% max, non-condensing |
Storage temperature |
-40~70℃ |
Dimensions |
228 (W) x 26 (H) x 108(L) (mm) |
Various types of transportation are available, and we will arrange one according to your request.
1. Are you a factory?
Yes, we are a factory.
2. How about your products?
Our products have adopted certifications of CE, FCC and RoHS, which are highly-efficient and at reasonable prices.
3. How about your lead time?
It's 1~3 days for samples and 5~7 days for bulk orders after payments received.
4. How can I pay?
We accept Bank T/T, CASH, Paypal, Western Union...
5. How about your service?
We provide OEM, ODM and excellent after-sale services. If you have any questions, contact us! We provide support 24/7.
