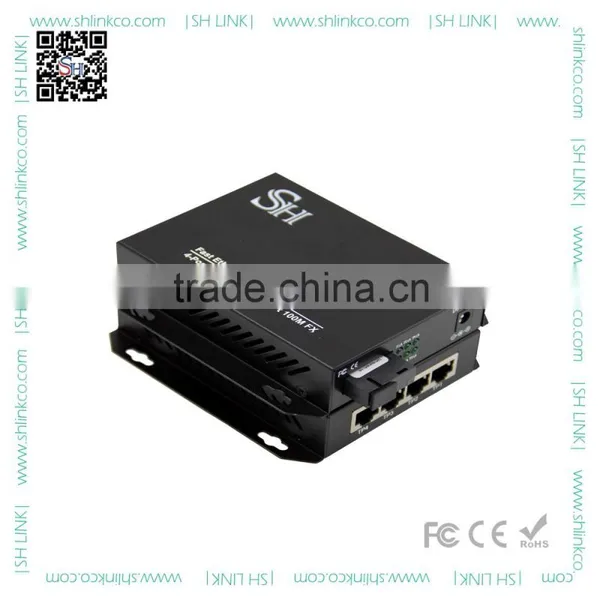

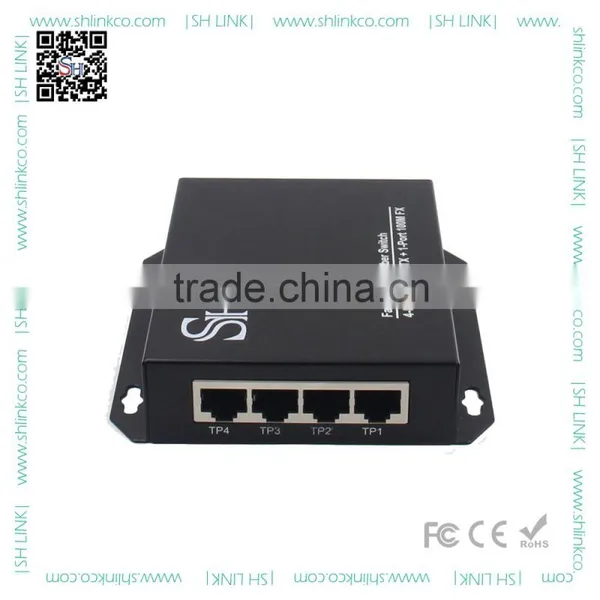

Highly efficient 10/100M optical switch 1 fiber port to 4 UTP port converter
SH-114 series 4+1 ports 10/100M fast Ethernet optical switch converts 10/100Base-T electrical signals with 100Base-FX optical signals. It builds in 4-port 10/100M auto-sensed switch, adopts American top IC, high quality transceiver, providing the stable and reliable performance. It provides an economic way to extend the network transmission distance from 100m over copper cables to 120km over fiber optical cable. It provides options in multi mode/single mode fiber media, single fiber (WDM) or dual fiber, 2km~120km transmission distance, SC/FC/ST connector, etc. SH-114 series optical switch is widely used in telecommunication, transportation, security transmission...
- Auto 10Mbps and 100Mbps, facilitating the network upgrading
- Auto-sensed half duplex or full duplex
- Auto-sensed MDI or MDI-X
- Built-in high effective switching chip, ensuring the flow controlling, cutting down the broadcasting packet
- 4 ports 10/100M auto sensed Ethernet ports, for backup and multiple-access
- Support the transmission of the long packet up to 1552 byte
- Low consumption, low heat dissipation, for long life span
- Options in single/multi mode, single/dual fiber, transmission distances and connectors
Part Number |
Description |
SH-114M-02 |
4*10/100Base-T to 1*100Base-F Fast Ethernet Optical Switch |
SH-114S-xx |
4*10/100Base-T to 1*100Base-F Fast Ethernet Optical Switch xx: 20/40/60 (km) |
SH-114S-xx |
4*10/100Base-T to 1*100Base-F Fast Ethernet Optical Switch xx: 80/100/120 (km) |
SH-S114-xx |
4*10/100Base-T to 1*100Base-F Fast Ethernet Optical Switch xx: 20/40/60/80/100 (km) |
Item |
Specifications |
Data Rate |
Copper: 10/100Mbps; Fiber: 100Mbps |
Standard |
IEEE802.3 10Base-T, IEEE802.3u,100Base-TX/FX, IEEE802.3x Flow Control |
Wavelength |
850nm/1310nm/1550nm |
Transmission distance |
MMF: 2 km; SMF: 20~120km; Cat5: 100m |
Conversion means |
Store and Forward mode or Cut-Through mode |

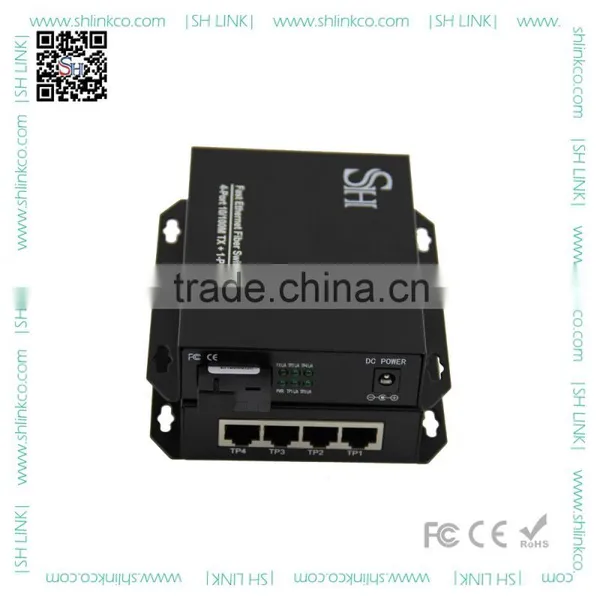

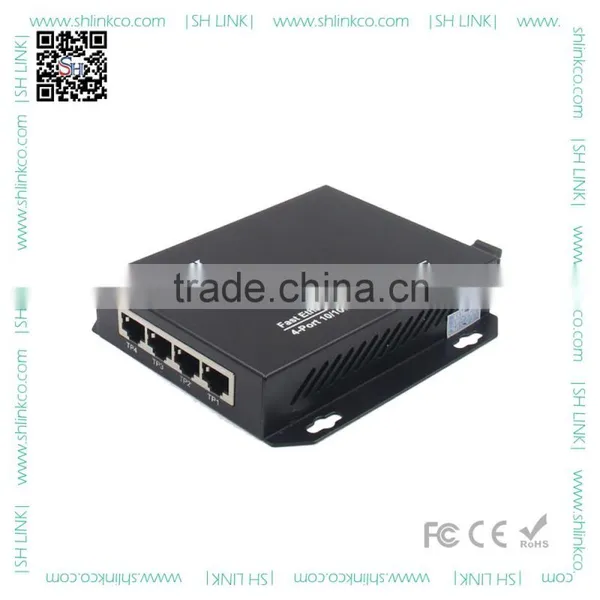

Electrical Connector |
4*RJ45 |

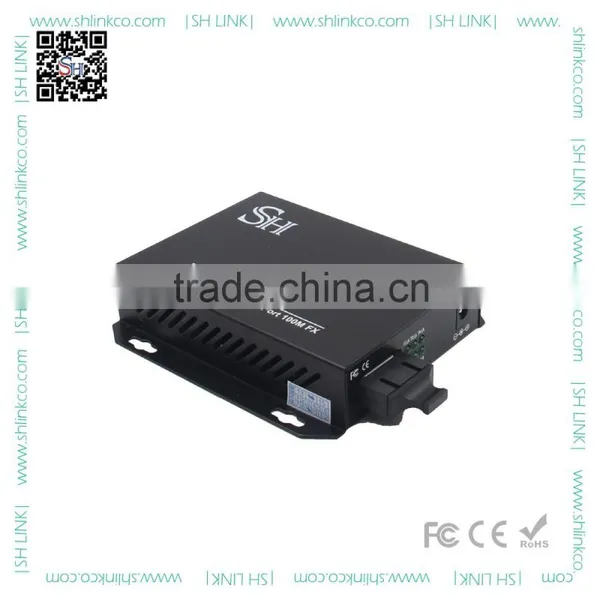

Fiber Connector |
Duplex/simplex SC (ST or FC optional) |

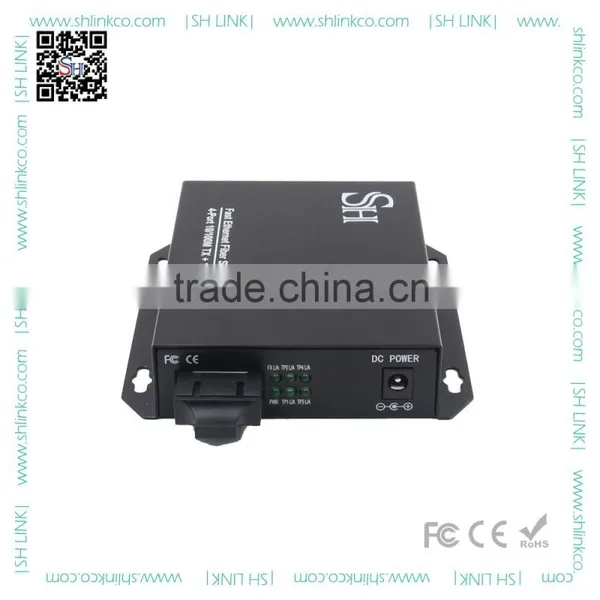

LED indicator |
PWR (power supply), FX L/A(Fiber link/act), TP1/2/3/4 L/A (Ethernet Port 1/2/3/4 TP cable link/act) |
Power supply |
DC 5V |
Power consumption |
<3.5W |
Operating temperature |
-10~55℃ |
Operating humidity |
90% max, non-condensing |
Storage temperature |
-40~70℃ |
Dimensions |
112 (W) x 26 (H) x 85 (L) (mm) |
Net Weight |
250g |

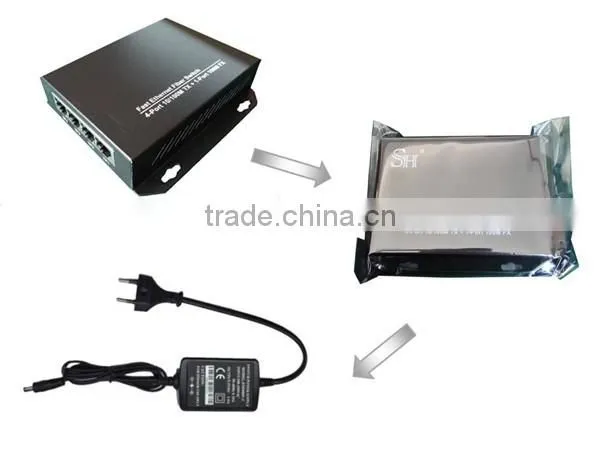

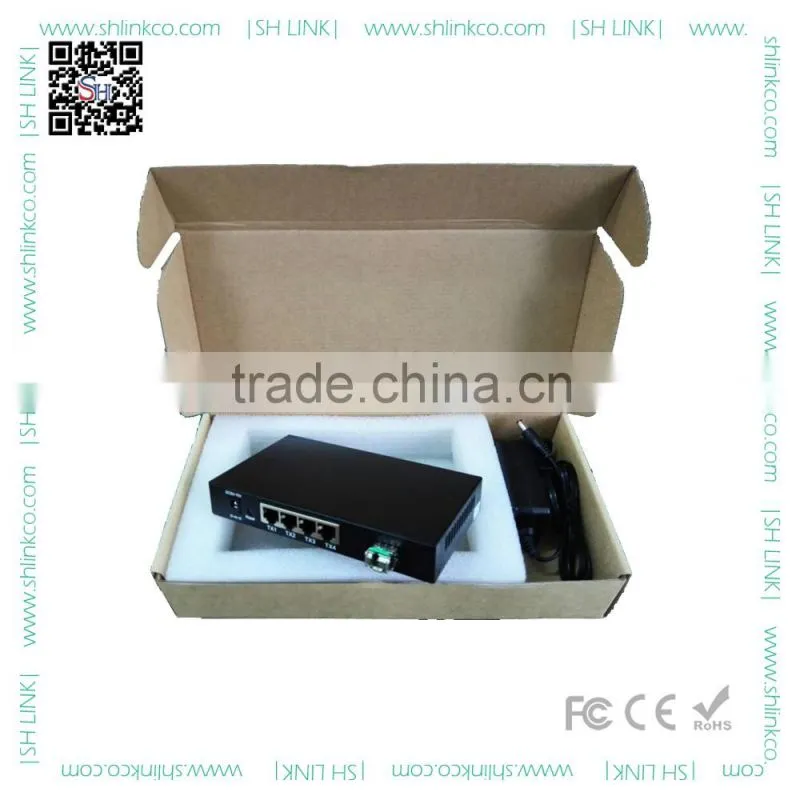

Neutrial Packaging and SH Brand packaging are optional.
Various types of transportation are available, and we will arrange one according to your request.
1. How about your products?
Our products have adopted certifications of CE, FCC and RoHS, which are highly-efficient and at reasonable prices.
2. How about your lead time?
It's 1~3 days for samples and 5~7 days for bulk orders after payments received.
3. How can I pay?
We accept Bank T/T, CASH, Paypal, Western Union...
4. How about your service?
We provide OEM, ODM and excellent after-sale services. If you have any questions, contact us! We provide support 24/7.
