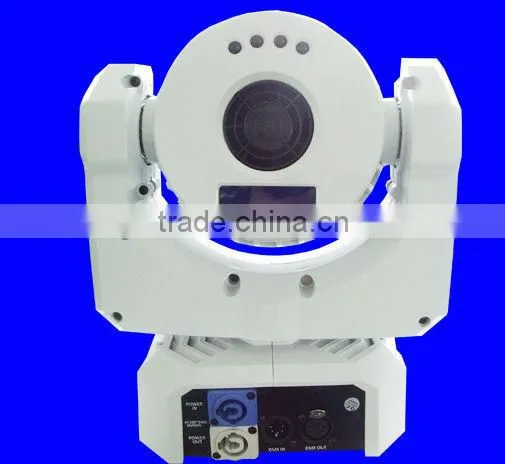

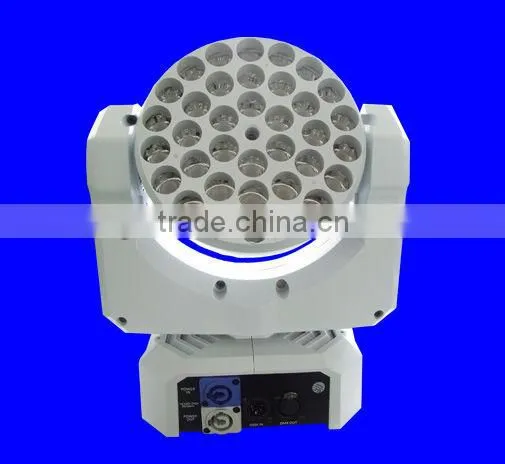

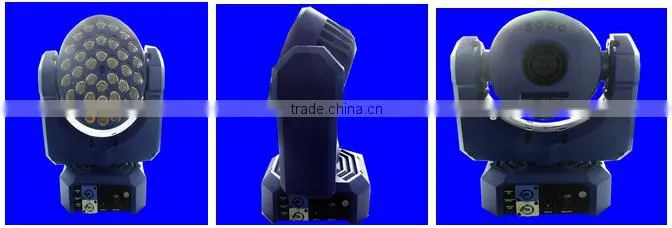

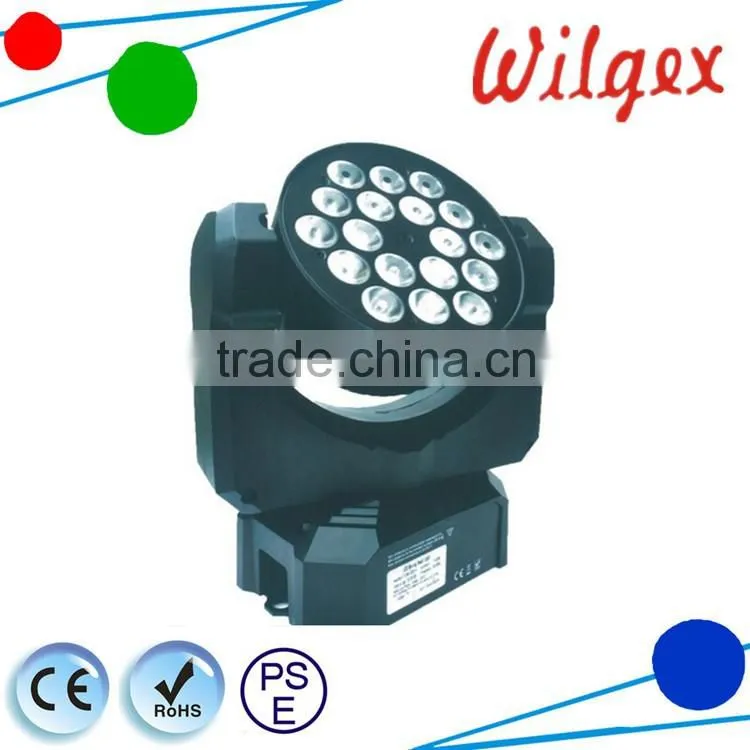

Shenzhen high power moving head Mini RGB led Stage light
LED stage light with Very Mini size CREE High power LED moving head light
Technical parameters:
1. Rated voltage: 85~265V
2. Rated frequency: 50/60Hz
3. Power: 130W
4. LED: 3W CREE XP-E
5. LED lifespan: 50,000+hrs.
6. LED quantity :36 pcs (12R+12G+12B)
7. Color mixing: R: 0~255,G:0~255 ,B:0~255
8. Effect: strobe, fade , color wheel

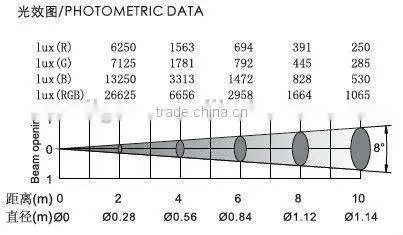

9. Beam angle: 8°
10. Rotation Angle: Pan 540°/630°,Tlit 240°,self-correcting
11. Channel quantity: 5,7,8,9,12
12. Control mode: DMX512,Master/slave,Sound actived
13. Protection grade: IP20
14. Net Weight:3.7kg.
15. Correlated Color Temperature:100,000K-2500K.
16. Single color for white and warm white are available.
Advantage of LED-technology:
Extremely long life, low power consuption, minimal heat emission, defacto maintenance free with brilliant light radiation. Equipped with 36*3W LEDs; 12*red, 12*blue, 12*green high power LEDs made by Lumileds, 100,000 hours life Stepless RGB colour changing DMX-controlled operation or stand for adjusting the DMX-Starting address with eletronic dimming form 0-100%, effects include high speed strobe up to 25 FPS and the ability to strobe inany color combinaion DMX-control via every standard DMX-controller.
Data Sheet:
| Model No. | WJ-LM-2013 |
| Power consumption | 130W |
| Input voltage | 100-240V AC |
| Light Source | 36 pcs Cree XP-E Power LED/3W |
| Dimension | L242*W130*H289mm |
| Weight | 3.7 KG |
| Beam angle | 8° |
| Pan, Tilt | 540°/630°, 270° |
| DMX Channel | 5/7/8/9/12 CH |

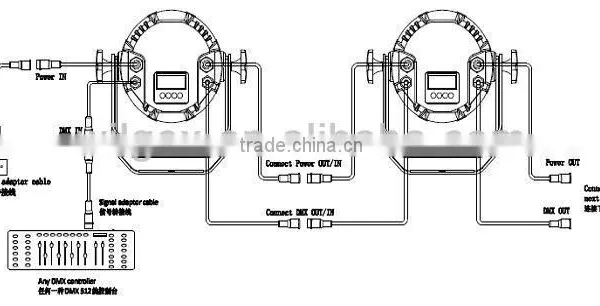

| Control mode | DMX512, Master/Slave, Sound active mode |
| IP Rating | IP20, indoor use only |
Plastic housing color: Red color, White color, Blue color, Black color can be available

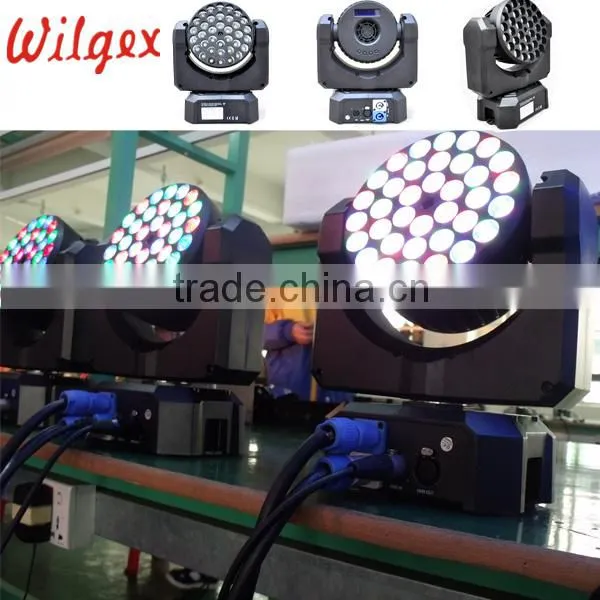

Product working effect images:
Dongguan Wilgex Lighting Co., Ltd (originally named Dongguan Jiawen Lighting Co., Ltd), was established in year 2003. We are specialized in developing, designing and manufacturing LED decorating and lighting proodcuts for more than 12 years.
Our products assortment includes LED neon flex, LED wall washer/flood lights, LED Stage Lights, LED fountain/pool lights, and LED undergroud lights as well as garden lights.
All of our products are manufactured to the highest industry standards and utilize some of the best quality components available such as Epistar, Edison and CREE LEDs, and MeanWell Power Supplies and are backed by a conservative 2 Year Warranty. All of our products are CE (EMC, LVD, EMF) and RoHS certified and can reach to IP65, IP68 waterproof grade.
We also have PSE certification and sell to Japan market. Our target markets for our LED lights are the middle and high quality required countries such as the USA, Canada, Europe and middle east as well as Japan. Wilgex welcome every clients and partners come to visit our factory in Dongguan city of China.
1.Reply your enquiry in 12 hours.
2.Experienced staff answer all your questions in fluent English.
3.Customized design is available.OEM&ODM are welcomed.
4.Exclusive and unique solution can be provided to our customer by our well-trained professional engineers and staff.
5.Special discount and protection of sales area provided to our distributor.
Waiting for your inquiry!
