Factory supply nice price 9 ports 10/100/1000M Fibre optic ethernet switch

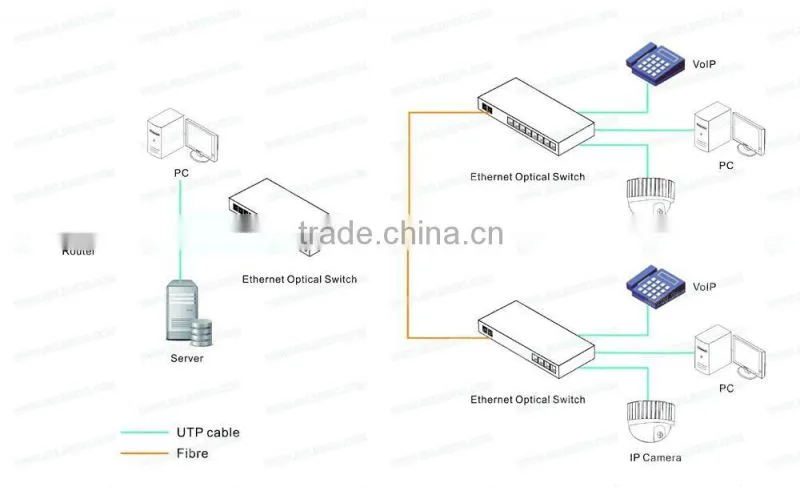

SH-318 series 8+1 port 10/100/1000M gigabit Ethernet optical switch converts 10/100/1000Base-T electrical signals with 1000Base-FX optical signals. The 8 Ethernet ports support 1536 byte long packet, and auto full/half duplex. The 12G backplane bandwidth lets it meet the various applications of LAN. It features flow control which can directly connect with router and server, as well as store-and-forward mode and auto learning of MAC address, which ensures the high reliability and low time delay. It provides options in multi mode/single mode fiber media, single fiber (WDM) or dual fiber, 220m~80km transmission distance, SC/FC/ST connector, SFP module…
- Auto 10/100/1000Mbps, facilitating the network upgrading
- 12Gbps backplane bandwidth
- 8 ports 10/100/1000M auto sensed ethernet ports, for backup and multiple-access
- 2 ports 1000Base-Fx SFP slot
- Auto-sensed half duplex or full duplex
- Auto-sensed MDI or MDI-X
- Support the transmission of the long packet up to 9k
- Support IEEE802.3x fiow control
- Options in single/multi mode, single/dual fiber, transmission distances and connectors
Part Number |
Description |
SH-328M-500 |
8*10/100/1000Base-T to 1*1000Base-F Gigabit Ethernet Optical Switch |
SH-328S-xx |
8*10/100/1000Base-T to 1*1000Base-F Gigabit Ethernet Optical Switch xx: 20/40 (km) |
SH-328S-xx |
8*10/100/1000Base-T to 1*1000Base-F Gigabit Ethernet Optical Switch xx: 60/80 (km) |
SH-S328-xx |
8*10/100/1000Base-T to 1*1000Base-F Gigabit Ethernet Optical Switch xx: 20/40/60/80 (km) |
Item |
Specifications |
Data Rate |
Copper: 10/100/1000Mbps; Fiber: 1000Mbps |
Standard |
IEEE802.3 10Base-T, IEEE802.3u,100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX, IEEE802.3x Flow Control |
Wavelength |
850nm/1310nm/1550nm |
Transmission distance |
MMF: 220/550m; SMF: 20~80km; Cat5: 100m |
MAC address |
1k |
Buffer |
512k |
Backplane bandwidth |
12G |
Electrical Connector |
8*RJ45 |
Fiber Connector |
1*Duplex/simplex SC (ST or FC optional), LC (SFP Module) optional |
LED indicator |
PWR (power supply), FX (Fiber link), TP1~8 1000M (Ethernet rate 1000M), TP1~8 L/A (TP cable link/act) |
Power supply |
DC 5V 2A |
Power consumption |
<6W |
Operating temperature |
-10~55℃ |
Operating humidity |
90% max, non-condensing |
Storage temperature |
-40~70℃ |
Dimensions |
228 (W) x 26 (H) x 108(L) (mm) |
Other Optical Switch:
Various types of transportation are available, and we will arrange one according to your request.
1. How about your products?
Our products have adopted certifications of CE, FCC and RoHS, which are highly-efficient and at reasonable prices.
2. How about your lead time?
It's 1~3 days for samples and 5~7 days for bulk orders after payments received.
3. How can I pay?
We accept Bank T/T, CASH, Paypal, Western Union...
4. How about your service?
We provide OEM, ODM and excellent after-sale services. If you have any questions, contact us! We provide support 24/7.
