Negotiable MOQ: 50 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
San'an SMD2835/5050
Input Voltage(V):
12/24/110/220V
Lamp Power:
13
Contact Supplier Request Quote Chat Now
Dongguan Wilgex Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source San'an SMD2835/5050
Input Voltage(V) 12/24/110/220V
Lamp Power 13
Lamp Luminous Flux(lm) 1040
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, All single colors & RGB
Working Temperature(℃) -25, 60
Working Lifetime(Hour) 50000
Lamp Body Material Other, Soft PVC
IP Rating IP65
Certification CE, EMC, LVD, PSE
Emitting Color Other, All single color/RGB
Place of Origin Guangdong, China
Brand Name WILGEX
Model Number WJ-NF-SMD2835/5050-10x20/15x26mm

Color changing 220V 110V 24V 12V rgb flexible led neon tube light

Color changing 220V 110V 24V 12V rgb flexible led neon tube light

Product Description

Features and advantages:

  1. Milky, Crystal and Colored PVC jacket design, and dome/flat/round shapes for different options.
  2. Smaller in size and extremely flexible, can be cut into small units, with cutting mark printed on side, and easy to be installed.
  3. High brightness, continuous brightness and uniform illumination, no light dot or dark spot.
  4. Lower power, save energy, extremely low maintenance costs
  5. Longer lifespan (up to 50,000 hours), firm and durable, 2 years warranty for our led neon tube
  6. Lower heat generating and better heat dissipating, safe to be touched.
  7. Environmental-friendly, made of non-toxic materials and can be cut and reused.
  8. UV and weather resistant, waterproof IP65 and IP68 available, both indoor and outdoor.
  9. Low voltage or line voltage options
  10. Available in all single colors, RGB & Digital RGB colors, magic changing effects

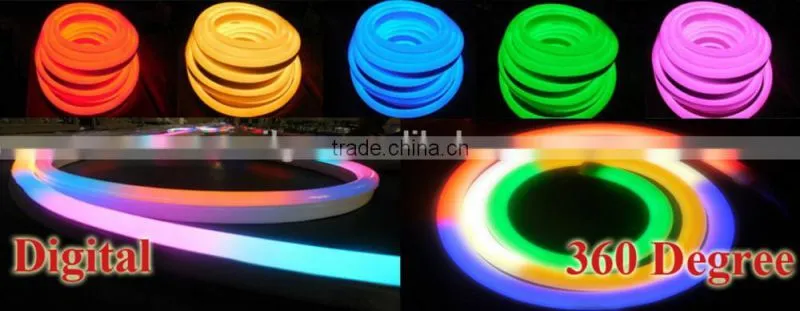

Various lighting effects

Color changing 220V 110V 24V 12V rgb flexible led neon tube light

Specification

Latest design SMD 2835 type LED neon tube--single color
Item No. WJ-NF-SMD2835-15*26mm WJ-NF-SMD2835-10*20mm
LED Type San'an Brand SMD 2835 San'an Brand SMD 2835
LED Spacing 13.9mm 13.9mm
LED qty/M 72pcs 72pcs
Input voltage 230Vac 110Vac 24Vdc 12Vdc 230Vac 110Vac 24Vdc 12Vdc
Cutting length 100cm 50cm 8.33cm 4.17cm 100cm 50cm 8.33cm 4.17cm
Watt/meter 9W/m 9W/m 9W/m 9W/m
Max.loading Length 100m 50m 15~20m 8~10m 100m 50m 15~20m 8~10m
LED color Red, Green, Blue, Yellow, Orange, Purple, Pink, White, Warm white
Size 15x26mm 10x20mm
Latest design SMD 2835 type LED neon tube--single color
Item No. WJ-NF-SMD2835-15*26mm WJ-NF-SMD2835-10*20mm
LED Type San'an Brand SMD 2835 San'an Brand SMD 2835
LED Spacing 10.4mm 10.4mm
LED qty/M 96pcs 96pcs
Input voltage 220Vac 110Vac 24Vdc 12Vdc 220Vac 110Vac 24Vdc 12Vdc
Cutting length 100cm 50cm 12.5cm 6.25cm 100cm 50cm 12.5cm 6.25cm
Watt/meter 9W/m 9W/m 9W/m 9W/m
Max.loading Length 100m 50m 15~20m 8~10m 100m 50m 15~20m 8~10m
LED color Red, Green, Blue, Yellow, Orange, Purple, Pink, White, Warm white
Size 15x26mm 10x20mm
Latest technology SMD5050 type LED Neon tube -- RGB Color
Item No. WJ-NF-SMD-RGB-15*26mm WJ-NF-SMD-RGB-10*20mm
LED Type San'an Brand SMD5050 San'an Brand SMD5050
LED Spacing 13.9mm 13.9mm
LED qty/M 72pcs 72pcs
Input voltage 220Vac 110Vac 24Vdc 12Vdc 220Vac 110Vac 24Vdc 12Vdc
Cutting length 100cm 50cm 8.33cm 4.17cm 100cm 50cm 8.33cm 4.17cm
Watt/meter 13W/m 13W/m 13W/m 13W/m
LED color Seven colors changing, fading
Max.loading Length 100m 50m 15~20m 8~10m 100m 50m 15~20m 8~10m
Size 15x26mm 10x20mm
Unique design Digital RGB Magic color SMD5050 LED Neon tube-SPI control
Item No. WJ-NF-SMD-RGB-15*26mm-SPI
LED Type San'an Brand SMD5050
LED Spacing 15.6mm 16.7mm
LED qty/M 64pcs 60pcs
Pixel 4 LEDS/Pixel, 16 Pixels/M  6 LEDS/Pixel, 10 Pixels/M
LED Color Magic color changing (DMX DIY available )
Input voltage 12V DC 24V DC
Cutting length 6.25cm 10cm
Watt/meter 13W/m 13W/m
Max. Loading Length 8~10m 10~15m
LM/M
Brightness		 12.5%: 56.8LM,  25%: 100.8LM, 37.5%: 143.2LM,
50%: 187.80LM, 62.5%: 231.6LM, 75%:276.5LM, 87.5%:320.3LM, 100%: 368.2LM
Size 15x26mm
Latest design SMD2835 type 360 Degree D25mm Round LED Neon tube--single color
Item No. WJ-NF-SMD2835-D25-72x2 WJ-NF-SMD2835-D25-96x2
LED Type San'an Brand SMD 2835 San'an Brand SMD2835
LED Spacing 13.9mm 10.4mm
LED qty/M 144 pcs 192 pcs
Input voltage 220V AC 110V AC 24V DC 12V DC 220V AC 110V AC 24VDC 12V DC
Cutting length 100cm 50cm 8.33cm 4.17cm 100cm 50cm 12.5cm 6.25cm
Watt/meter 13W/m 13W/m
LED color Red, Green, Blue, Yellow, Orange, Purple, Pink   White, Warm white
Max.loading Length 100m 50m 10~20m 5~8m 100m 50m 12~15mm 6-8m
Size Dia 25mm Dia 25mm

Different Size and Shape Options

 Color changing 220V 110V 24V 12V rgb flexible led neon tube light

SMD LED Advantages

Comparison

Color changing 220V 110V 24V 12V rgb flexible led neon tube light



Color changing 220V 110V 24V 12V rgb flexible led neon tube light

Heart voice to customers: We are making the Wilgex brand, we cannot give you the lowest price only to give you the highest quality. We would rather explain for the price before sale than to apologize for the quality problems after sale. Thanks for your trust on Wilgex and choosing Wilgex led neon tube, we will give you our best quality and best service as feedback.

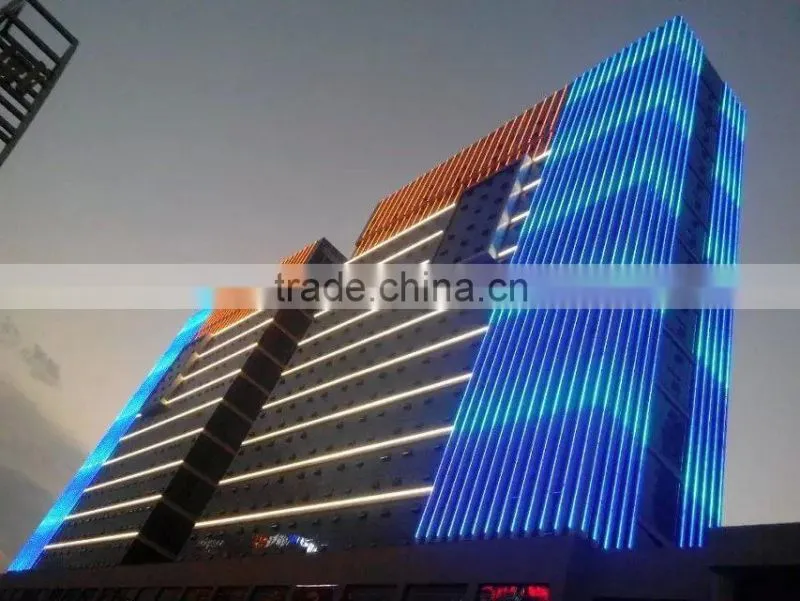

Application

    Wilgex's led neon tube is widely used for Path&contour marking,  Elegant interior decoration, Background lighting for big size ad-signs, Landscape outlines, Signal lighting, Swimming pool , Car and motorcycle decorative lighting, Architectural decorative lighting, Archway Lighting, Canopy Lighting,  Bridge edge lighting, Amusement park and theater lighting, Emergency hallway lighting, Emergency Exit path lighting, Auditorium walkway lighting, Stairway accent lighting, Cove lighting.

Color changing 220V 110V 24V 12V rgb flexible led neon tube light

Connection & Control

Power connection drawing of Single Color LED neon tube

Color changing 220V 110V 24V 12V rgb flexible led neon tube light

Control method for RGB LED Neon tube--- 4 wires 3 loops

Available voltage: DC12V/24V, AC 110V-120V, AC 220V-230V

I: Votage: DC12V/24V connection diagram

 Color changing 220V 110V 24V 12V rgb flexible led neon tube light

II: Voltage: AC110-120V or AC 220V-230V

Color changing 220V 110V 24V 12V rgb flexible led neon tube light

Control Method for Digital RGB LED Neon tube

I: SPI control connection drawing:

Color changing 220V 110V 24V 12V rgb flexible led neon tube light

II: Directly DMX 512 programmes control connection drawing:

Color changing 220V 110V 24V 12V rgb flexible led neon tube light

Packaging & Shipping

    Wilgex LED Neon tube is usually packed on wooden reel or high quality plastic reel, you can choose one of them. And each reel packed in a high quality color carton with a User Manual. We also accept to stick your logo on the carton if required.

Color changing 220V 110V 24V 12V rgb flexible led neon tube light

Wilgex is trying our best to pack the cargos perfect to prevent damage during delivery, and to make sure the goods shipped to your hands in time and in good condition.

Company Information

    Dongguan Wilgex Lighting Co., Ltd was established in year 2003. We are specialized in developing, designing and manufacturing LED decorating and lighting proodcuts for more than 12 years.

    Our products assortment includes LED neon tube, LED wall washer, LED underwater / fountain / pool light, and LED undergroud light as well as garden lights.

    All of our neon tube are manufactured to the highest industry standards and utilize some of the best quality components available such as San'an, Edison and CREE LEDs, and MeanWell Power Supplies and are backed by a conservative 2 Year Warranty. All of our neon tube light are CE and RoHS certified and can reach to IP65, IP68 waterproof grade.
