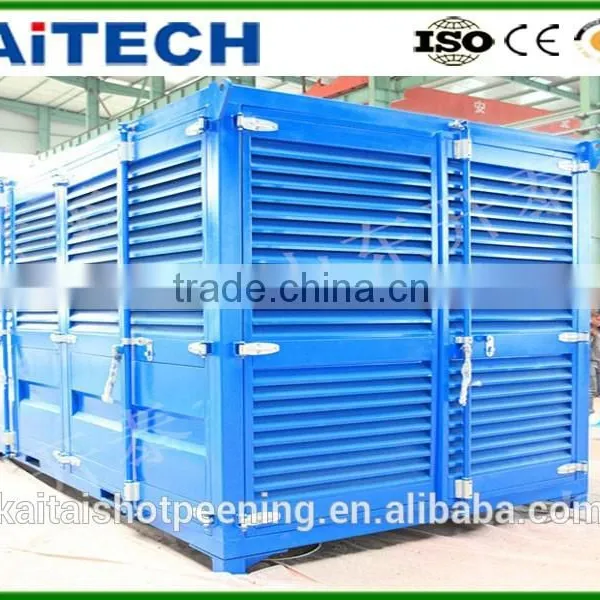

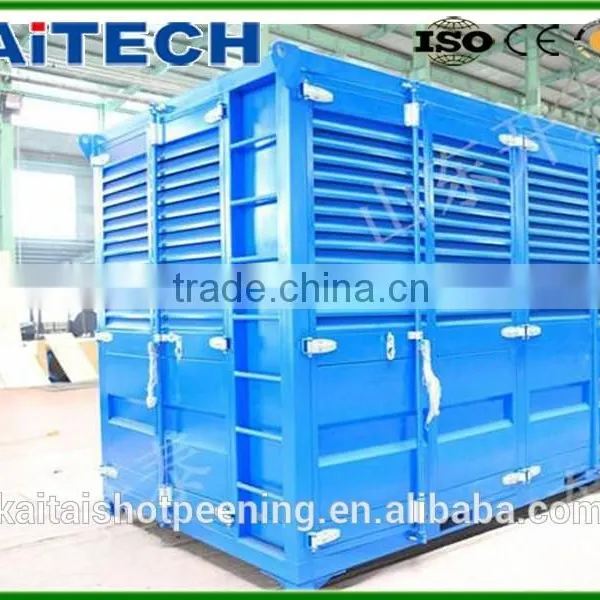

Air Cooled Type Shipyard Dehumidifier Indutrial Air Drier of Model CAAS 9000
The air-cooled dehumidifiers are used for drying air of up to 100% relative humidity (RH) with.
The applications are numerous and wide spread.Below are some examples:
Surface treatment during internal blasting and painting of tanks.
Shipping industry,both for permanent and temporary applications.
Controlling humidity levels in production process
Protection of equipment sensitive to corrosion.
Climatic improvements in damp areas.

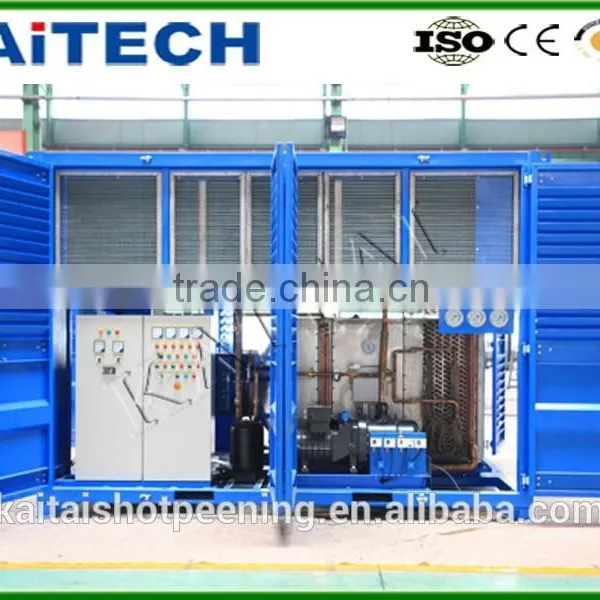

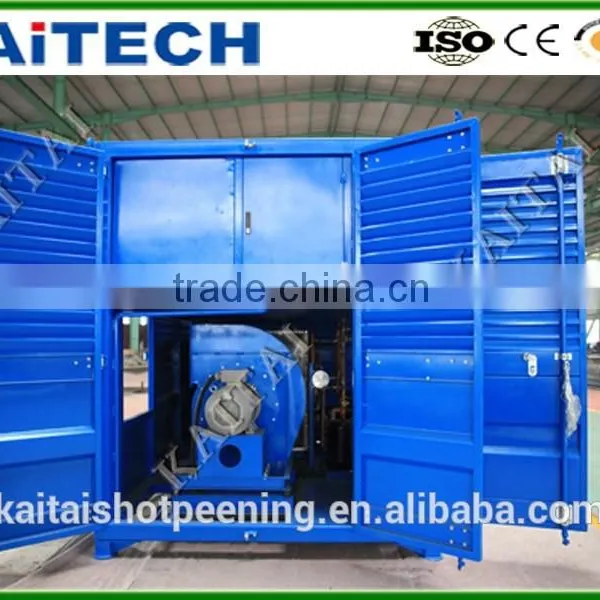

Dehumidifiers is delivered as a complete unit with fans,filters,rotor and controls.The dehumidifier is ready for site installation and connection to standard-size ducting.
Each dehumidifier will be custom designed according to the local conditions and the needs of the customers.
Technical data:
CAAS TECHNICAL SPECIFICATION | ||||||
Nominal | ||||||
Model |
CAAS18000 |
CAAS12000 |
CAAS9000 |
CAAS6000 |
||
Power supply |
3-Phase 380V – 415V 50Hz |
|||||
Air intake condition |
-5℃~38℃, RH60%~95% |
|||||
Discharge Condition |
25±3℃, RH≤45% |
|||||
Operation Modes |
100% cooling / 100% desiccant rotor / 100% /after heating / Mixing of Cooling + desiccant rotor dehumidification |
|||||
Process airflow |
18000 m3/hr |
12000 m3/hr |
8000 m3/hr |
6000 m3/hr |
||
Regenerative airflow |
6000 m3/hr |
4000 m3/hr |
3000 m3/hr |
2000 m3/hr |
||
Pressure |
2000 Pa |
2000 Pa |
2000 Pa |
2000 Pa |
||
Power Consumption |
439.6kw |
311.1kw |
208.8 kw |
163.3kw |
||
Compressor |
REFCOMP semi-hermetic twin screw compressor,c/w liquid injection cooling system |
|||||
|
120hp |
80hp |
60hp |
50HP |
||
Cooling Capacity |
364.9kw |
246.4kw |
183.8kw |
165.7 |
||
Desiccant rotor |
Rotor , Hi-efficient @Low reactivation Model
|
|||||
|
φ1525*200 |
φ1220*200 |
φ965*200 |
φ850*200 |
||
evaporator |
Copper tube with copper or aluminum fin, |
|||||
condenser |
Copper tube with aluminum fin, |
|||||
Cooling media |
R22 |
|||||
Cooling step control |
25% - 50% - 75% - 100% |
|||||
Heating step control |
25% - 50% - 75% - 100% |
|||||
Machine structure |
Containerized Canopy |
|||||
Discharge dimension |
4* φ300mm |
4* φ300mm |
4* φ250mm |
2* φ300mm |
||
Control modes |
PLC+HMI |
|||||
Control panel |
IP54,earth leak + phase sequence + low airflow + overload protection |
|||||
Temperature control |
After cooling-Regenerative- inlet-discharge temperature display + humidity display |
|||||
Fault status display |
Wrong phase/High-Low-oil pressure fault/Overloading |
|||||
Electric current display |
The overload for Motors & heater are displayed on ampere meter |
|||||
Pressure display |
High/low/oil pressure display + safety switches |
|||||
Air intake filtration |
Washable air filter |
|||||
Weight |
8000 kg |
5200 kg |
4600 kg |
3600 kg |
||
External dimension |
L5400mm * W2150mm * H2600mm |
L4800mm *W2150mm *H2500mm |
L4400mm *W2150mm *H2400mm |
L3600mm *W2150mm *H2200mm |
||
1. Thick film packing for large parts
2. Small parts packed in plywood case/boxes
3. Container loading and tranporting
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
Welcome to contact us or visit our company.
