Negotiable MOQ: 100 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
Epistar
Input Voltage(V):
12,24,110,220
Lamp Power:
9
Contact Supplier Request Quote Chat Now
Dongguan Wilgex Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar
Input Voltage(V) 12,24,110,220
Lamp Power 9
Lamp Luminous Flux(lm) 376
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, all single color
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 50000
Lamp Body Material PVC
IP Rating IP65
Certification CE, EMC, LVD, PSE
Emitting Color Warm White
Place of Origin Guangdong, China
Brand Name Wilgex
Model Number WJ-NF-SMD2835-10*20



mini Flex LED Neon flexible rope light 10X20mm SMD2835



mini Flex LED Neon flexible rope light 10X20mm SMD2835





Product Description



 Features & Benefits

•  Milky,Crystal and Colored PVC jacket design

•  Dome/flat surface,continous and uniform illumination,no LED dot or dark spot.

•  Extremely flexible

•  100% waterproof ( IP65 and IP68 level)

•  100% breakage free

•  Low voltage or line voltage options

•  Durability,Impact Resistant

•  Weather Resistant , UV protection

•  Minimal heat output(Safe to the touch)

•  Longer life to 50,000 Hours

•  Easy to install(Cuttable on location)

•  Extremely low maintenance costs

•  80% less energy consumption of glass neon for Wilgex Latest design DMX digital SMD LED Neon Flex

•  Does not interfere with Video/Audio systems nearby

•  Available in all single colors,RGB colors & Digital RGB colors

•  2 years warranty



Parameter for Wilgex'sLED Neon Flex

Latest design SMD 2835  120PCS type LED neon flex--single color
Item No.WJ-NF-SMD2835-15*26mmWJ-NF-SMD2835-10*20mm
LED TypeSMD 2835SMD 2835
LED Spacing0.83cm0.83cm
LED qty/M120pcs120pcs
Input voltage220V110V24V12V220V110V24V12V
Cutting length100cm50cm8.33cm4.17cm100cm50cm8.33cm4.17cm
Watt/meter9W/m9W/m
Max.loading Length100m50m20-25m10-15m100m50m20-25m10-15m
LED colorRedGreenBluePinkWhiteYellowOrangePurpleWarm white
Lumen / m233388156158450228235158340
Size15x26mm10x20mm
Latest design SMD 2835  96PCS type LED neon flex--single color
Item No.WJ-NF-SMD2835-15*26mmWJ-NF-SMD2835-10*20mm
LED TypeSMD 2835SMD 2835
LED Spacing1.04cm1.04cm
LED qty/M96pcs96pcs
Input voltage220V110V24V12V220V110V24V12V
Cutting length100cm50cm12.5cm6.25cm100cm50cm12.5cm6.25cm
Watt/meter7W/m7W/m
Max.loading Length100m50m20-25m10-15m100m50m20-25m10-15m
LED colorRedGreenBluePinkWhiteYellowOrangePurpleWarm white
Lumen / m233388156158450228235158340
Size15x26mm10x20mm



Latest design SMD 5050 RGB type LED neon flex
Item No.WJ-NF-SMD5050-15*26mmWJ-NF-SMD5050-10*20mm
LED TypeSMD 5050SMD 5050
LED Spacing0.83cm0.83cm
LED qty/M120pcs120pcs
Input voltage220V110V24V12V220V110V24V12V
Cutting length100cm50cm8.33cm4.17cm100cm50cm8.33cm4.17cm
Watt/meter12W/m12W/m
Max.loading Length100m50m10-20m5-10m100m50m10-20m5-10m
LED colorRGBRGB
Lumen / m443443
Size15x26mm10x20mm
Latest design SPI Digital 5050 type LED neon flex
Item No.WJ-NF-SMD5050-15*26mmWJ-NF-SMD5050-10*20mm
LED TypeSMD 5050SMD 5050
LED Spacing1.67cm1.67cm
LED qty/M60pcs60pcs
Input voltage220V110V24V12V220V110V24V12V
Cutting length--10cm10cm--10cm10cm
Watt/meter12W/m12W/m
Max.loading Length--8-10m8-10m--8-10m8-10m
LED colorRGBRGB
Lumen / m443443
Size15x26mm10x20mm



mini Flex LED Neon flexible rope light 10X20mm SMD2835







Different Size and Shape Options for Our Color Jacket LED Neon


mini Flex LED Neon flexible rope light 10X20mm SMD2835



mini Flex LED Neon flexible rope light 10X20mm SMD2835

Control method for RGB LED Neon Flex--4 wires 3 loops

Available voltage:DC12V/24V,AC 110V-120V,AC 220V-230V



I: Votage:DC12V/24V connection diagram

 mini Flex LED Neon flexible rope light 10X20mm SMD2835

II: Voltage:AC110-120V,or AC 220V-230V

mini Flex LED Neon flexible rope light 10X20mm SMD2835

Control Method for Digital RGB LED Neon Flex



I:   SPI control connection drawing:

mini Flex LED Neon flexible rope light 10X20mm SMD2835

II: Directly DMX 512 programmes control connection drawing:

mini Flex LED Neon flexible rope light 10X20mm SMD2835







Power connection drawing of Single Color LED Neon Flex

mini Flex LED Neon flexible rope light 10X20mm SMD2835





Main Machine

mini Flex LED Neon flexible rope light 10X20mm SMD2835

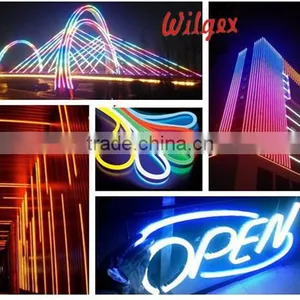

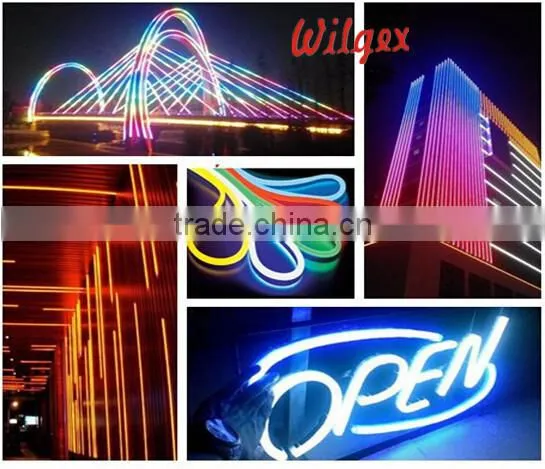

Application for LED Neon Flex



LED Neon Flex is widely used in city lighting engineering, architectural outline sketch, business travel façade decoration, billboards, taxi signing ballroom, stage, background production and a large number of places such as night scene decoration. mini Flex LED Neon flexible rope light 10X20mm SMD2835



Certifications

mini Flex LED Neon flexible rope light 10X20mm SMD2835

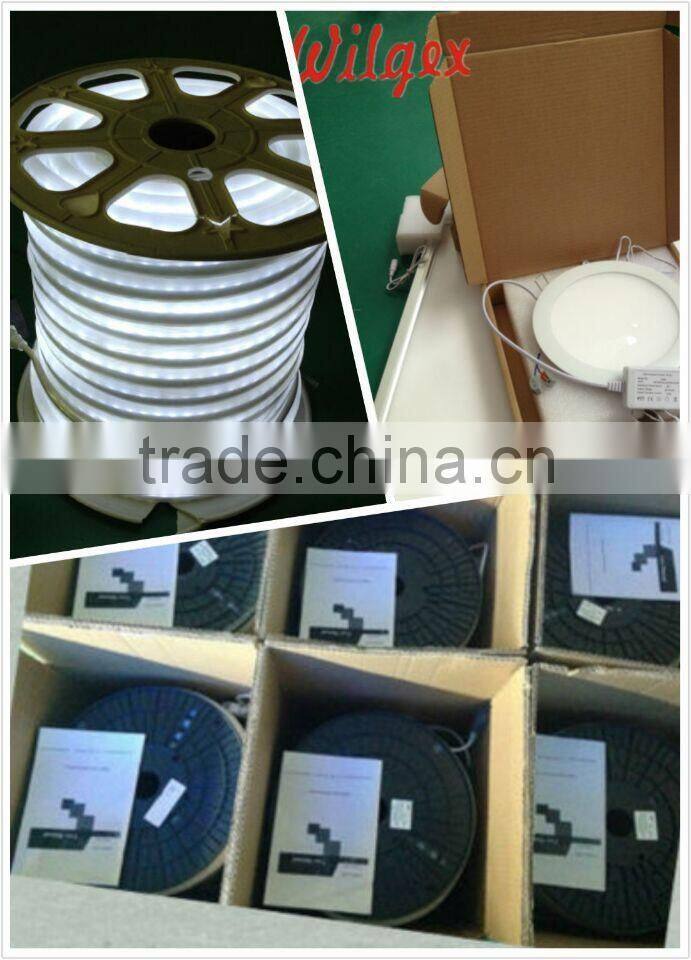

Package

mini Flex LED Neon flexible rope light 10X20mm SMD2835



Why Choose Us?

Our firm brings a team of successful lighting manufactures and sales experts in the field of LED lighting production. We have over 12 years of professional experience in this field. Through the complete and rich information, you will easily find satisfactory services to meet your market demands.



We have a 2,000 square-meter factory and 124 experienced workers to produce different product. We strongly believe both the quality of our products and the productivity of our factory will fulfill any of your market needs.



Our raw material (LED) comes from Cree, Taiwan Epistar, and Edison. And our all products (Nichia patented) can be available for Osram, sold in Europe and Japan. Our major business partners spread over the United States, Canada, Europe and the Middle East.



Our products show extremely long life span and stability in the function. We guarantee the lifespan is over 50,000 hours.



We can deliver samples to you within 3 days, and deliver your ordered products within 7 to 15 days.
