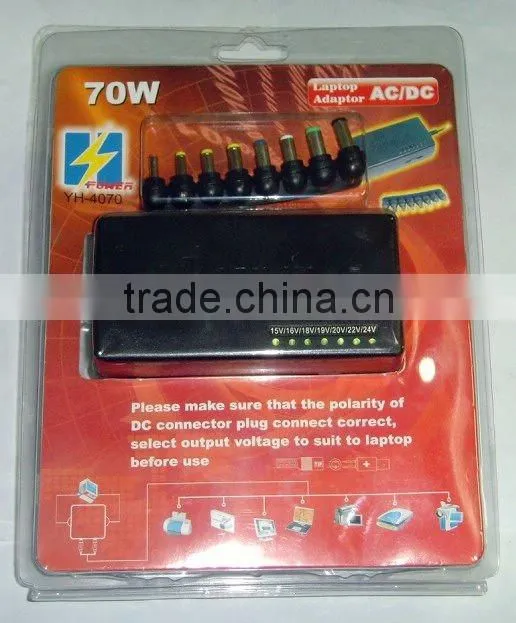

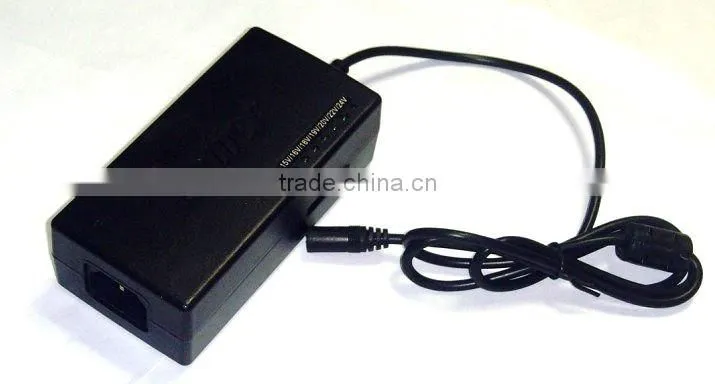

Laptop Modify Voltage Adapter
US$ 4 - 7.1
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YH POWER
Model Number:
YH-4070
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
YH POWER
Model Number
YH-4070
Usage
Laptop
Output Type
DC
Connection
Desktop
Specifications
1.modify voltage adapter with 8 DC tips2.CE,RoHS available
3.Overload/temperature/voltage protection
4.12 month warranty
Sale---Universal laptop adapters YH-4070 70W output
| Specification | |||
| Products specification | |||
| 1 | Model | YH-4070 | |
| 2 | Name | modify voltage adapter 70W | |
| 3 | Input | 110V-240VAC 50/60Hz 1.2A Max | |
| 4 | Output | 15/16/18/19/20V=3.5A Max 22/24V 3.0A Max | |
| 5 | Output power | 70W | |
| 6 | Input Power | 76W | |
| 7 | Efficience | Over 88% | |
| 8 | Overload Protection | YES | |
| 9 | Output over voltage protection | YES | |
| 10 | Line Regulation | 1% | |
| 11 | Load Regulation | 1% | |
| Environment Requirement | |||
| 1 | Operating Temperature | 0C to 40C | |
| 2 | Operating Humidity | 20% to 80% | |
| 3 | Storage Temperature | -10C to 70C | |
| 4 | Storage Humidity | 10% to 90% | |
| Advantage | |||
| 1 | Stablized output,low ripple&low interference | ||
| 2 | Adjustable output voltage | ||
| 3 | High efficiency&low energy consumption | ||
| 4 | Power LED light | ||
| 5 | One Year Warrant | ||
| Universal distribution DC connectors spec | |||
| Series Num | Outside path | Inside path | length |
| 1 | 6 | 3.2/1.4 | 13 |
| 2 | 6.3 | 3 | 13 |
| 3 | 5.5 | 3 | 12 |
| 4 | 5.5 | 2.1 | 12 |
| 5 | 5.5 | 1.7 | 12 |
| 6 | 4.8 | 1.7 | 11 |
| 7 | 4 | 1.7 | 11 |
| 8 | 3.5 | 1.35 | 11 |
DC bent tips connector | |||||||
| A | 6.0*1.0 | Fujitsu, Sony, Panasonic etc | |||||
| B | 6.3*3.0mm | Toshiba 15V/3A,15V/4A etc., NEC etc | |||||
| C | 5..5*3.0mm | Samsung 19V/3.16A,19V/3.75A;19V/4.22A, | |||||
| D | 5.5*2.1mm | Acer, Lieton ,NEC, Compaq etc | |||||
| E | 5.5*1.7mm | Acer, Toshiba etc | |||||
| F | 4.8*1.7 | Compaq/HP 18.5V, Delta,Asus, NEC 19V | |||||
| G | 4.0*1.7mm | Samsung Q20 | |||||
| H | 3.5*1.35mm | For Sharp | |||||
