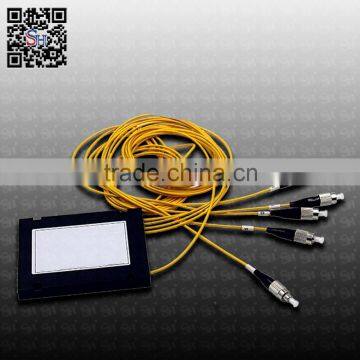

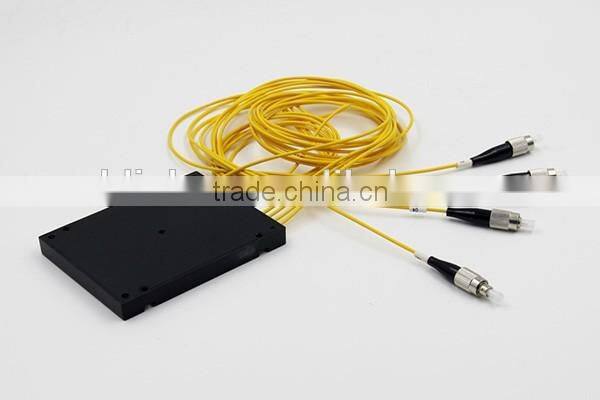

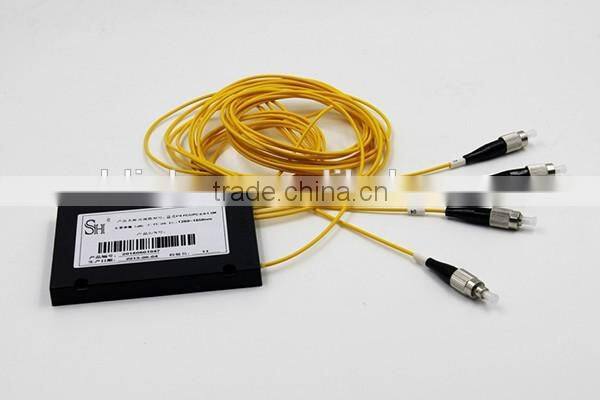

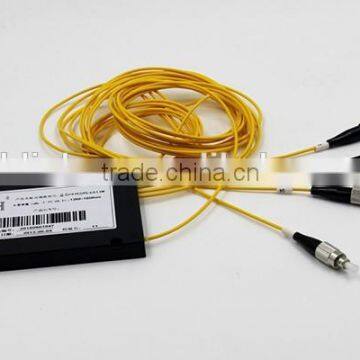

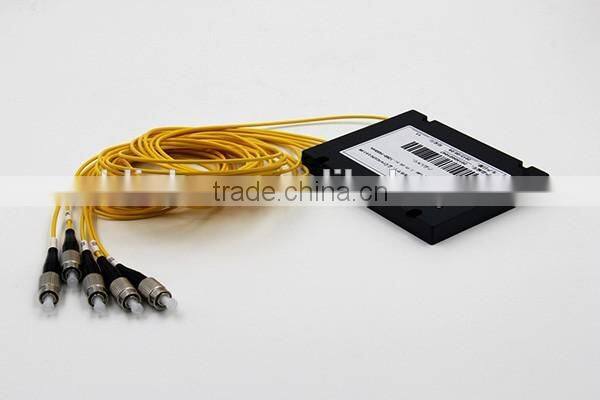

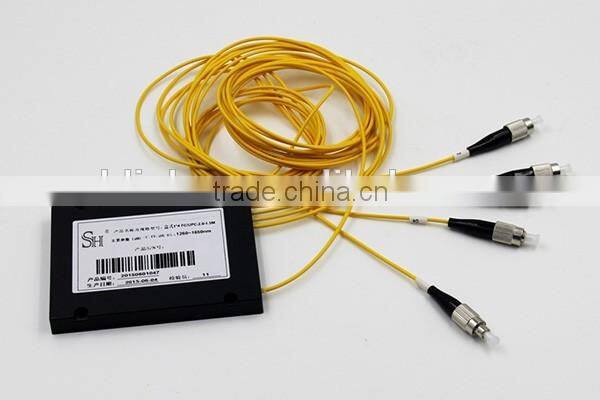

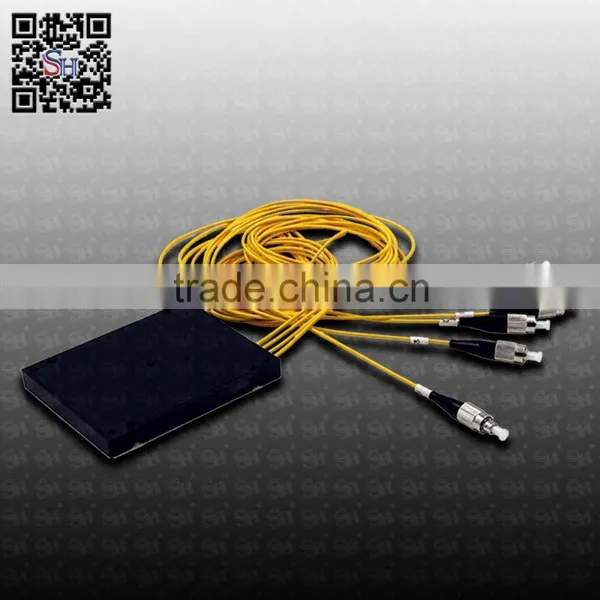

1x4 GPON ABS PLC Splitter
SH-PLC1B04 PLC splitter in ABS box package offers the 1 input and 4 output of 2.0 or 3.0 fiber, and different connector options like SC, FC, LC, or ST etc. and polishing of PC, UPC, or APC. It is widely used in GPON, EPON distribution network cabling.
PLC (Planar Lightwave Circuit) Splitter, adopting semiconductor technology (lithography, etching, developer technology), offers accurate and even splits with minimal loss in an efficient package. It complies with Telcordia GR-1209-CORE and Telcordia GR-1221-CORE-, widely used in fiber optic cabling.
- Split Ratio: 1:4
- Compact package, suitable for density applications
- Wide temperature range (-40 to 85 °C), allowing to deploy in the areas of extreme climate
- Split ratio up to 64, providing a high reliability
- Wide range of wavelengths (1260 – 1650 nm), easy to adjust
- Low insertion loss and Polarization Dependent Loss

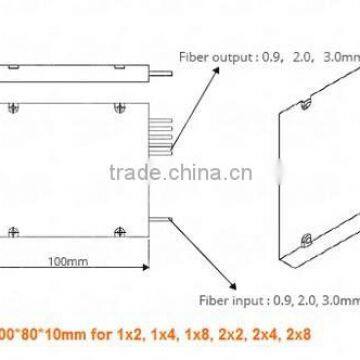

- Fiber input: 0.9 mm, 2.0mm or 3.0mm fiber available
- Fiber output: 0.9 mm, 2.0mm or 3.0mm fiber available
- FC, SC, ST, LC…available
- Fiber to the point (FTTX)
- Fiber to the home (FTTH)
- Passive optical networks(PON, GEPON)
- Local area networks (LAN)
- Cable television (CATV)
- Telecommunication Networks
Parameter |
Port Configuration |
|||||
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
|
Fiber Type |
G.657A |
|||||
Connector |
FC, SC, ST, LC… |
|||||
Operating Wavelength(nm) |
1260~1650 |
|||||
Insertion Loss(dB) |
3.8 |
7.1 |
10.2 |
13.5 |
16.5 |
20.5 |
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
Return Loss (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
PDL (dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.8 |
Temperature Dependent Loss(-40~+85°C) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
Operating Temperature (°C) |
-40~+85°C |
|||||
Storage Temperature (°C) |
-40~+85°C |
|||||
1. Do you proivde the OEM/ODM service?
Yes, based on our powerful R&D ability and manufacturing capacity, we welcome the OEM/ODM orders.
2. How can I pay?
We accept Bank T/T, CASH, PayPal. Western Union...
3. What's the shipment means?
We has established long-term business relationship with some forwarder and most express company, to provide the most economic transportation for each order by air/sea/express...
such as DHL, TNT, FedEX, UPS...
4. What's the lead time?
Generally, 1~7 days for the sample or small orders with regular items.;
1~3 weeks for the bulk orders.
The accurate lead time should be decided when the order is placed.
