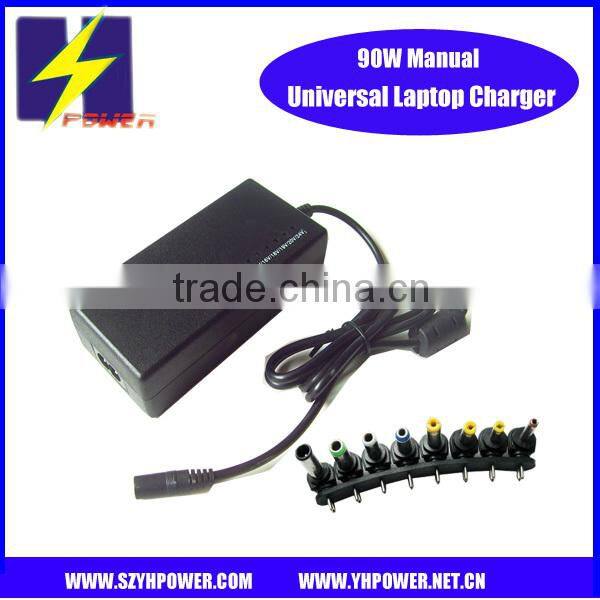

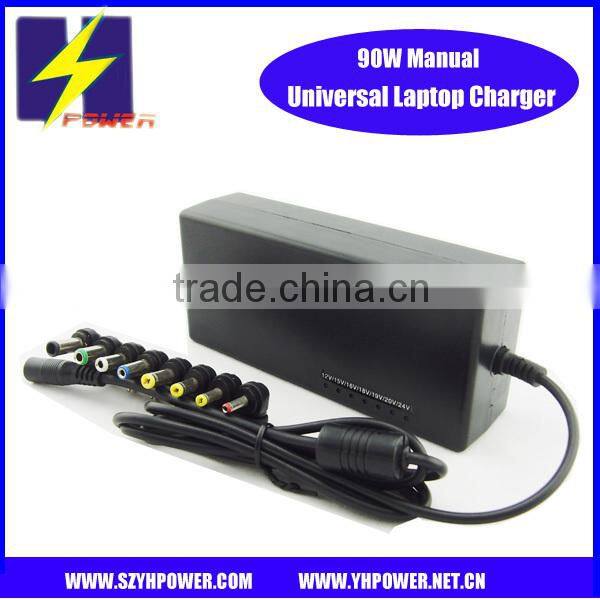

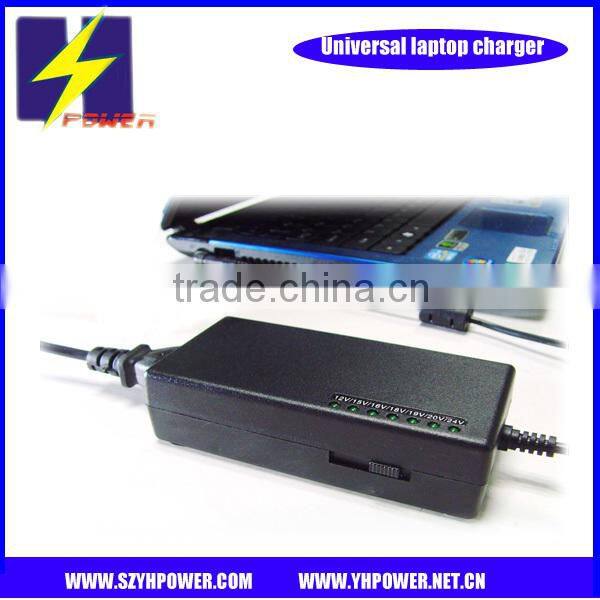

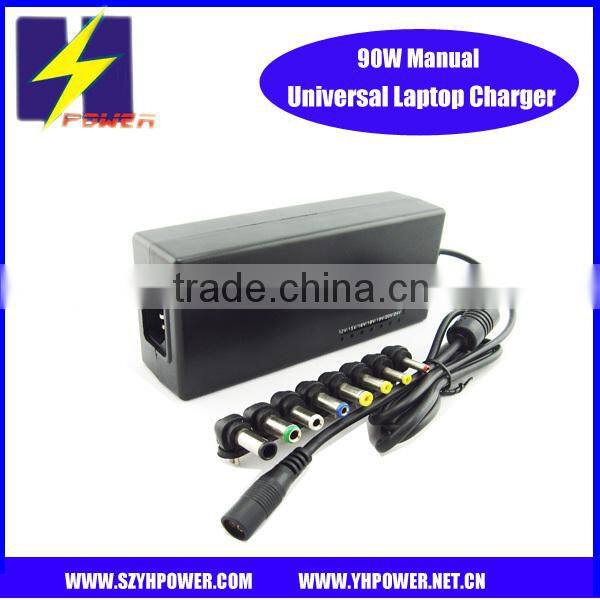

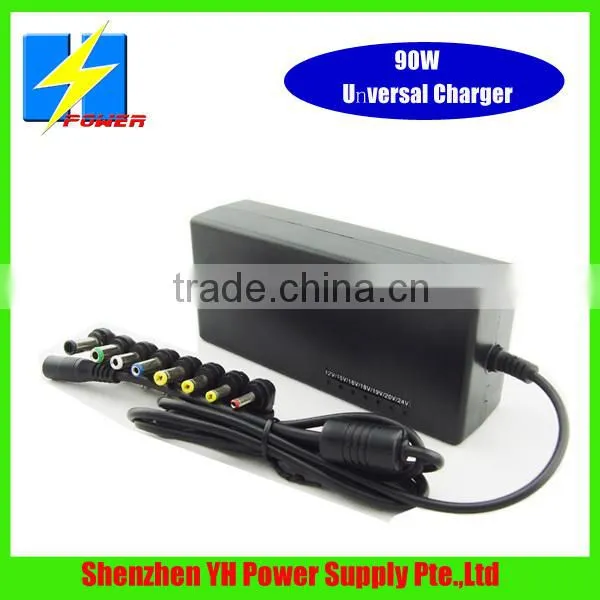

Laptop Universal Charger 90w 12v-24v Output

Name: Laptop Universal Charger 90w 12v-24v Output
Brand: YH Power
SKU: 106544281
Availability: InStock

US$ 7 - 9 MOQ: 200 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

YH Power

Model Number:

YH-4090

Shenzhen YH Power Supply Pte. Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name YH Power

Model Number YH-4090

Usage Laptop

Output Type DC

Connection Desktop

Specifications

1.laptop universal charger
2.Color box or blister packing
3.Overload/temperature/voltage protection
4.12 month warranty

Specification
	Products specification
1	Model	YH-4090
2	Name	laptop universal charger 90W
3	Input	110V-240V AC=50/60Hz 1.3A Max
4	Output	12/15/16/18/19v=4.5A Max 20/24V 3.5A Max
5	Output power	90W
6	Input Power	100W
7	Efficience	Over 88%
8	Overload Protection	YES
9	Output over voltage protection	YES
10	Line Regulation	1%
11	Load Regulation	1%
	Environment Requirement
1	Operating Temperature	0C to 40C
2	Operating Humidity	20% to 80%
3	Storage Temperature	-10C to 70C
4	Storage Humidity	10% to 90%
	Advantage
1	Stablized output,low ripple&low interference
2	Adjustable output voltage
3	High efficiency&low energy consumption
4	Power LED light
5	One Year Warrant

Universal distribution DC plug spec
Series Num	Outside path	Inside path	length
1	6	3.2/1.4	13
2	6.3	3	13
3	5.5	3	12
4	5.5	2.1	12
5	5.5	1.7	12
6	4.8	1.7	11
7	4	1.7	11
8	3.5	1.35	11

DC bent tips connector comfortable
A	6.0*1.0	Fujitsu, Sony, Panasonic etc
B	6.3*3.0mm	Toshiba 15V/3A,15V/4A etc., NEC etc
C	5..5*3.0mm	Samsung 19V/3.16A,19V/3.75A;19V/4.22A,
D	5.5*2.1mm	Acer, Lieton ,NEC, Compaq etc
E	5.5*1.7mm	Acer, Toshiba etc
F	4.8*1.7	Compaq/HP 18.5V, Delta,Asus, NEC 19V
G	4.0*1.7mm	Samsung Q20
H	3.5*1.35mm	For Sharp
