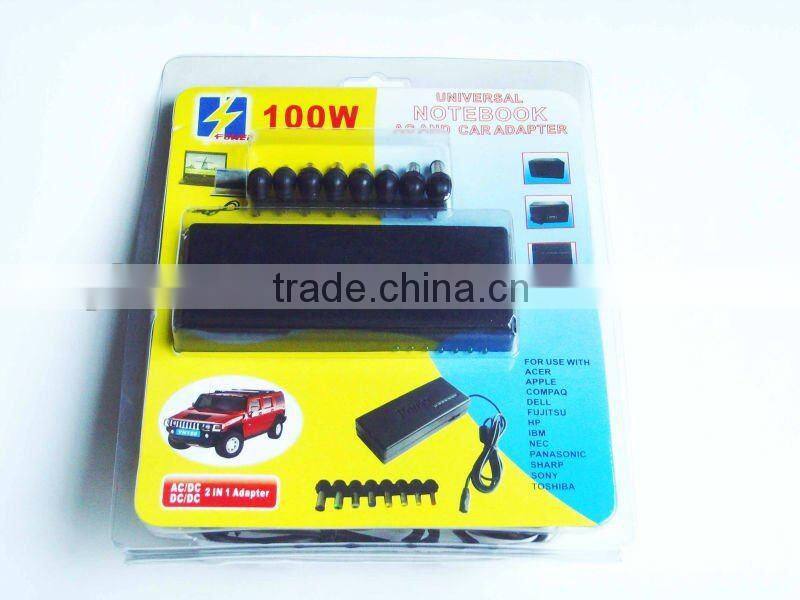

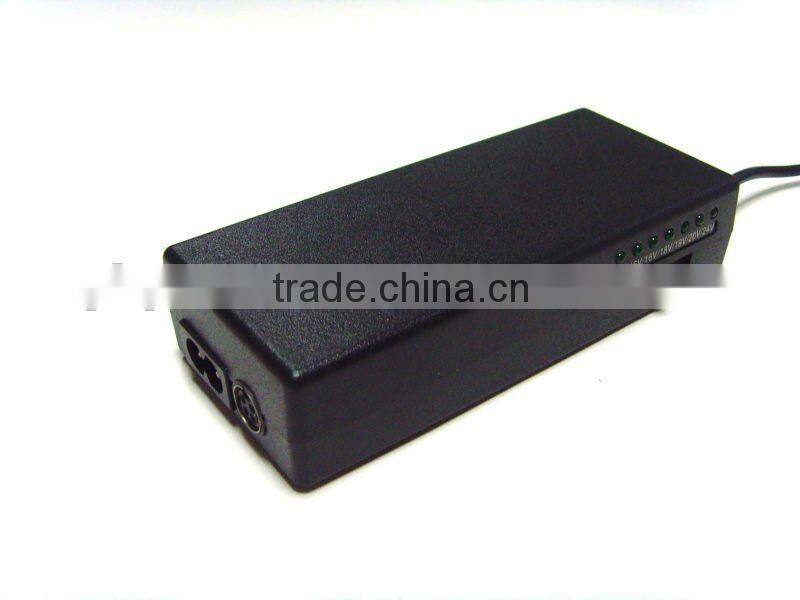

100w Universal Car and Home Laptop Adapter With USB Port
Specifications
1.100w universal car and home laptop adapter2.For car and home use
3.12 months warranty
4.USB can charger MP3,cell phone
Wholesale---3in1 car and home laptop adapter YH-8100
| AC/ DC universal charger Specification | ||||
| Products specification | ||||
| No. | Item | SPC | ||
| 1 | Model | AC | DC | |
| 2 | Rated Input Voltage | 110V/230V 50Hz/60Hz | 12V | |
| 3 | Input Voltage Range | 100V-240V 45Hz-65Hz | 11V-14V | |
| 4 | Output Power | 100W | 100W | |
| 5 | Input Rated Current | 1.14A | 10A | |
| 6 | Input Power | 114W | 120W | |
| 7 | Output Current | 12V/15/16/18/19V | 5.26A MAX | |
| 8 | 20V/24V | 4.17A MAX | ||
| 9 | Output Voltage | 12/15/16/18/19/20/24V | 0~+0.5V NO LAOD | |
| 10 | 12/15/16/18/19/20/24V | ±0.3V Rating LOAD | ||
| 11 | USB Output:5V DC | 1.0A MAX | ||
| 12 | Efficiency | >88%(TYP) | ||
| 13 | Short circuit Protection | YES | ||
| 14 | Overload protection | YES | ||
| 15 | Ripple Noise | 500mV | ||
| 16 | Line Regulation | 1% | ||
| 17 | Load Regualtion | 1% | ||
| Environment Requirement | ||||
| 1 | Operating Temperature | 0C to 40C | ||
| 2 | Humodity | 20% to 80% | ||
| 3 | Storage Temperature | -10C to 70C | ||
| 4 | Storage Humidity | 10% to 90% | ||
| Advantage | ||||
| 1 | 1 | USB charger function | ||
| 2 | 2 | Stablized output,low ripple&low interference | ||
| 3 | 3 | Adjustable output voltage | ||
| 4 | 4 | High efficiency&low energy consumption | ||
| Universal distribution DC plug spec | ||||
| Series Num | Outside path | Inside path | length | |
| 1 | 6 | 3.2/1.4 | 13 | |
| 2 | 6.3 | 3 | 13 | |
| 3 | 5.5 | 3 | 12 | |
| 4 | 5.5 | 2.1 | 12 | |
| 5 | 5.5 | 1.7 | 12 | |
| 6 | 4.8 | 1.7 | 11 | |
| 7 | 4 | 1.7 | 11 | |
| 8 | 3.5 | 1.35 | 11 | |
| DC bent tips connector | |||||||
| A | 6.0*1.0 | Fujitsu, Sony, Panasonic etc | |||||
| B | 6.3*3.0mm | Toshiba 15V/3A,15V/4A etc., NEC etc | |||||
| C | 5..5*3.0mm | Samsung 19V/3.16A,19V/3.75A;19V/4.22A, | |||||
| D | 5.5*2.1mm | Acer, Lieton ,NEC, Compaq etc | |||||
| E | 5.5*1.7mm | Acer, Toshiba etc | |||||
| F | 4.8*1.7 | Compaq/HP 18.5V, Delta,Asus, NEC 19V | |||||
| G | 4.0*1.7mm | Samsung Q20 | |||||
| H | 3.5*1.35mm | For Sharp | |||||
