Earthquake-proof Steel Structure Prefabricated Warehouse, Steel Frame Warehouse With Low Price

Earthquake-proof Steel Structure Prefabricated Warehouse, Steel Frame Warehouse With Low Price thumbnail-1
Earthquake-proof Steel Structure Prefabricated Warehouse, Steel Frame Warehouse With Low Price photo-1
US$ 50 - 98 MOQ: 500 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RS
Model Number:
RS01030003
Contact Supplier Request Quote Chat Now
Guangzhou Ruosky Building Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name RS
Model Number RS01030003
Material Steel
Use Carport, Hotel, House, Other, Office, Villa, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Villa, Warehouse, Workshop,Plant
Product Description

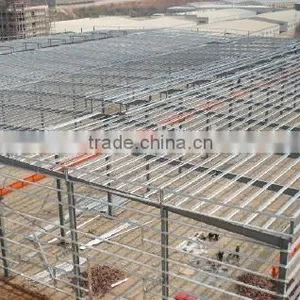

The steel structure warehouse is an pre-engineered steel structure which is widely used for the large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and other buildings. And the steel structure warehouse is good at easy installation, stable structure, earthquake proofing, water proofing, energy conserving and environmental protection, etc.



Advantages of steel structure warehouse:

1. Easy to assemble and disassemble with simple and common tools

2. 100% fireproof performance with rockwool sandwich panel.

3. Environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.

4. Good performance of heat-insulation and Good waterproof performance without extra facilities.

5. Various designs available, customized designs acceptable.

6. Single span or multiple spans for choose and the max span clear distance is 36m, without middle columns

7. Low cost: unit price range from USD50 to USD98/square meter FOB according to customer’s request.

8. Steel structure makes the house resist heavy wind of 140km/h and 8-grade earthquake

9. Widely used in construction site, office building, dormitory etc.

10. Safety and stable it could stand firmly more than 50 years.


The architecture type focus on single storey and multi-storey,one span or multi-span.And the span can be selected by users with different using demands within the design specification

Product Name
Steel structure warehouse/ workshop
Main Material
H-Steel and EPS sandwich panel or corrugated steel sheet
Steel column and beams
H-Steel with High-strength and low-alloy structural steel
Purlin
C-steel or Z--steel
Column and Beam
hot rooled or welded H section, I section; painting or galvanized
wall and roof
Hot-dipped galvanized corrugated steel sheet or EPS, PU, Rockwool sandwich panel
Window
UPVC or Aluminum alloy with glass for window;
Door
Double leafs sliding door or rolled door by power
Connection Type
Bolted connection
Carbon steel quality
Q235B,Q345B Q195, Q215, Q235, Q255, Q275, Q345,etc.
Preservative Treatment
 More than 3 times painted for Steel part
Product Detaileds
Foundation Detailed
High-Strenght Bolt: Galvanized steel material Q235B
The dimension must be based on the drawings
Anchor Bolt: Galvanized steel material Q235B
Distance : Based on the drawings
Embedded Anchor: Galvanized steel material Q235B
Necessary tools: welder, level indicater, Position plate
Connection Type: after welding to use fine stone concrete finished

Column Base

Anchor Bolt Detailed

Embedded Anchor

Main steel frame of warehouse
1. Steel column: To use Q235B H-Section steel with 8mm --12mm thickness
2. Steel Beam: To use Q235B H-Section steel with 8mm --12mm thickness
3. Wall and roof Purlin: To use C-Section or Z-section Galvanized steel with 2.0--3.0mm thickness
4.Conect piece: steel tube with painted
5.High-Strenght Bolt: Galvanized steel material Q235B
Wall system of Warehouse
1. Wall panel: Hot-dipped galvanized corrugated steel sheet or EPS, PU, Rockwool sandwich panel
2. window: UPVC or Aluminum alloy with glass for window;
3. Door:Double leafs sliding door or rolled door by power
4.Gable wall: Hot-dipped galvanized corrugated steel sheet
5.Decorative accessories: corner cover panel, Tapping screw, cement glass and rivet.
Roof system of Warehouse
1. Roof panel: Hot-dipped galvanized corrugated steel sheet or EPS, PU, Rockwool sandwich panel
2.Skylight: if the roof put some skylight, then it can make the indoor room become bright.( FRP material)
3.Ventilation system, To installation the ventilation equipment can make indoor and outdoor air convection and heat radiation effect.(Hot-dipped galvanized steel)
4.Drainage equipment: as usual, to use UPVC water pipe and Hot-dipped galvanized steel gutter
5.Decorative accessories: Ridge board, Tapping screw, cement glass and rivet.
Product Show
Our Company

Our workshop

The workers are processing export orders by CNC Machine tool in the workshop.

This place have total area:5200㎡

Our factory

The semi finished steel structure pile up like a mountain hand waiting for the next processing step

This place have total area:8600㎡

Our warehouse

The steel structure products pile up like a mountain hand and waiting for shipment.

This place have total area:3270㎡

Packing & Delivery

Packing Details  : Nude Packing

Delivery Details : 40-50 days

1. Professional Loading container
Top-open container for loading steel column and steel beam by crane
2. Professional Loading container
40HQ container for loading wall panel and roof panel by human power
3. Professional Loading container
40HQ container for loading wall panel and roof panel by human power
Product Structure
Successful Cases

Congo-Brazzaville Project

This project was export to Congo-Brazzaville on June 18th 2015, and some detailed information for this project as below:

1. Building area: 1988㎡

2. Heigth: 12.6m

3. Span: 26m

4. Irregular pentagon (five sides)

We sent the technicians to assistance installation for whole warehouse project and 2 months to finished all.

Angola-Luanda Project

This project was export to Angola-Luanda on April 17th 2014, and some detailed information for this project as below:
1. Building area: 2370㎡
2. Heigth: 10m
3. Span: 22m
4. Irregular warehouse (four sides)
We sent the technicians to assistance installation for whole warehouse project and 45days to finished all.

Reunion Island

This project was export to Angola-Luanda on September 21th 2012, and some detailed information for this project as below:
1. Building area: 3240㎡ (72x45m)
2. Heigth: 11m
3. Span: 23m
4. Rectangular warehouse (four sides)
We sent the technicians to assistance installation for whole warehouse project and 50days to finished all.

Our Service
How to order for us?
Step 1: Send us your requirements by email or by  Ali Tradermanager
Step 2: You will get a very competitive quoataion under your requirement from us.
Step 3: Negotiate and confrim each details for goods, get agreement and sign contract with us.
Step 4: Advanced payment and production
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract.
Step 6: Balance payment and shipping
Step 7: Handing Shipping files to help clients get goods from transporter in time.
Step 8: Clients get goods and go into warranty time.
Why did our clients choose us without doubt? because of ......
1.Advanced machinery, well trained workers.
2.We have more than 10 years production, sales and export experience in the field of building material industry.
3.Unique designed, good quality, competitive price.
4.We have joined in Alibaba  credit guarantee services (Trade assurance), it will be ensure that all of our client funds safe and not worry about the goods and service.
Remarks: Trade assurance is a service by alibaba designed to creat trust in trade,providing buyers with a set of features and protections to help ensure suppliers honor important details of the contract. If supplier does not meet the shipping time or pre-shipment product quality requirements in the contract, will refund up to the covered amout for your order.
FAQ
1. Q: Are you trading company or manufacturer and Can you make color order ?
     A: We are factory, and Yes. We can coustomized the color according to your requirements.
2. Q: How long is your delivery time?
     A: Generally it is 30 days if the goods are in stock. or it is 40-50 days if the goods are not in stock, it is according to quantity and color.
3. Q: Do you provide samples ? is it free or extra ?
    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4. Q: How do you guarantee the quality of the products?
     A: Strict product quality, unqualified resolute don't factory.This is the tenet of our factory. Every one of our products have strict testing procedures, must be 100% quality assurance.
5. Q: What is your terms of payment ?
     A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance shouble be before
shippment.
