Fiberglass Geogrid With CE,ISO9001 Certification and Pass SGS,TRI Test

warp knitting fiberglass geogrid coated with bitumen

Introduction

Fiberglass geogrid is a kind of planar mesh material using alkali-free fiberglass yarn as base body and then coated with high quality modified asphalt. It is warp knitted with oriental structure which gives full play of yarn strength and improves its mechanical property to make the product high tensile, tearing and creep-resistant. Moreover, the composite property of coating with asphalt makes full protection of the fiberglass matrix and greatly improves its wear and shear resistance. All the advantageous functions make the product have a good performance in pavement strengthening, track cracking and solving difficulties of strengthening the bituminous pavement.

Product features

1. Light weight, high tensile strength, high modulus, low elongation and good

   toughness.

2. Corrosion resistance, no long-term creep, long life span.

3. Good physical and chemical stability and good thermal stability.

4. Resistant to fatigue cracking, high-temperature tr;ack and low temperature

  shrinkage cracking.

5. Delaying and decreasing crack reflection.

Product show

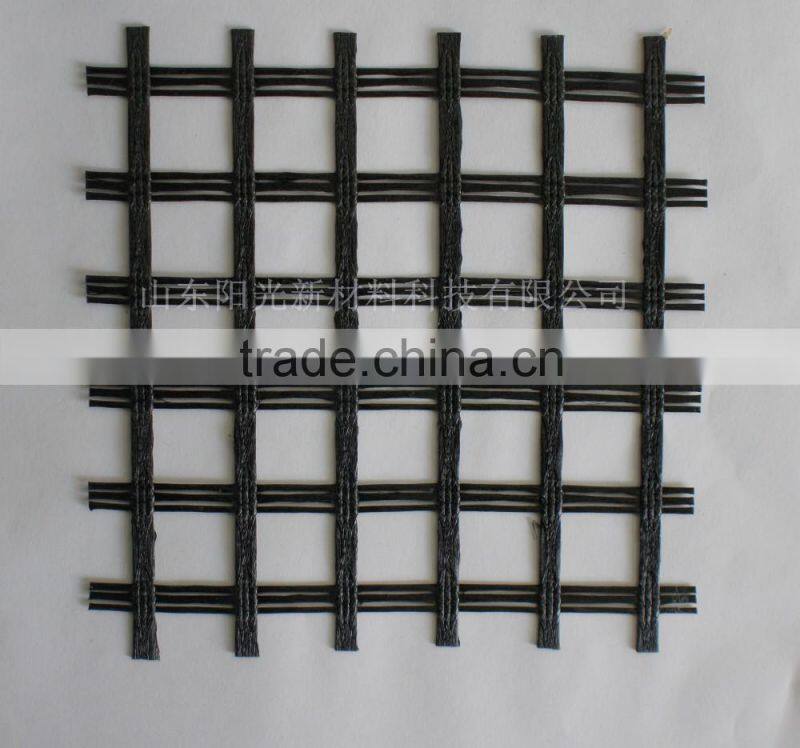

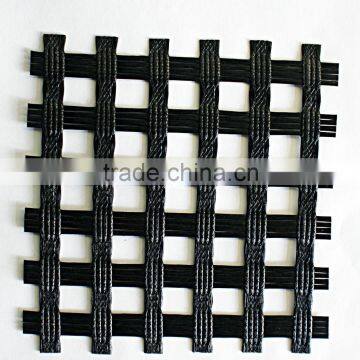

Fiberglass geogrid  50-50KN

Application

1.Sunshine Fiberglass Geogrid used for Road surface asphalt overlay construction engineering; Asphalt layers reinforcement.

2. Converting old cement concrete road into composite road; Restraining

   reflection cracking caused by block shrinkage.

3. Road extension; Preventing and controlling the cracking caused by new

   and old combination and uneven settlement.

4. Treatment of the conjunction between tunnel and bridge or foundation.

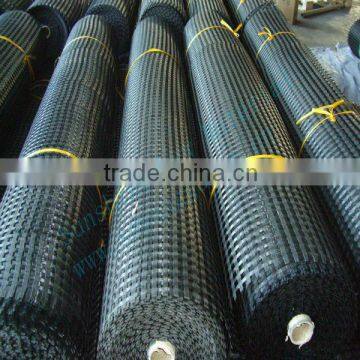

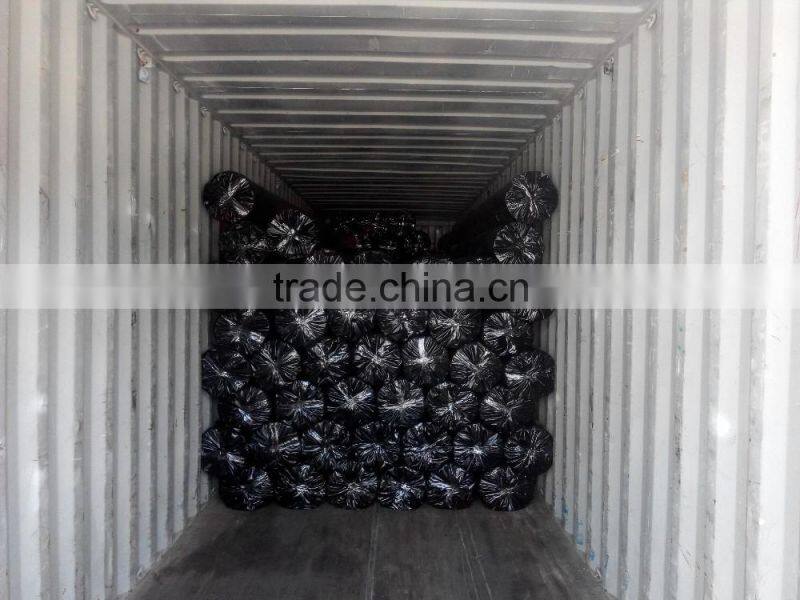

Package:paper pipe inside and black PE membrane outside or according to request

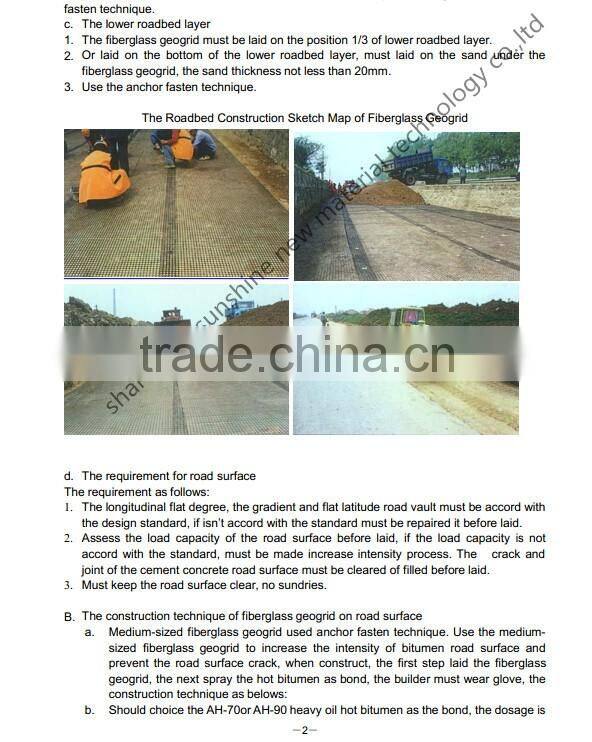

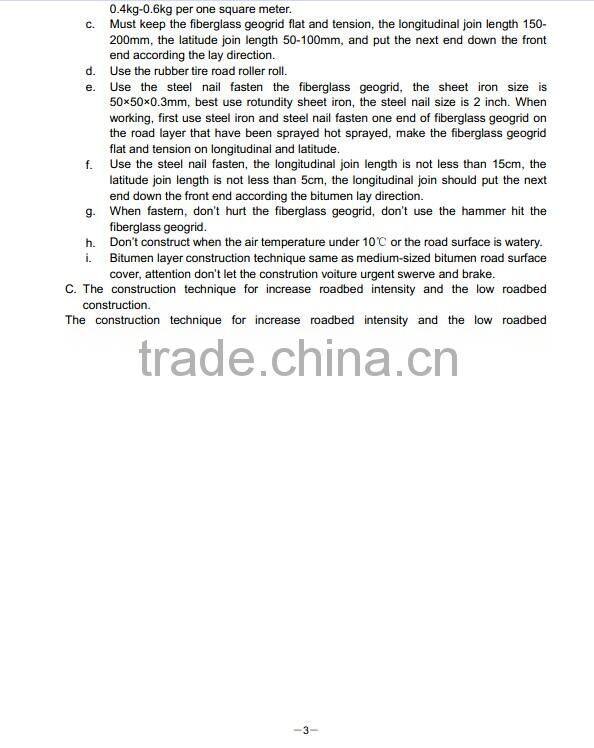

 Installation Manual

Any questions,Please feel free to contact me.
