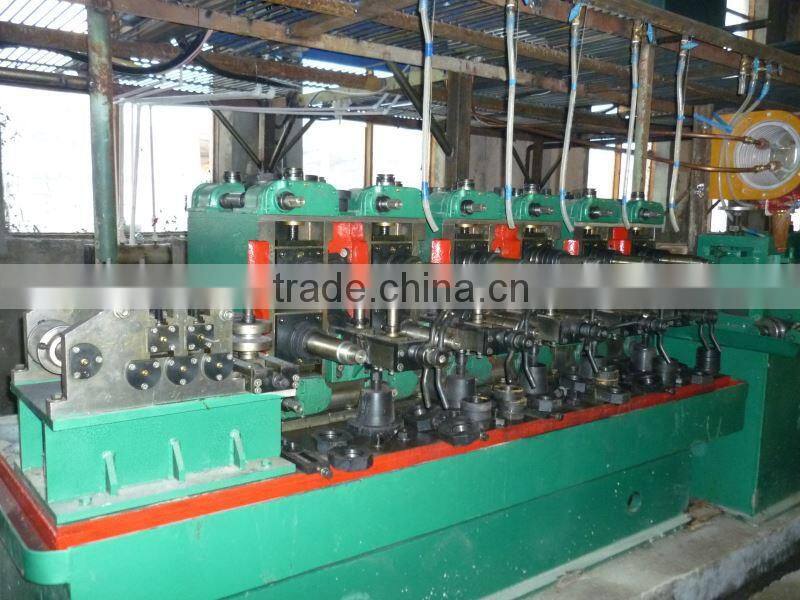

Stainless Steel welded tube for machinery
Description:
Stainless Steel welded tube for machinery is a newly developed product, which is composed of coiler car,decoiler, peeler and straightener, pinch and leveling machine, side guide unit, end shear and butt-welding machine, edge miller, plate cleaning unit (optional), main drive, pre-bend unit, forming machine, internal welding unit, external welding unit,cut off unit.
High frequency welding is also called high frequency induction heating. It is the use of 10-500KHz high frequency current flowing through the metal connecting surface resistance heat and applied(or not applying) pressure in order to reach a welding method of metal binding.
Now we have three types weld pipe mills for you to choose, HG32, HG50, HG76 and HG127. Please choose the proper machine according to the wall thickness and diameter you need to make:
Stainless Steel welded tube for machinery features:
1.Take continuous production,there is no need to change the rollers in rough-forming section.
2.The quality mill is reliable in the welding seam technology.
3.The pipe produced by welded pipe mill covers most ss pipes which are currently used by build
construction.
4.Straight seam welded pipe mill shares outstanding advantages such as low production cost and high
production capacity.
Main technical parameters:
Manual decoiler il inner diameter:450-550mm
coil max width:300mm 3.max carrying capacity: 1500kg
Usage:It is used to support the steel coil and uncoil it in a turnable way. Passive uncoil pulled by roll forming system
Usage:Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.
1.Shaft material & rollers material & shaft diameter45# steel adjustable treatment; 45# steel, polished, plate of chrome 0.05mm; 60mm
2. power: 101kw
3. Transport; Motor; chain drive
4. Forming speed; 20m/min
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62
2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine.
Check how welded pipe works from the following pictures:
Working flow in chart:

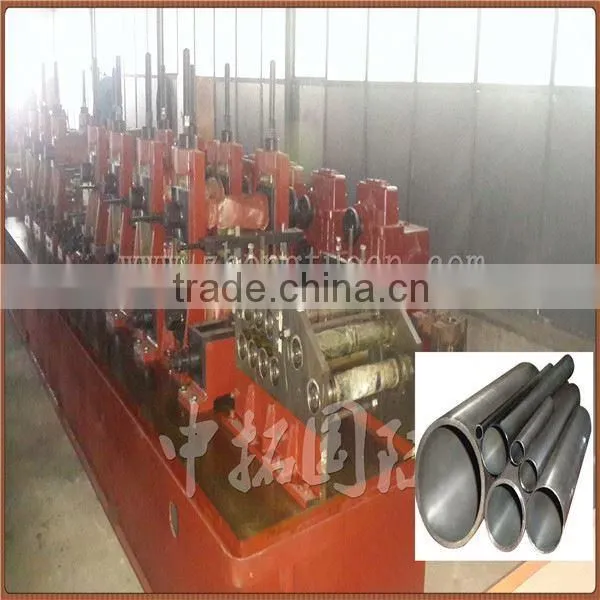

Working flow in pictures:
Straight welded pipe mills package Wiped Anti Rust Oil, Rollers and Shafters covered by waterproof film,Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.
Warranty
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas
and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
