Specifications
1.high efficiency,lower cost2.reliable working
3.low energy consumption

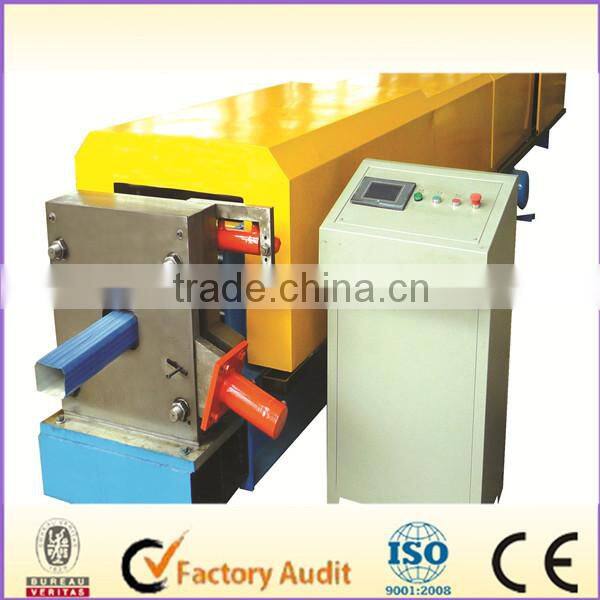

Square rain pipe roll forming machine
Main components: Manual uncoiler, Roll forming machine, computer control system, hydraulic control
system, cutting system
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel
building manufacturing, and have features such as nice appearance and durable.
No. |
Main parameter of steel pipe roll forming machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
As customer need |
3 |
Thickness of the plate |
0.5-0.8mm |
4 |
De-coiler |
Manual one, can load 3 tons raw material |
5 |
Rollers for forming |
19 rows |
6 |
Diameter of the roller |
Φ60mm |
7 |
Rolling material |
Carbon Steel 45# |
8 |
Main motor power |
4kw |
9 |
Productivity |
8-10m/min |
10 |
Cutting method |
mold cutting |
11 |
Material of the cutting blade |
Cr12 |
12 |
Hydraulic cutting power |
3kw |
13 |
Processing precision |
Within 2.00mm |
14 |
Control system |
Panasonic PLC control |
15 |
Main structure of the machine |
300 H steel |
16 |
Weight |
About 7.5T |
17 |
Dimensions |
17*1.2*1.4m |
18 |
Voltage |
380V 50Hz 3phases(changeable as needs) |
Warranty: 1 year and life-long maintainance
*Installation and debugging: We will send professional engineer to make installation and debugging,
Buyer pay our engineer each one 50 USD/day, and provide accommodation, food and the round-trip
ticket fee.
* Installation Days: about 5-7 days
