Help CenterSoft Take off Rotary Damper for Washer Cover EBO-020
Related Products
-
Soft Closing Rotary Damper for Toilet Seat EBO-002US$ 0.01 - 0.02MOQ: 5000 Sets -
Soft Closing Rotary Damper for Toilet Seat Lid EBO-001US$ 0.01 - 0.02MOQ: 5000 Sets
-
Soft Closing Adjustable Rotary Damper for Toilet Seat Lid EBO-013US$ 0.01 - 0.02MOQ: 5000 Sets
-
Soft Closing Rotary Damper Forauto-sensor Toilet Seat EBO-007US$ 0.01 - 0.02MOQ: 5000 Sets
-
Soft Close Silicone Oil Toilet Lid Rotary Damper EBO-018 Quality Choice Most PopularUS$ 0.01 - 0.02MOQ: 500 Sets

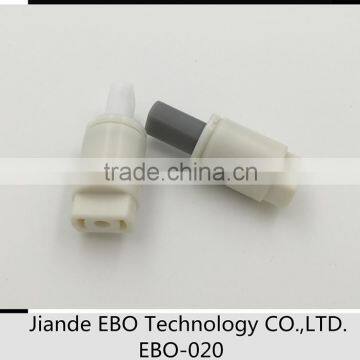

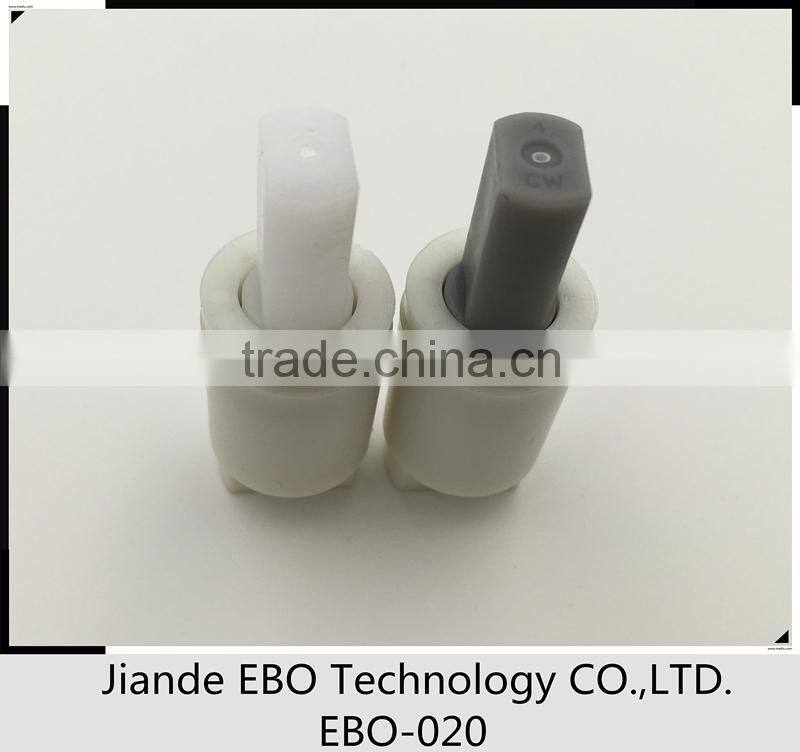

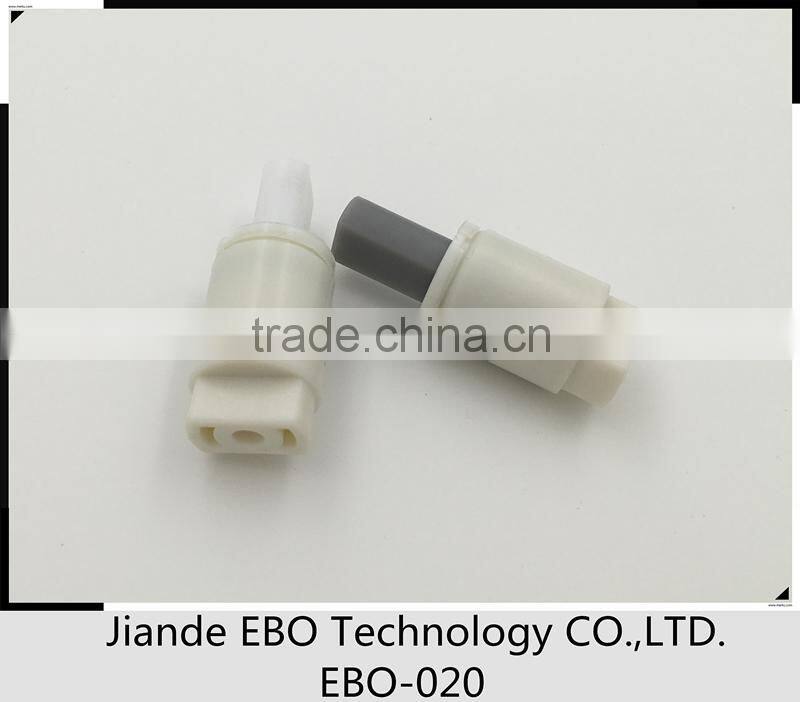

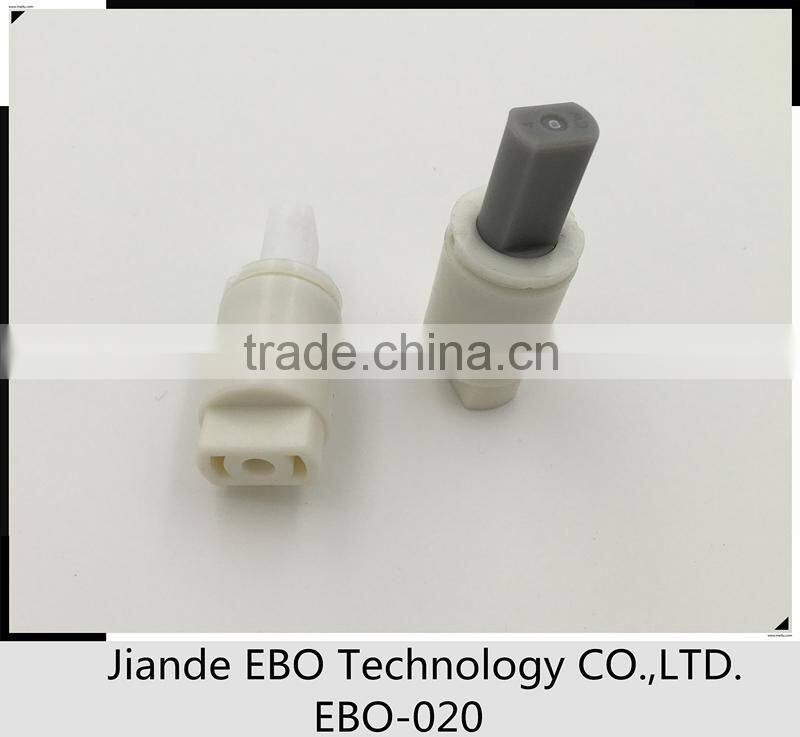

1.Product picture
2.Product description
| Product name:soft take off rotary damper for washer cover EBO-020 | ||
|
a.Materials
|
1.Body | PBT |
| 2.Cap | PBT | |
| 3.Shaft | POM | |
| 4.Vane | POM | |
| b.Description | Torsion | 0-3N/m,adjust the size according to your demand |
| Durable rotation | Over 100,000 times | |
| Biggest action angle | 115°→ -5°,open to 30°free falling have resistance | |
| Soft closing performance | 115°→70°fast,70°→30°medium,30°→0°slow smooth falling and without noisy | |
| Maximum useful frequency | 30 cycle/minute | |
| c.Parameter | Patent NO. | ZL201220027709.7,201210019135.3 |
| Damping oil | Dimethyl silicone oil | |
| Weight | 28±2 g | |
| Direction | CW & CCW | |

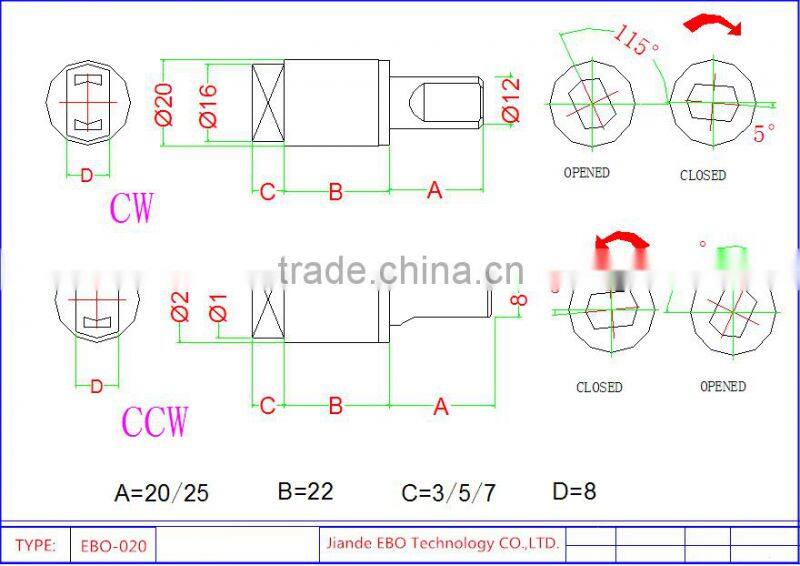

3.Dimension Figure
4.Tested result
Testing machine |
self-research equipment |
|

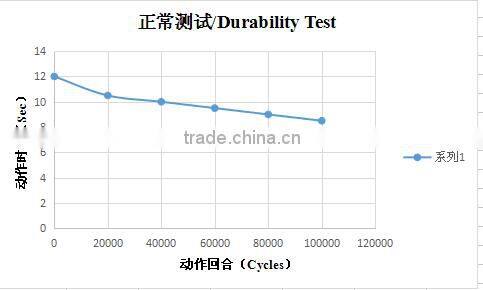

A.Durability Test
Tested method:Opening up in 1″,free falling when closing. Tested speed:5 cycle/minute Tested ambient:23℃±2℃, Tested torsion:2N/m
|
|
|

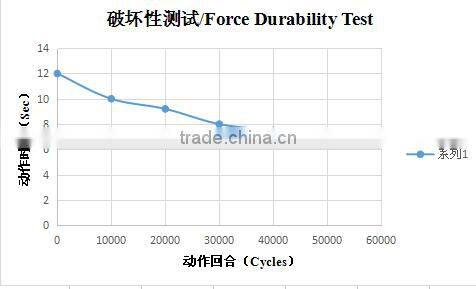

B.Force Durability Test:
Tested method:open up in 1″,close in 1″ Tested angle:100°→0° Tested speed:30 cycle/minute Tested ambient:23℃±2℃ Tested torsion:2N/m
|
|
|

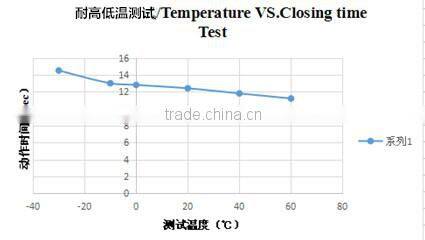

C.Temperature VS. Closing time test:
Temperature characteristic: On the condition of temperature 23℃,time was 12″ and test torsion was 2N/m,the test results obtained as below: when temperature decline the time increased and temperature rise the time reduced. Low temperature rate of change is 20%,high temperature rate of change is 10%.
|
|
Packing:Carton,standard export packing.For details,depending on your demand.
Shipping: our mass production are mainly send by sea or air from Shanghai and Ningbo Port.

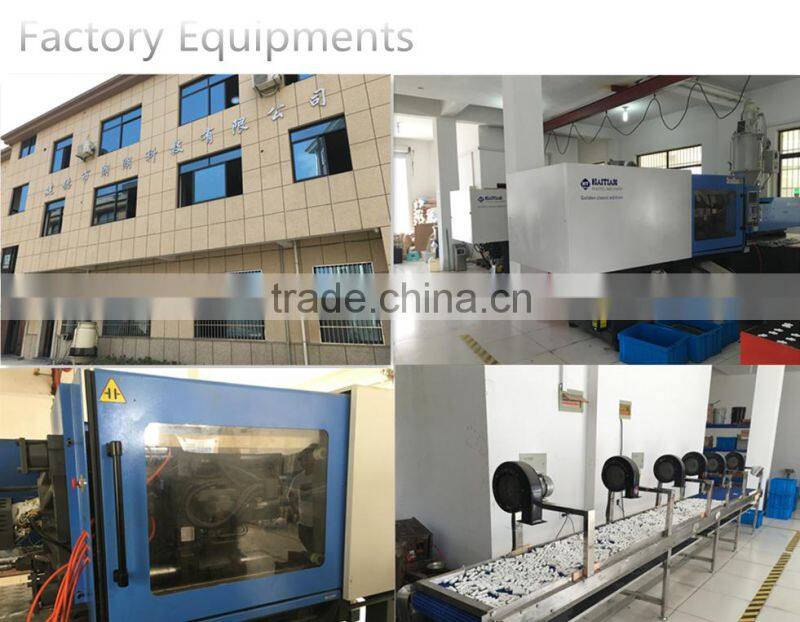

1. Factory Image
Jiande EBO technology CO.,LTD founded in 2009,specialized in professional research and production of rotary damper. We have a professional design team,progressive production equipment and manufacturing technology,precision testing procedures and strict scientific quality management system .Products are mainly used in toilet cover, washing machine cover, car interiors, household appliances, household furniture, theater seats and sanitary ware and other fields.
We are the leader of rotary damper industry and won several National Patents. Every products under a rigorous testing and every product line under a strict checking. Our product structure movement in the soft, quite and safe, moderate impact load, to avoid impact damage, increase mechanical lift, reduce noise, improve the quality of goods. Products are exported to Germany, the United States ,France, South America and other regions. The mainly customer including of BEMIS, Wirquin and ect.
2..Damper certification
1.We are professional manufacturer and our produces have been accepted by internationally well- known enterprises.
2.We are honored to offer you samples.
3.Sepcial service: We can design the products according to your specific need( Product life span, use environment, resistance range,opening time, torque, parameter, intensity and other specific requirements)
Please feel free to contact me for more details of our products.
Name:Coco Wu
Skype:cocowoo_wu
Mobile:+86-18667038948
