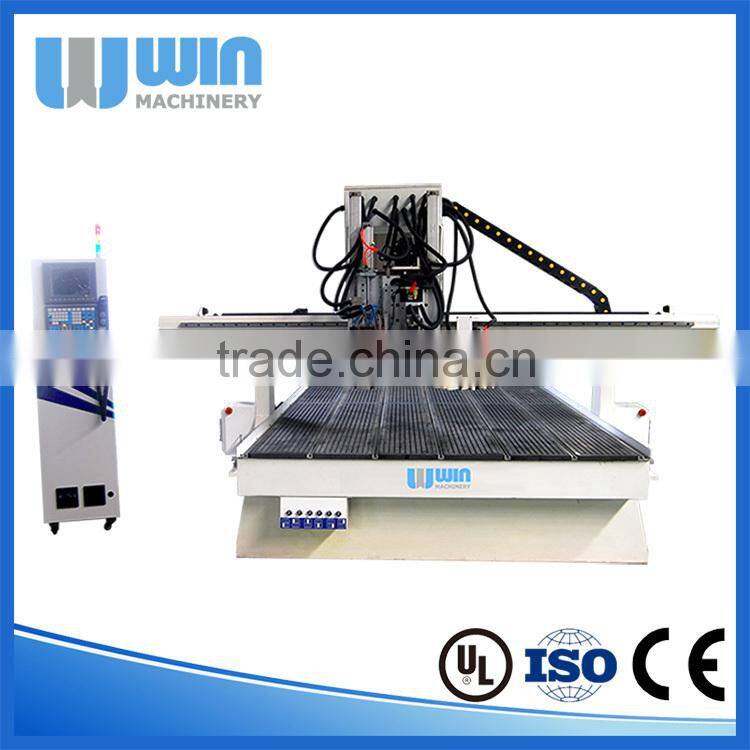

High Efficiency and Low Cost ATC2040C Wood CNC Router Prices
1. Overview
1) For engraving, drilling and cutting hard wood, rosewood, insulation, plastic and chemical, PCB, PP, PE, PVC, MDF, acrylic, aluminium, brass and so on.
2) It is equip with HSD ATC spindle and carrousel tool magazine with eight forks to change tools automatically.
3) HSD boring unit with 9 vertical and 2 horizontal drilling bits, 2 band saws is very suitable for drilling and cutting.
4) The machine is qualified for mass- producing of furniture with the vacuum holding way and dust collector.
2. Top Quality Components
1) Big steel tube structure, so the machine’s body is strong, reliable and durable. It is with large bearing capacity and long working life.
2) Top-quality components, to make the machine high-precision and high-efficiency. HSD ATC spindle, Delta inverter, TBI ball screw, Yaskawa servo motors, Syntec control system and so on, which keep the machine in best condition even after working for many years.
3) Carrousel Tool Magazine system with 8 forks and 4 tool holders , which is loaded with the guntry and can make the machine change tools quickly and save time.
4) Humanized and beautiful designing. Breakpoint specific memory to keep the carving status when power off, processing time for cast and other functions in case of the accidental power outage. Emergency stop buttons, emergent shutdown during unexpected accidents and do no harm to human. Colorful machines’ appearances and high-quality paint make the machine beautiful.
5) Many optional configuration and OEM service available. According to your different requirement, configurations will be offered. OEM service is available for you.
3. Applications
3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Musical Instruments and More.
4. Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
5. Performance Parameter
Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 2000mmx4000mmx300mm |
| 2 | Table Size | 2010mm×4040mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03mm/300mm |
| 4 | X,Y,Z repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot Combined |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 5.5Kw |
| 10 | Max. Rapid Travel Rate | 30000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 9.0KW |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | 850W Yaskawa Servo System |
| 15 | Working Voltage | AC380V/50/60Hz,3PH |
| 16 | Command Language | G Code |
| 17 | Operating System | Syntec Control System |
| 18 | Computer Interface | Enthernet |
| 19 | Flash Memory | 256M |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/UcancameV9 Software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 5200X2300X1700mm |
| 26 | N.W. | 2450KG |
| 27 | G.W. | 2670KG |
6. Configurations
7. Packing&Delivery
8. Guarantee & After Sales Service
1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
