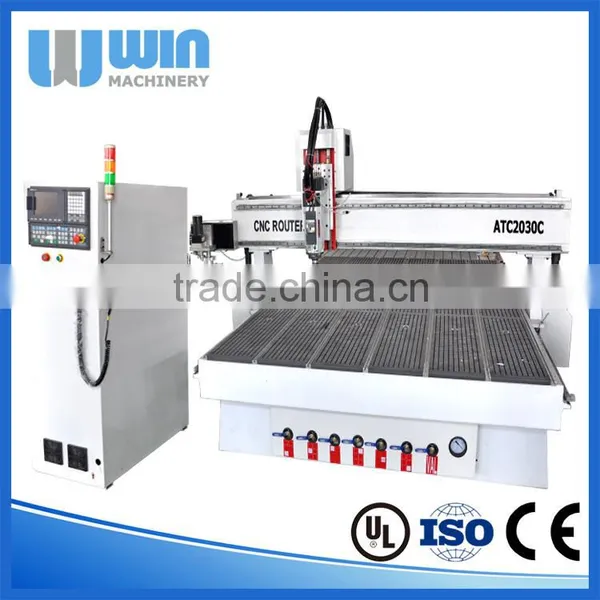

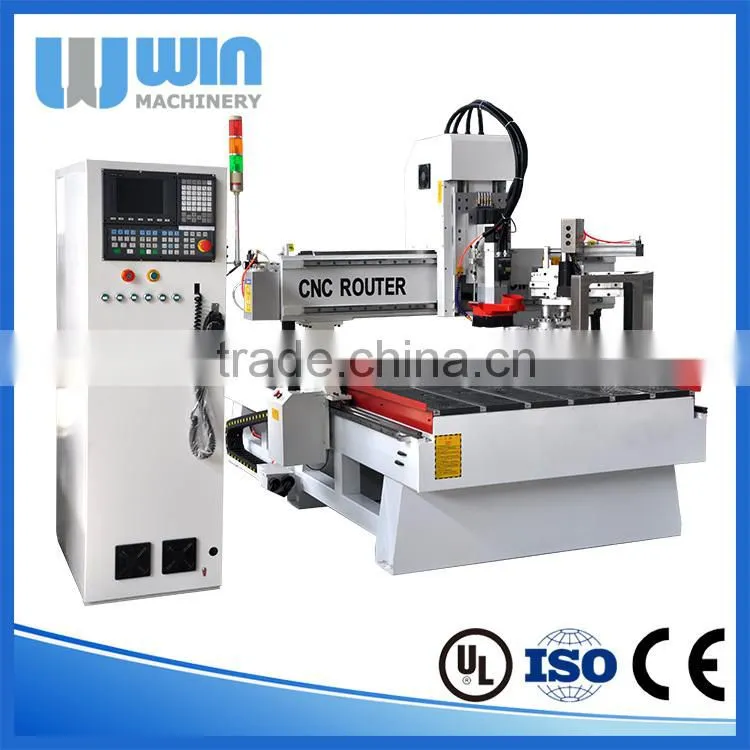

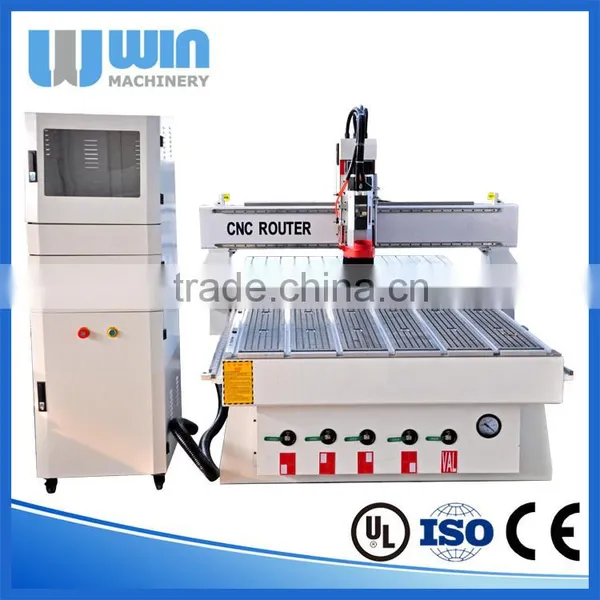

ATC1530C 3 Axis CNC Router for Guitar, Ukulele, Violin Making
1. Overview
ATC Woodworking entry-level Wood Engraving Machine standard features include a 12 HP HSD high frequency automatic tool changer spindle with an 8 Position tool holder rack(in linear type or rotary carousel type, multi-zone vacuum t-slot table combination, and material placement stops and are manufactured using global state-of-the-art techniques with all steel construction.
2. Top Quality Components
1.) Big steel tube welded structure, after aging and tempering treatment, reliable and stable and not easy to deformation.
2.) Top-quality components, HSD ATC spindle, Delta inverter, TBI ball screw, Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and efficiency.
3.) Carrousel Tool Magazine system with 8 forks and 4 tool holders , which is loaded with the spindle , make the machine change tools quickly and save time.
4.) Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.
3. Applications
3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Musical Instruments and More. Besides, it is more professional for making guitar, ukulele and Violin.
4. Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
5. Performance Parameter
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1500x3000x300mm |
| 2 | Table Size | 1530×3540mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot table) |
| 6 | Frame | Welded structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 4.5kw |
| 10 | Max. Rapid Travel Rate | 45000mm/min |
| 11 | Max. Working Speed | 30000mm/min |
| 12 | Spindle Power | 9.0KW |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Yaskawa servo |
| 15 | Working Voltage | AC 380V/50/60Hz,3PH |
| 16 | Command Language | G Code |
| 17 | Operating System | Syntec Control System |
| 18 | Computer Interface | Enthernet |
| 19 | Flash Memory | 256M |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 4250x2250x2100mm |
| 26 | N.W. | 1990KG |
| 27 | G.W. | 2380KG |
| 28 | Optional Parts | 3.8KW HSD Auto Spindle |
| Dust Collector | ||
| Vacuum Pump | ||
| Rotary System | ||
| Mist-cooling System | ||
| HSD Boring Unit |
6. Configurations
7. Options
8. Packing&Delivery
9. Guarantee & After Sales Service
1.)The Wood Engraving Machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
10. Our Factory
11. Contact Details
1.How about the delivery time?
Normal 3axis CNC Router -within 2weeks.
ATC CNC Router -within 4weeks.
4axis CNC Router -within 50days.
5axis CNC Router -within 6months.
2.What kind of payments do you support?
T/T.L/C ,other kinds please contact with us.
3.What’s the MOQ?
For whole machine, MOQ=1.
4.Can you produce according to customer’s design?
Sure ,we are professional manufacturer ,OEM are also welcome.
5.Can you tell me your main customers?
That’s our customer’s privacy ,we should protect their information.
At the same time, please rest assured that your information is also safe here.
6.Consult
We will recommend the most suitable machine to you after being informed by your requirements, such as the main jobs you wanna the machine to process, the materials you will wanna to process, the working area you want, the max cutting thickness, etc.
