Specifications
1Megranate and grape etc juice extractor( pneumatic pressing)2High juicing rate, Sweet taste.
3Auto Control. Large capacity.
Wuxi Kean Automation Equipment Co.,LTD.
Leading Company of the Fruits and Vegetables Processing Industry

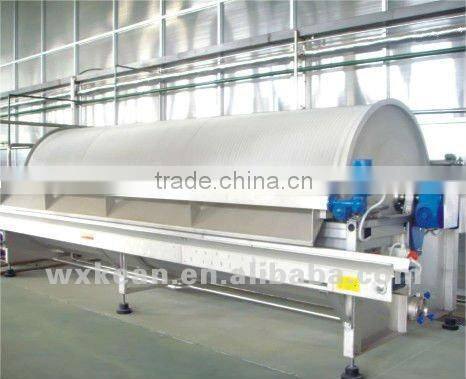

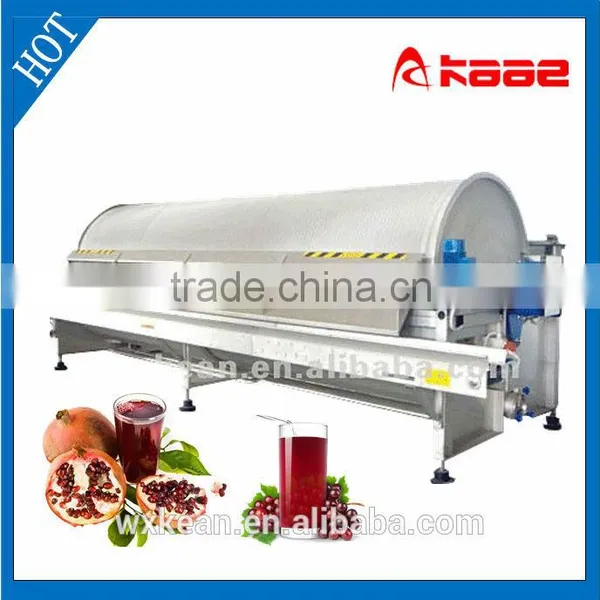

Grape juicing machine
Kaae airbag press machine - pneumatic pressing, assembled by the senior non-toxic materials manufactured tubular airbags installed in the bracket was fixed with a perforated stainless steel drum; the drum as a whole hole than ordinary juice areamore than doubled; in the juice when the air bag inflates to fill the entire surface; juice double the area than a normal juicer, juice time can greatly reduce the duty cycle and pressure can be reduced; products are divided into pancake layer,juice oozing from the screen cylinder surface (360 degrees); based on the above device characteristics, product quality is greatly enhanced; materials in the crushing process can not move for a long time; maximum pressure of 1.5 bar, and only appears briefly at the end of the production; the device is equippedseparate compressed air systems;
The work program is all controlled by PLC, can be adjusted according to the raw materials, Marc collection trough below the pressing machine, Once the juice is over, Marc collection trough below the pressing machine, Once the juice is over, Marc can be discharged, not internal slagging design, doesn't frequent clogging, cleaning easier, with a special spray piping systems and large cleaning the mouth, with stairs with maintenance.
Technical data of Grape juicing machine
Model |
KAQNZJ50 |
KAQNZJ80 |
KAQNZJ100 |
KAQNZJ160 |
KAQNZJ200 |
KAQNZJ240 |
KAQNZJ350 |
Weight(KG) |
2800 |
3500 |
3500 |
8150 |
9200 |
11000 |
12000 |
Blower power(KW) |
- |
3 |
3 |
5.5 |
5.5 |
5.5 |
11 |
Compressor power(KW) |
7.5 |
11.5(1.5*) |
15(1.5*) |
18.5* |
18.5* |
15 |
22* |
Power of drum rotating motor(KW) |
4 |
4 |
4 |
7.5 |
9 |
9 |
11 |
Total installed power(KW) |
11.5 |
7* |
7* |
13** |
14.5** |
14.5** |
22** |
Whole grapes capacity(KG) |
3500 |
5600 |
7000 |
11200 |
14000 |
17000 |
24000 |
Crushed grapes capacity(KG) |
10000/22000 |
16000/24000 |
20000/30000 |
32000/48000 |
40000/60000 |
50000/70000 |
70000/100000 |
Fermented grapes capacity(KG) |
15000/22000 |
24000/36000 |
30000/45000 |
50000/72000 |
60000/90000 |
70000/110000 |
100000/150000 |
