Smart 3Axis ATS1325W CNC Cutting Machine for Art Design

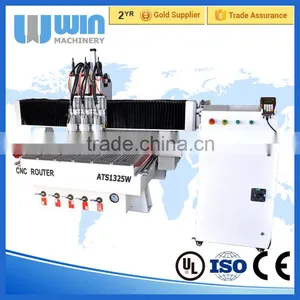

Smart 3Axis ATS1325W CNC Cutting Machine for Art Design thumbnail-1
Smart 3Axis ATS1325W CNC Cutting Machine for Art Design thumbnail-2
Smart 3Axis ATS1325W CNC Cutting Machine for Art Design thumbnail-3
Smart 3Axis ATS1325W CNC Cutting Machine for Art Design thumbnail-4
Smart 3Axis ATS1325W CNC Cutting Machine for Art Design thumbnail-5
Smart 3Axis ATS1325W CNC Cutting Machine for Art Design thumbnail-6
Smart 3Axis ATS1325W CNC Cutting Machine for Art Design photo-1
Smart 3Axis ATS1325W CNC Cutting Machine for Art Design photo-2
Smart 3Axis ATS1325W CNC Cutting Machine for Art Design photo-3
Smart 3Axis ATS1325W CNC Cutting Machine for Art Design photo-4
Smart 3Axis ATS1325W CNC Cutting Machine for Art Design photo-5
Smart 3Axis ATS1325W CNC Cutting Machine for Art Design photo-6
US$ 9,100 - 29,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
WinWin Machinery Co., Ltd.(Jinan)
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name WinWin
Model Number ATS1325W
Voltage AC380V, 50/60Hz
Power(W) 3.2KW
Dimension(L*W*H) 3750*2250*2100mm
Weight 2390KG
Certification CE, UL, ISO
Warranty 1Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

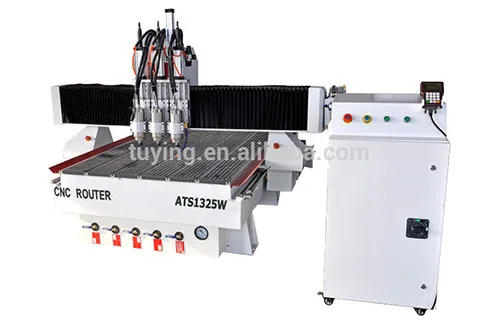

Smart 3Axis ATS1325W CNC Cutting Machine for Art Design

Overview

1.)Frame: Welded Structure, very strong and stable
2.)The international leading DSP control system
3.)The spindle can be automatically replaced, for different processing.
4.)One spindle can be rotated 90 degree for lock slot.
5.)Optional: ATS1325, ADS1325, DH1325 etc.

Advantages

1) The machine’s body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3). Well-known brands of Water-cooled brushless spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the machine’s high speed and accuracy.
5) Perfect design, top quality accessories, to minimize the machine’s failure rate.
6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

Applications

3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

Materials Cut

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Specifications for ATS1325W CNC Cutting Machine for Art Design
NO.
Description
Parameter
01
X,Y,Z Working Area
1300x2500x200mm
02
Table Size
1360×3640mm
03
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
04
X,Y,Z Repositioning Accuracy
±0.03mm
05
Table Surface
Vacuum and T-slot Combined (Option: T-slot Table)
06
Frame
Welded Structure
07
X, Y Structure
Rack and Pinion Drive, Hiwin Rail Linear Bearings
08
Z Structure
Hiwin Rail Linear Bearings and Ball Screw
09
Max. Power Consumption
(Without Spindle) 3.2Kw
10
Max. Rapid Travel Rate
33000mm/min
11
Max. Working Speed
25000mm/min
12
Spindle Power
3.0/4.5/6KW*3 pcs
13
Spindle Speed
0-24000RPM
14
Drive Motors
Stepper System
15
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V)
16
Command Language
G Code
17
Operating System
DSP System (Options: Ncstudio/Mach3 PC Software)
18
Computer Interface
USB
19
Flash Memory
128M(U Disk)
20
Collet
ER25/ER32
21
X,Y Resolution
<0.01mm
22
Software Compatibility
Type3/UcancameV9 Software (Option: Artcam software)
23
Running Environment Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%
25
Packing Size
3750X2250X2100mm
26
N.W.
1950KG
27
G.W.
2390KG
28
Optional Parts
Air Cooling Spindle or Water Cooling Spindle
Syntec Control System
Dust Collector/ Dust Hoods for three Axis
Vacuum Pump
Rotary System
Mist-cooling System
850W Yaskawa/800W Panasonic Servo Motors

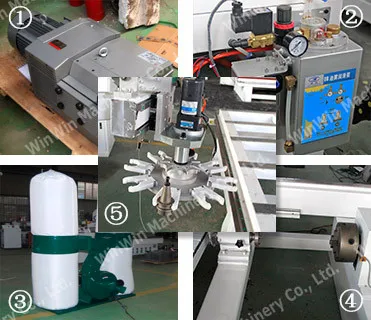

No.
Option Part
1
Vaccum Pump: holding the sheet materials.
2
Mist-cooling System: cooling down the tools durning cutting metals.
3
Dust Collector: collect the dust during machine processing.
4
Rotary: carry round materials for 4D engraving.
5
ATC Function: changing tools automatically.
Video

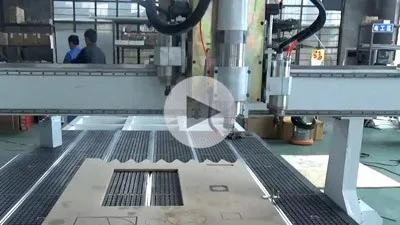

3 Spindles CNC Router

Engraving on MDF

3 Spindles CNC Router

Engraving on MDF
Detailed Images

Spindle

Brand: HSD
Original: Italy
Italian Air-cooling spindle, or top quality water-cooling
spindle.

Gantry

Original: China
Gantry thickness 8~10 mm, with the aging threatment.

Electrical Parts

Brand: Omron, Schneider, Delta.
Original: Germany, China
All electrical components, cabinet, assembling and wiring meet the standard of CE and ANSI.

Driving System

Brand: YASKAWA etc.
Original: Japan, China
Whatever stepper or servo driving system we use, all of
them are top quality with CE & CCC.

Transmation System

Brand: HIWIN, THK, TBI
Original: Taiwan, Japan
Ball screw made in Germany, rack&pinion with bigger

size, Taiwan Hiwin & Japan THK adopted.

Wire

Original: China
High flexible shielding cable, working between -75℃ to
115℃. 95% shielding scope.

Certifications
Basic Accessories
Packing & Delivery
Packaging
Size
375 (L) * 225 (W) * 210 (D)
Weight
2.39 T

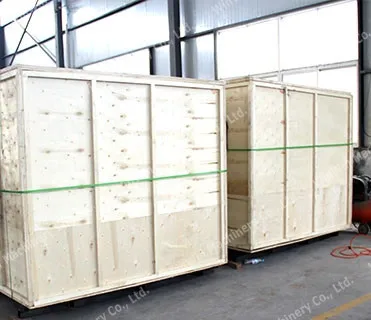

Packaging Details
The normal package is plywood box(Size: L*W*H). Delivered with in 2 weeks after the payment.

Guarantee & After Sales Service

1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
