2D&3D 2000*4000mm CNC Cutting Router With Heavy Structure
1. Overview
Heavy-duty designed Industry EPS CNC Cutting Router for mold industry production available in either single or dual machine heads. The Routers features • Precision ball scree drives • Rack and pinion transmission • Italian ATC spindle• World renown HIWIN bearings • Windows® based easy-to-learn and use G-Code Interface (multiple languages).

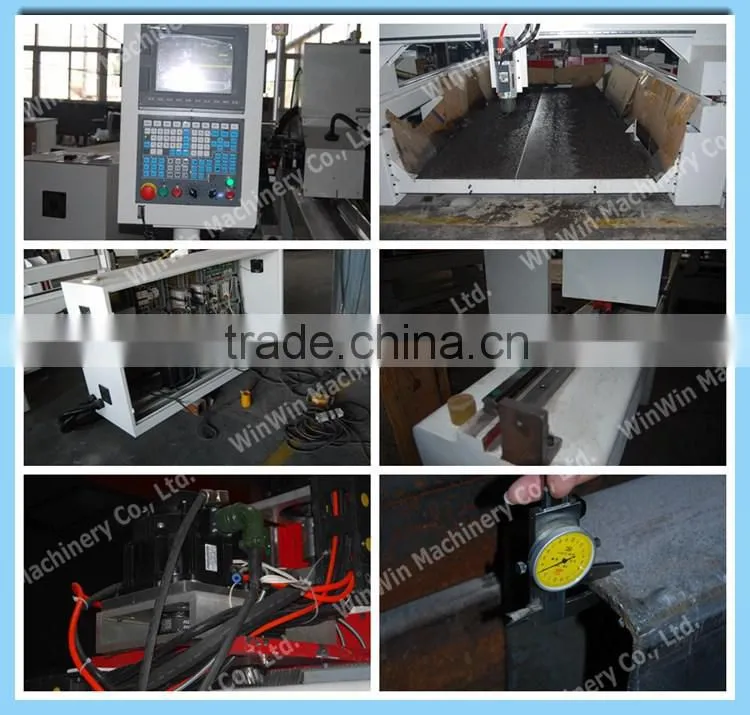

2. Top Quality Components
1.) Big steel tube welded structure, after aging and tempering treatment, reliable and stable and not easy to deformation.
2.) Top-quality components, HSD ATC spindle, Delta inverter, TBI ball screw, Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and efficiency.
3.) Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.
3. Applications
Mold industry: Foam processing of automotive stamping dies,, wooden model aviation, etc.
Wood, EPS and non-metallic carbon hybrid materials.
Die and mold industries:
Non-metallic mold: the machine is particularly suitable for automotive foam mold, wooden ship model, wooden model aviation, trains and other wooden mold.
Musical instrument industry:
Can carve three dimension musical instrument, contour cutting;
4. Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
5. Performance Parameter
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 2000x4000x900mm |
| 2 | Table Size | 2400×4500mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Milling steel table |
| 6 | Frame | Welded structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 6.5kw |
| 10 | Max. Rapid Travel Rate | 40000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 9.0/12.0KW |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Yaskawa servo |
| 15 | Working Voltage | AC 380V/50/60Hz,3PH |
| 16 | Command Language | G Code |
| 17 | Operating System | Syntec Control System |
| 18 | Computer Interface | Enthernet |
| 19 | Flash Memory | 512M(CF Card) |
| 20 | Collet | ISO30, ER32 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 4800x3250x2700mm |
| 26 | N.W. | 7100KG |
| 27 | G.W. | 7300KG |
| 28 | Optional Parts | HSD Spindle |
| Dust Collector | ||
| Fanuc Or Osai control system | ||
| Rotary System | ||
| Mist-cooling System | ||
| Fanuc Servo Motors |
6. Configurations
7. Options
8. Packing&Delivery
9. Guarantee & After Sales Service
1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
