Steel roofing glazing roll forming machine advanced roofing sheet metal
Roofing glazing roll forming machine has the same function to make roofing sheet. But different with the normal quality machine, it can use more than 10 years and has highly working speed. When machine working, it is fully automatic. It has independent stand as frame, machine frame thickness is thicker than 25mm. All the elements of the machine are world famous. Machine mould and shaft all use the best material, even if after long time using, it also can keep perfect shape.

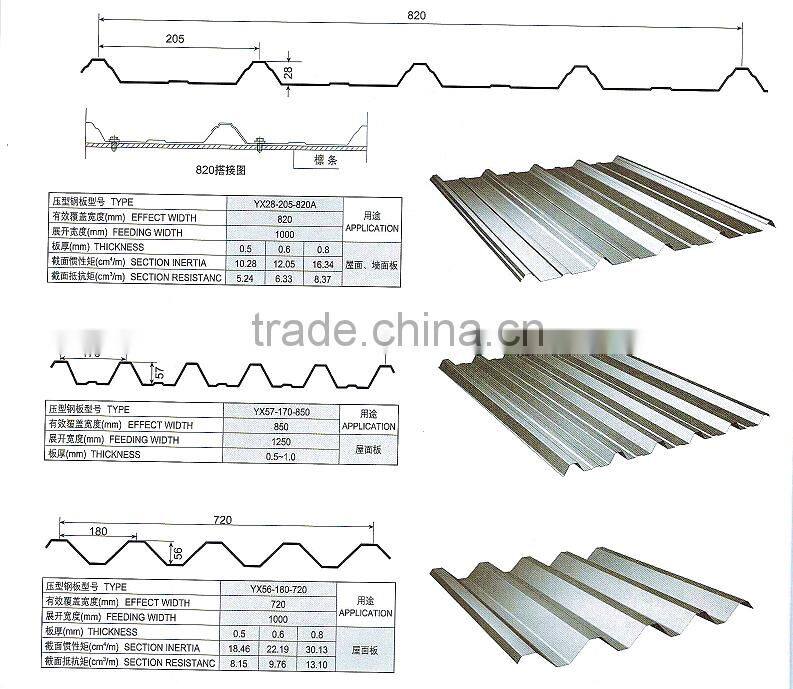

Some drawing profile of IBR sheet for reference:
Working Process of Roofing glazing roll forming machine :
Uncoiling→ Feeding material into machine→ Roll forming→ Measuring length→ Step formed→ Auto cutting→ Products receiving
Main parameters of Roofing glazing roll forming machine:
1 |
Length of the main part |
About9500*1650*1500mm |
2 |
Weight of main part |
About 6.8 Ton |
3 |
Voltage |
380V/50HZ3Phase (as customer’s request) |
4 |
Roller fixer |
Middle plate welded |
5 |
Frame |
Guide pillar and the thickness is 50mm |
6 |
Frame thickness |
25mm |
7 |
Drive mode |
Gear |
8 |
Material of rollers |
45# steel, surface hard chromium plating. |
9 |
Material of shafts |
45# steel |
10 |
Diameter of shafts |
Φ90mm Solid shafts |
11 |
Number of rollers |
16 rollers |
14 |
Main power |
11kw(Simon motor ) |
15 |
Text screen displayer |
Japan made |
17 |
Forming speed |
speed 8-22m/min |
18 |
PLC Control system |
Japan Panasonic PLC |
19 |
Hydraulic power |
5.5KW |
20 |
Gear box |
China famous brand |
21 |
Chain |
1.25 |
22 |
Delivery time |
30 working days after receiving the deposit |
