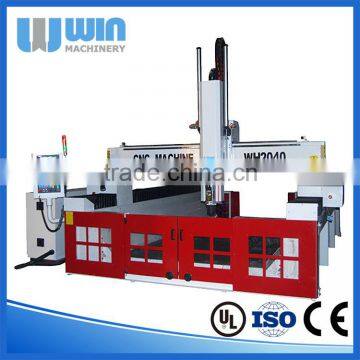

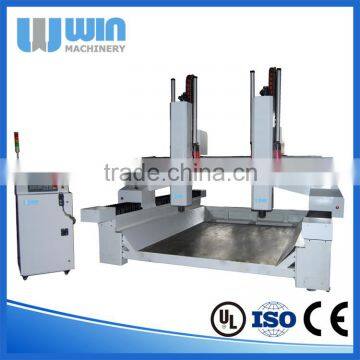

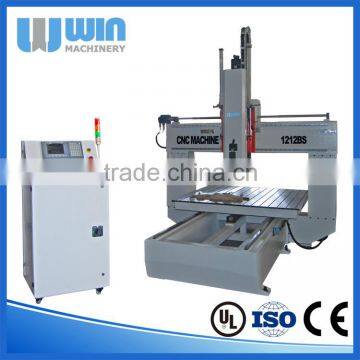

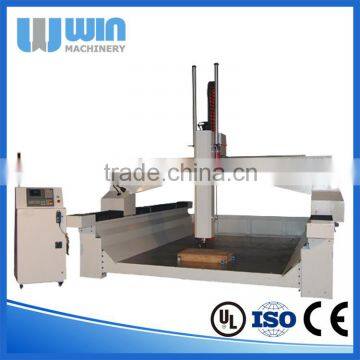

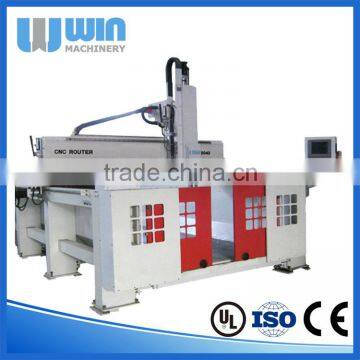

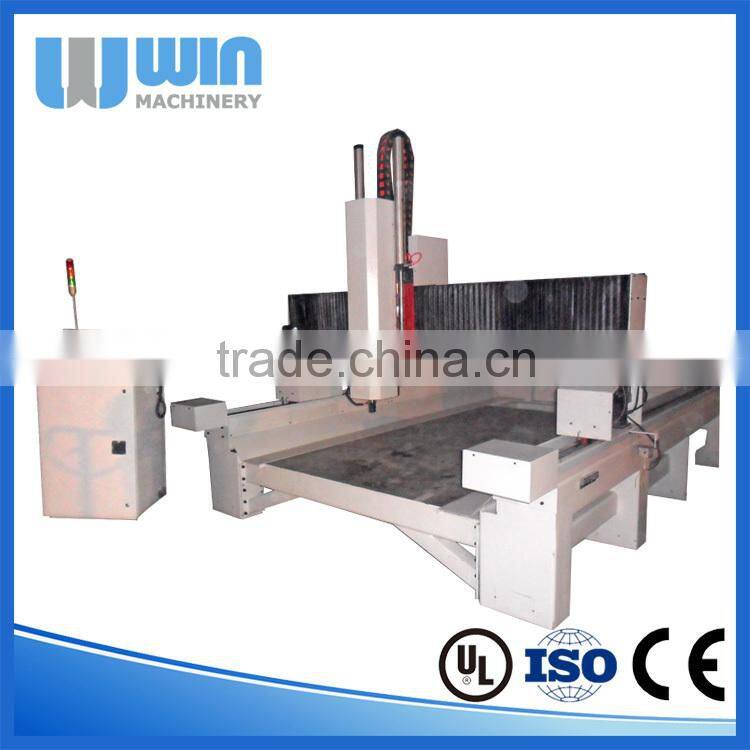

Smart 3Axis EPS Machinery Styrofoam Machine
1. Overview
Heavy-duty designed Industr EPS CNC Routers for mold industry production available in either single or dual machine heads. The Routers features • Precision ball scree drives • Rack and pinion transmission • Italian ATC spindle• World renown HIWIN bearings • Windows® based easy-to-learn and use G-Code Interface (multiple languages).
2. Top Quality Components
1.) Big steel tube welded structure, after aging and tempering treatment, reliable and stable and not easy to deformation.
2.) Top-quality components, HSD ATC spindle, Delta inverter, TBI ball screw, Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and efficiency.
3.) Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.
3. Applications
Mold industry: Foam processing of automotive stamping dies,, wooden model aviation, etc.
4. Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
5. Performance Parameter
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x700mm |
| 2 | Table Size | 1500×3040mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot table) |
| 6 | Frame | Welded structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 4.5kw |
| 10 | Max. Rapid Travel Rate | 40000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 7.0KW |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Yaskawa servo |
| 15 | Working Voltage | AC 380V/50/60Hz,3PH |
| 16 | Command Language | G Code |
| 17 | Operating System | Syntec Control System |
| 18 | Computer Interface | Enthernet |
| 19 | Flash Memory | 512M(CF Card) |
| 20 | Collet | BT30 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/UcancameV9 software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 3750x2250x2500mm |
| 26 | N.W. | 2350KG |
| 27 | G.W. | 2500KG |
| 28 | Optional Parts | HSD Spindle |
| Dust Collector | ||
| Fanuc Or Osai control system | ||
| Rotary System | ||
| Mist-cooling System | ||
| Fanuc Servo Motors |
6. Configurations
7. Options
8. Packing&Delivery
9. Guarantee & After Sales Service
1.)The machine is guaranteed for 12 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.
